Article No. 13675
RECYFIX HICAP F 8000 up to load class F 900
Type 8300, ductile iron slotted grating SW 14 mm, KTL-coated, 1.0 m

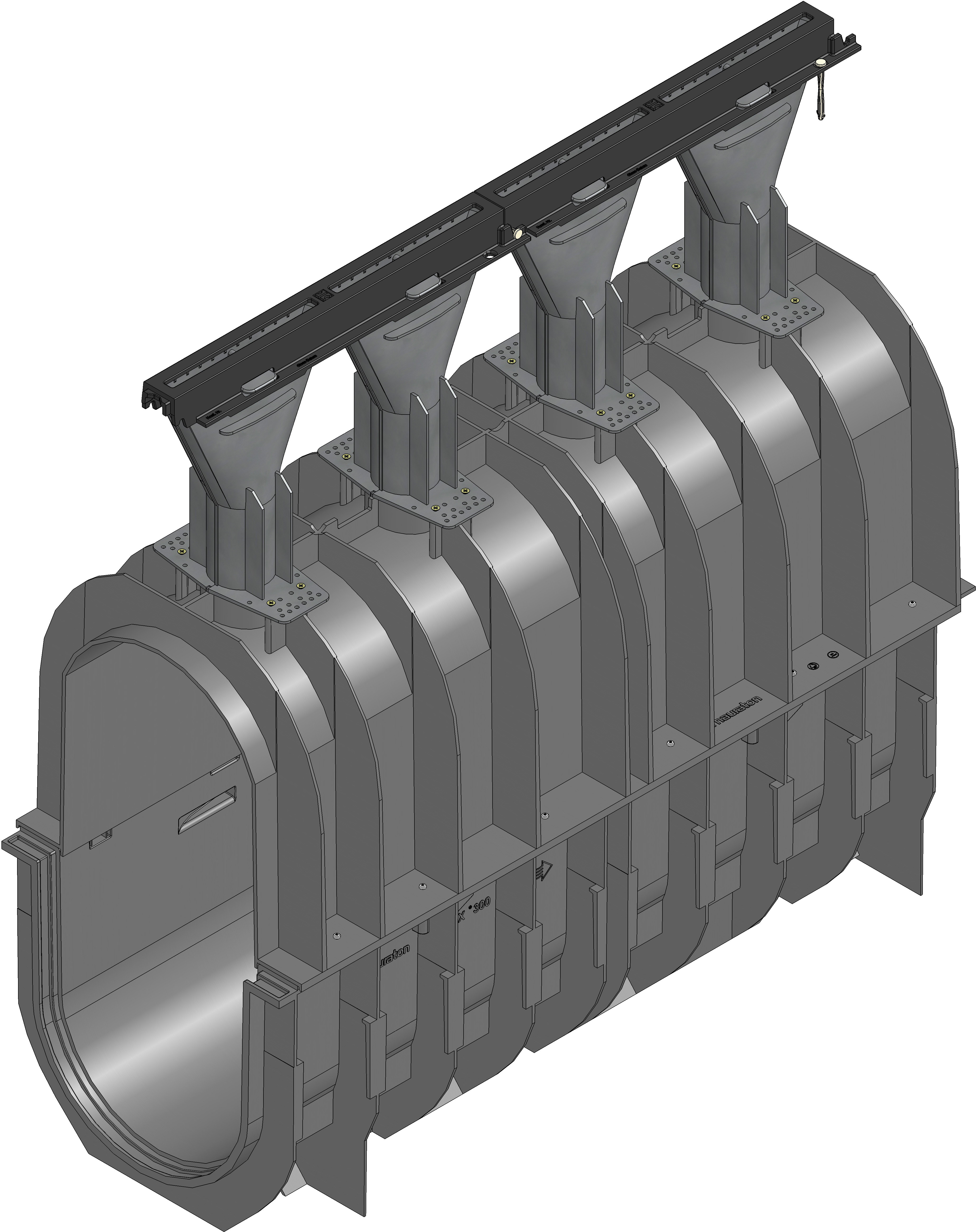

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
13675
Length
1000 mm
Width
432 mm
Height
1050 mm
Weight
23.77 kg
Material
ABS, Aluminium, Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, Polyamide, recycled, modified Polypropylene
Height of angle housing
354 mm
Intake cross-section
124.0 cm²/m
Nominal size
8000
Internal channel cross-section
1714 cm²
Fall
-
Height funnel
300 mm
Inlet opening
14 x 220 mm
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX HICAP F 8300 with ductile iron slotted grating SW 14 mm, KTL-coated, cl. F 900, 1 m
Product description
RECYFIX HICAP F 8300 consists of a closed channel body, made of recycled polypropylene, with inlet funnel, with integrated ductile iron slotted grating SW 14 mm, KTL-coated, load class A 15 - F 900 according to EN 1433, length 1000 mm, item no. 13675
Packaging unit
6
Tender Texts
Installation example
Pavement class A 15 - C 250,
Concrete class B 125 - E 600,
Asphalt class A 15 - E 600,
Asphalt class F 900,
Concrete class F 900,
Asphalt class D 400 - E 600, RECYFIX HICAP 8200 Inspection element
Concrete class D 400 - E 600, RECYFIX HICAP 8200 Inspection element
Asphalt class F 900, RECYFIX HICAP 8200 Inspection element
Asphalt class F 900, RECYFIX HICAP 8300 Inspection element
Concrete class F 900, RECYFIX HICAP 8200 Inspection element
Concrete class F 900, RECYFIX HICAP 8300 Inspection element
