Article No. 13680
RECYFIX HICAP F 8000 up to load class F 900
Type 8300, ductile iron slotted grating SW 28 mm, KTL-coated, 1.0 m

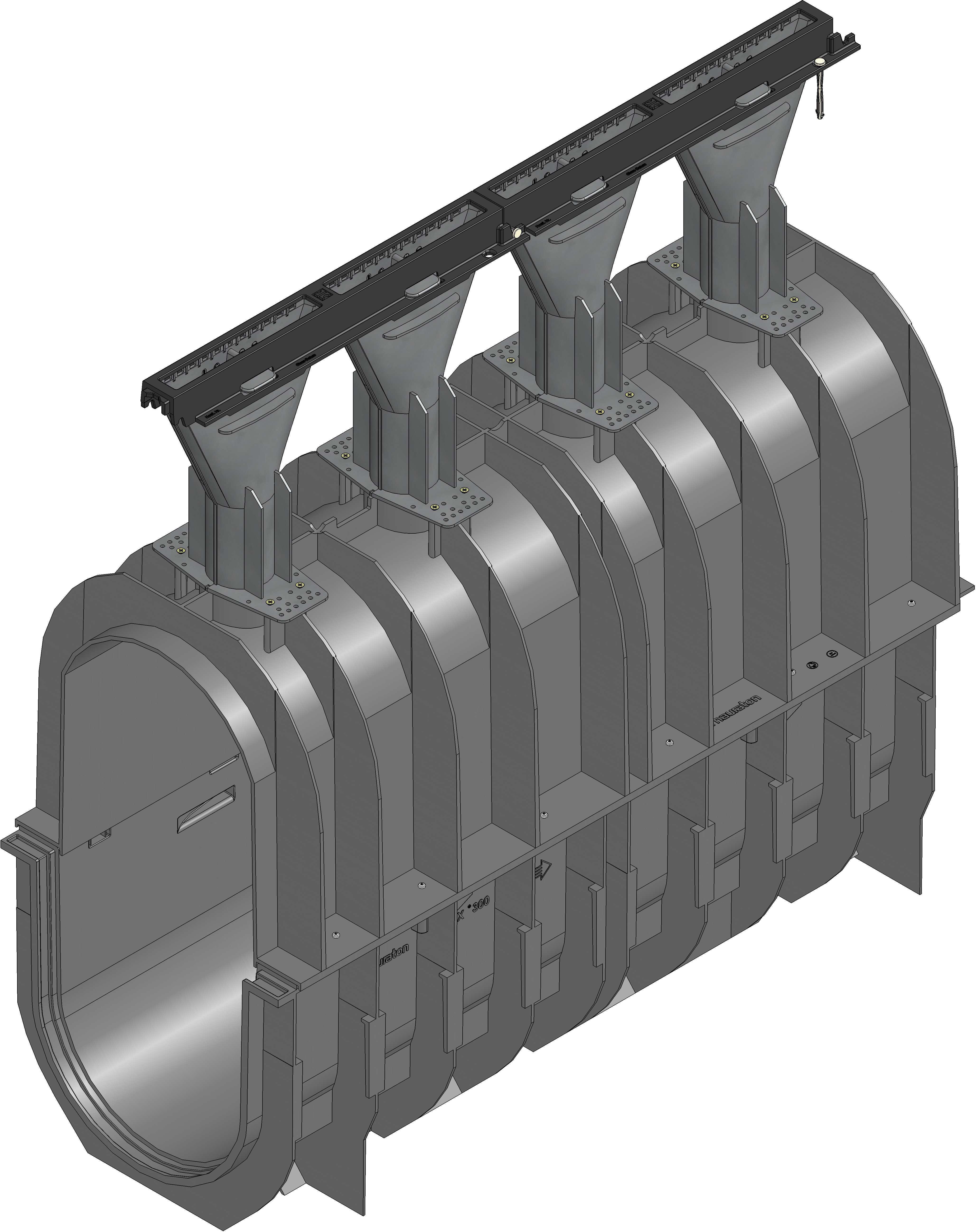

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
13680
Length
1000 mm
Width
432 mm
Height
1050 - 0 mm
Weight
22.24 kg
Material
ABS, Aluminium, Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, Polyamide
Height of angle housing
-
Intake cross-section
248.0 cm²/m
Internal channel cross-section
1714 cm²
Fall
-
Height funnel
300 mm
Inlet opening
28 x 220 mm
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX HICAP F 8300 with ductile iron slotted grating SW 28 mm, KTL-coated, cl. F 900, 1 m
Product description
RECYFIX HICAP F 8300 consists of a closed channel body, made of recycled polypropylene, with inlet funnel, with integrated ductile iron slotted grating SW 28 mm, KTL-coated, load class A 15 - F 900 according to EN 1433, length 1000 mm, item no. 13680
Packaging unit
6
Tender Texts
Installation example
Pavement class A 15 - C 250,
Concrete class B 125 - E 600,
Asphalt class A 15 - E 600,
Asphalt class F 900,
Concrete class F 900,
Asphalt class D 400 - E 600, RECYFIX HICAP 8200 Inspection element
Concrete class D 400 - E 600, RECYFIX HICAP 8200 Inspection element
Asphalt class F 900, RECYFIX HICAP 8200 Inspection element
Asphalt class F 900, RECYFIX HICAP 8300 Inspection element
Concrete class F 900, RECYFIX HICAP 8200 Inspection element
Concrete class F 900, RECYFIX HICAP 8300 Inspection element
