Article No. 36015
RECYFIX MONOTEC 100, up to class D 400
Type 380, 1.0 m

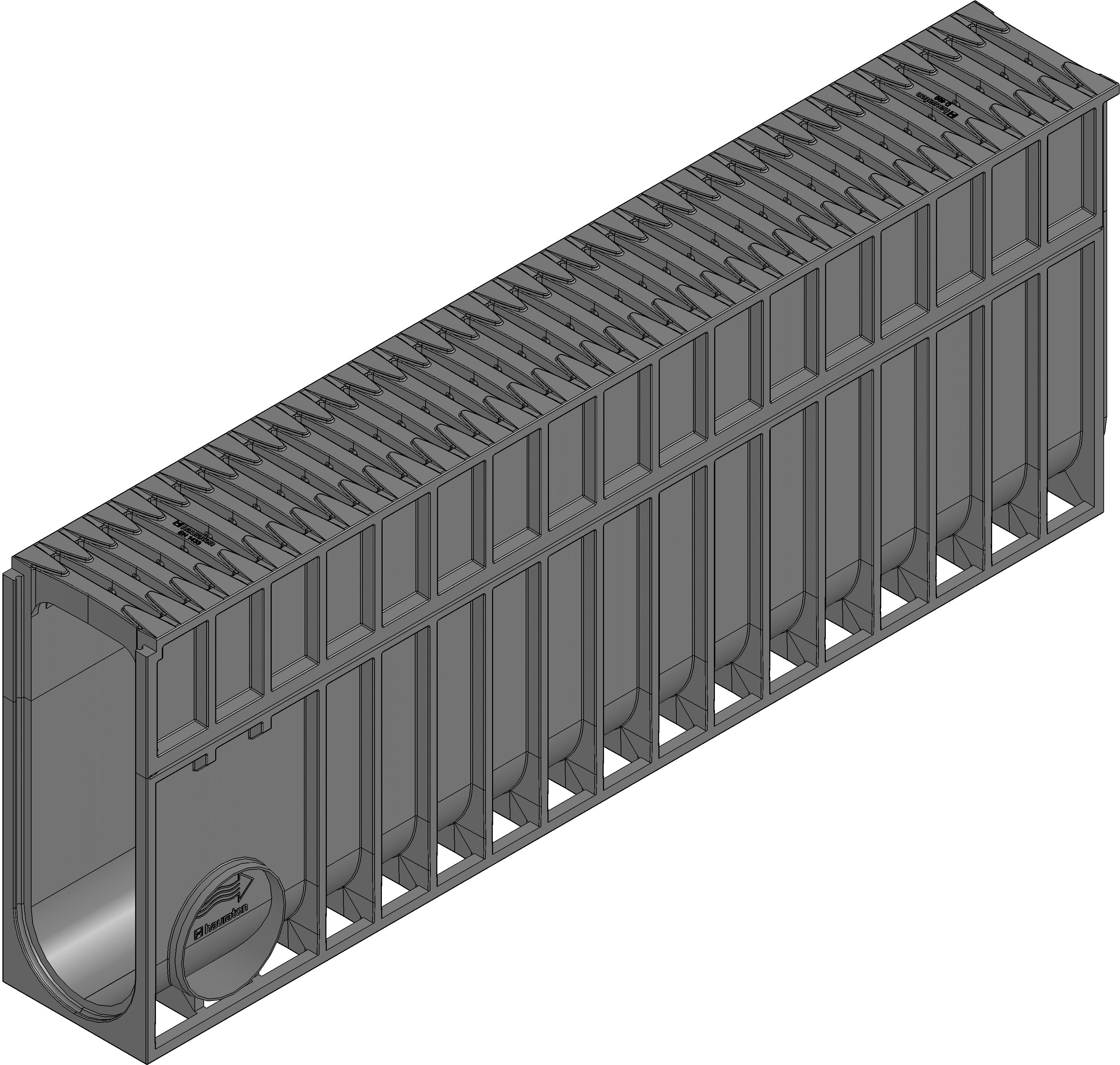

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
36015
Length
1000 mm
Width
150 mm
Height
380 mm
Weight
11.19 kg
Material
reinforced Polypropylene
Height of angle housing
28 mm
Intake cross-section
372.0 cm²/m
Nominal size
100
Internal channel cross-section
355 cm²
Fall
-
Type according to DIN EN 1433
M
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX MONOTEC 100 type 380 with permanently integrated grating in FIBRETEC design SW 110/9 mm, 1 m
Product description
RECYFIX MONOTEC 100 type 380 - Monolithic channel consists of channel body and permanently integrated grating in FIBRETEC design SW 110/9 mm, made of recycled polypropylene, black, with lateral connection possibility DN/OD 110, load class A 15 - D 400 according to EN 1433, LxWxH 1000x150x380 mm, item no. 36015
Packaging unit
23
Tender Texts

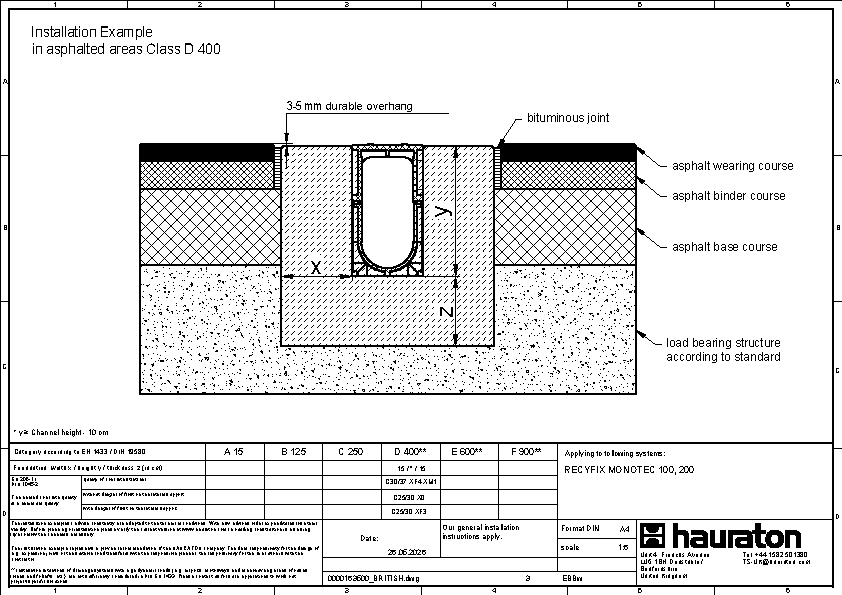

Installation example
Concrete class D 400, with high shelf
Concrete class D 400,
Pavement class D 400,

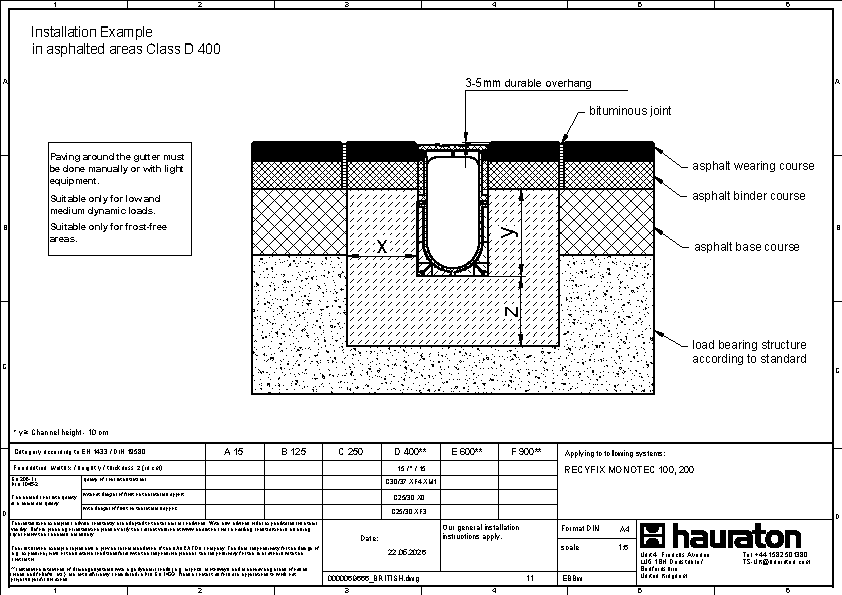

Asphalt class D 400,
Installation instructions
