Article No. 36215
RECYFIX MONOTEC 200, up to class D 400
Type 450, 1.0 m

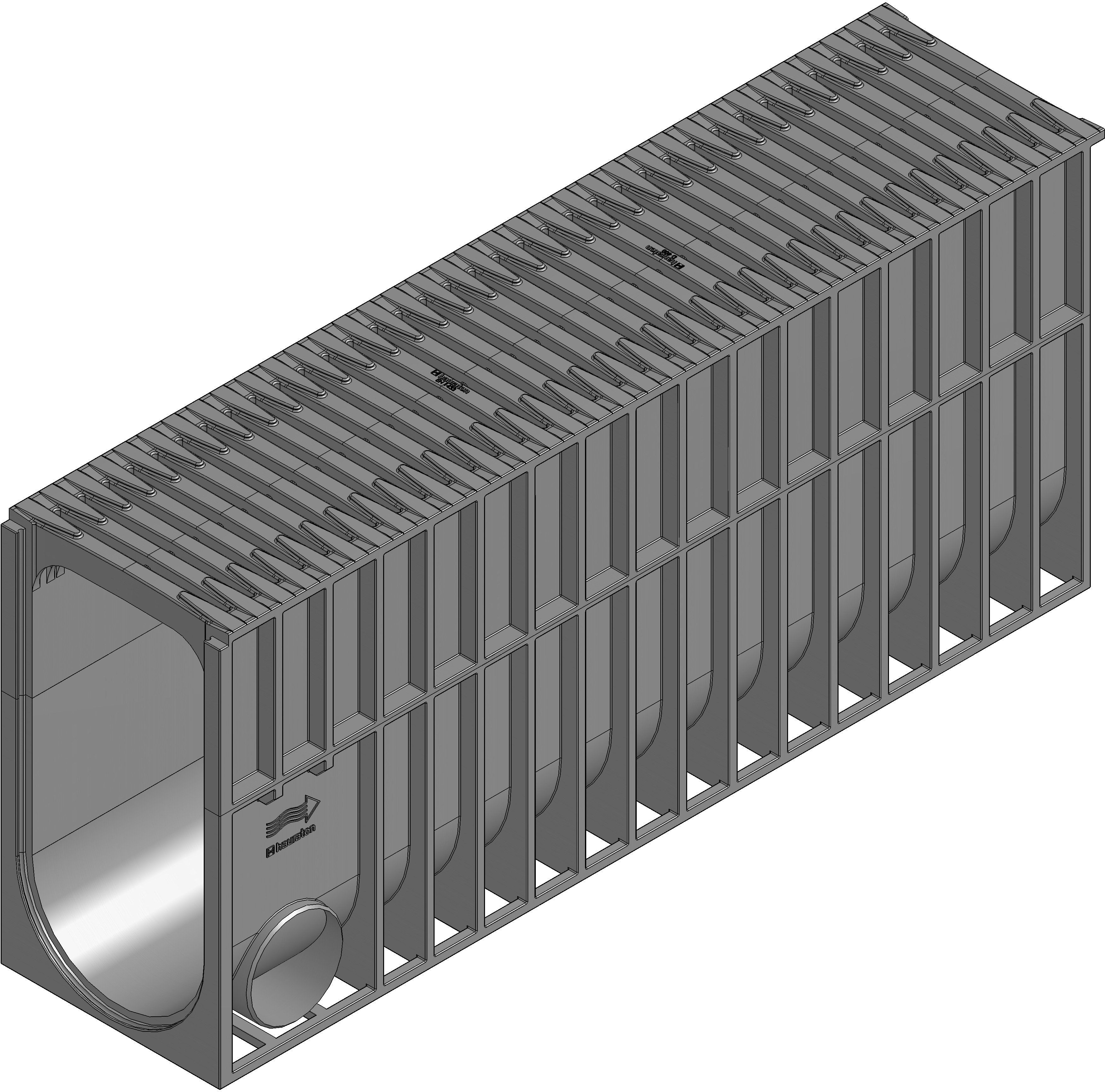

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
36215
Length
1000 mm
Width
250 mm
Height
450 mm
Weight
16.31 kg
Material
reinforced Polypropylene
Height of angle housing
34 mm
Intake cross-section
656.0 cm²/m
Nominal size
200
Internal channel cross-section
746 cm²
Fall
-
Type according to DIN EN 1433
M
Regulations
EN 1433
Sales text
RECYFIX MONOTEC 200 type 450 with permanently integrated grating in FIBRETEC design SW 200/10 mm, 1 m
Product description
RECYFIX MONOTEC 200 type 450 - Monolithic channel consists of channel body and permanently integrated grating in FIBRETEC design SW 200/10 mm, made of fibre-reinforced recycled polypropylene, black, with lateral connection possibility DN/OD 110, load class A 15 -D 400 according to EN 1433, LxWxH 1000x250x450 mm, item no. 36215
Packaging unit
20
Tender Texts
Installation example
Concrete class D 400, with high shelf
Concrete class D 400,
Pavement class D 400,
Asphalt class D 400,
Installation instructions
