Article No. 10465
RECYFIX MONOTEC ULTRA 200, up to load class F 900
Type 010, with permanently integrated ductile iron grating 2x SW 75/18 mm, black, 1.0 m

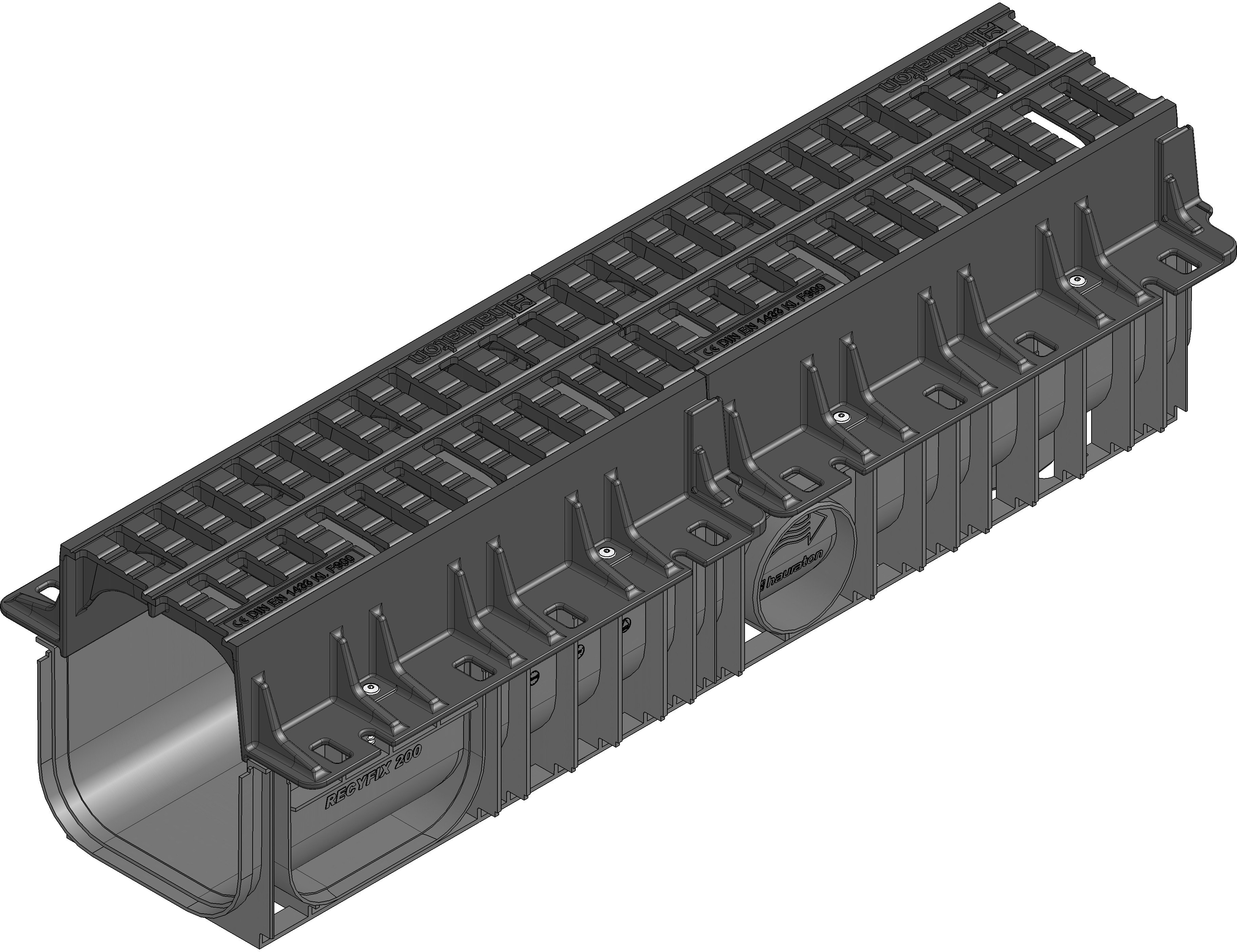

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10465
Length
1000
Width
340 mm
Height beginning
281
Height end
281
Weight
32.65 kg
Material
Ductile iron GJS 500-7, recycled polypropylene
Height of angle housing
28
Intake cross-section
590.0 cm²/m
Nominal size
200
Internal channel cross-section
410 cm²
Fall
-
Type according to DIN EN 1433
M
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX MONOTEC ULTRA 200 type 010 with permanently integrated ductile iron grating 2x SW 75/18 mm, black, cl. F 900, 1 m
Product description
RECYFIX MONOTEC ULTRA 200 type 010 - Monolithic channel, consists of channel body made of recycled polypropylene and permanently integrated ductile iron grating, made of spheroidal ductile iron EN-GJS-500-7, 2x SW 75/18 mm, black, according to EN 1433, with lateral (DN/OD 110) and vertical (DN/OD 110/160) connection possibility, load class A 15 - F 900 according to EN 1433, LxWxH 1000x340x281 mm, item no. 10465
Packaging unit
9
Tender Texts
Installation example

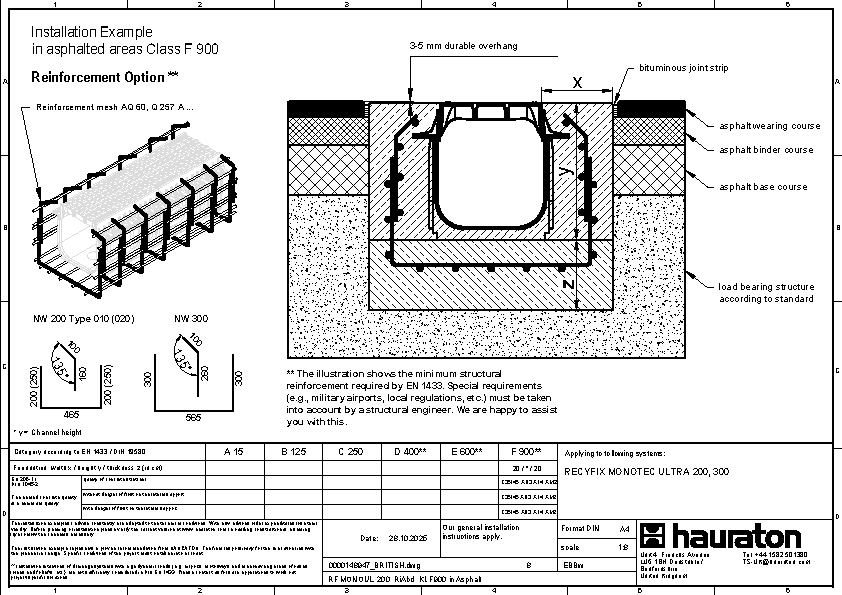

Asphalt class F 900,

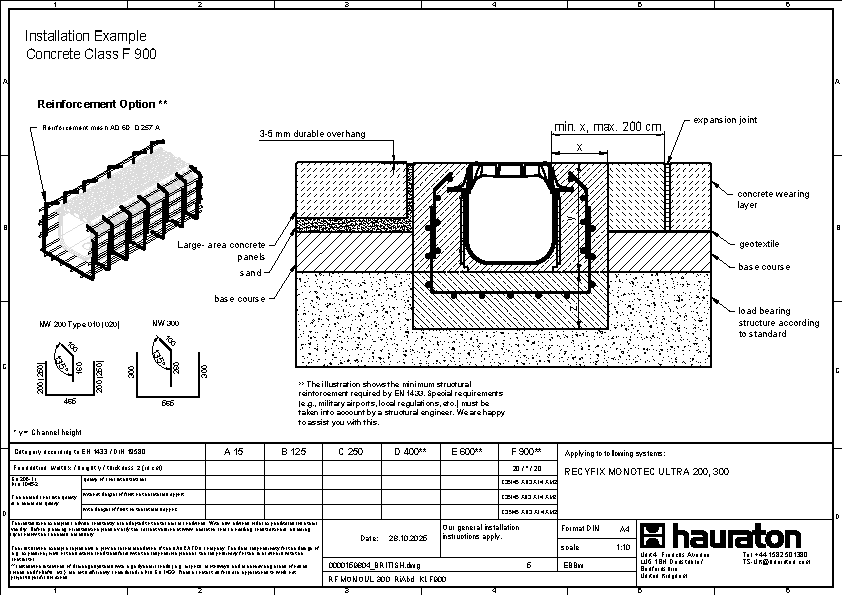

Concrete class F 900,
