Article No. 48870
RECYFIX NC 150, class E 600
Type 01 with ductile iron grating, black, SW 154/18 mm, 8-fold bolted, 1.0 m

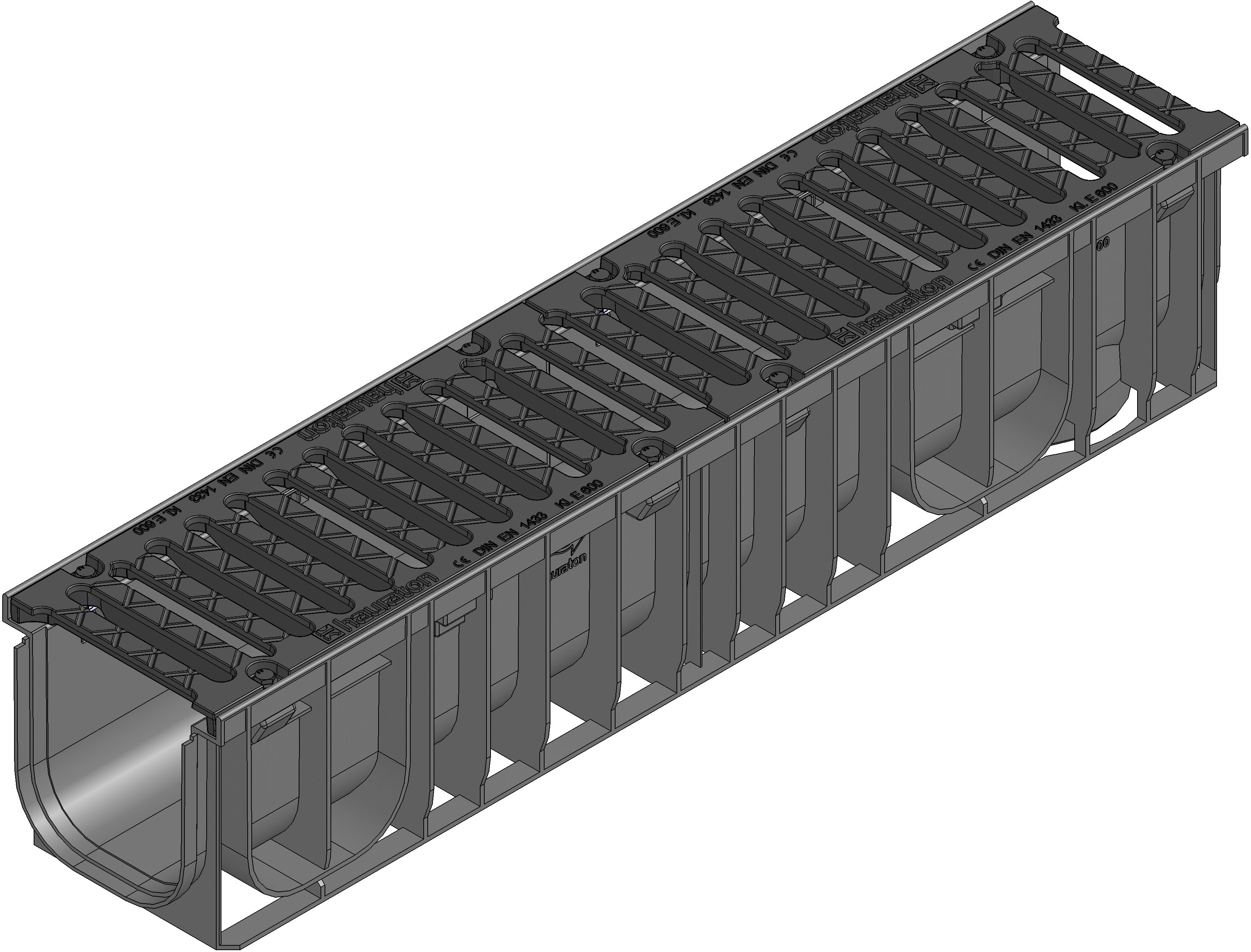

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
48870
Length
1000 mm
Width
212 mm
Height
210 mm
Inlay depth
20 mm
Weight
15.74 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
702.0 cm²/m
Nominal size
150
Internal channel cross-section
230 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX NC 150 Channel type 01 with ductile iron grating SW 154/18 mm, black, cl. E 600, 1 m
Product description
RECYFIX NC 150 type 01 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 110/160, with ductile iron grating SW 154/18 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, with 8-fold bolting, load class A 15 - E 600 according to EN 1433, LxWxH 1000x212x210 mm, item no. 48870
Packaging unit
25
Tender Texts

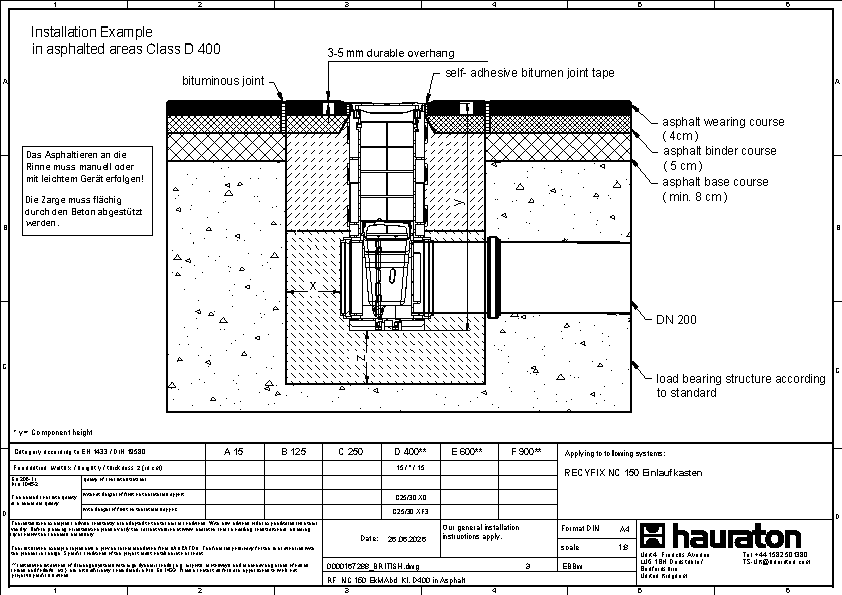

Installation example
Concrete class D 400 - E 600, channel height ≥ 150 mm
Asphalt class D 400 - E 600, channel height ≥ 150 mm
Pavement class D 400, channel height ≥ 150 mm
Concrete class D 400,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
Concrete class C 250 - D 400, as double strand
Asphalt class C 250 - D 400, as double strand
Concrete class E 600, as double strand
Installation instructions
