Article No. 49547
RECYFIX NC 200, class E 600
Type 010 with ductile iron grating, SW 204/18 mm, black, 4-fold bolted, 0.5 m

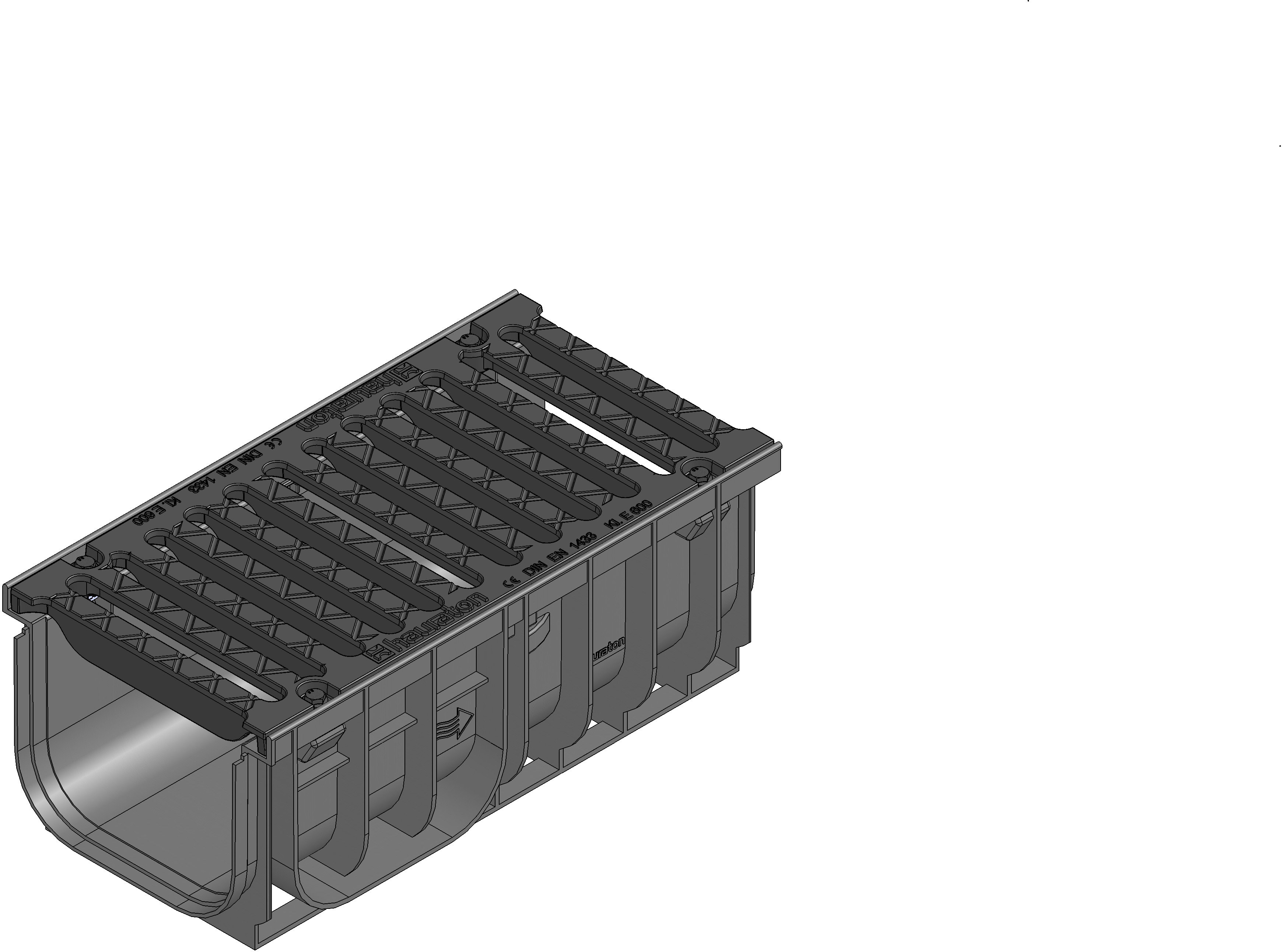

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
49547
Length
500 mm
Width
262 mm
Height
200 mm
Inlay depth
20 mm
Weight
10.38 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, Steel black galvanised
Intake cross-section
936.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, AS 4586, DIN 19580
Sales text
RECYFIX NC 200 Channel type 010 with ductile iron grating SW 204/18 mm, black, cl. E 600, 0.5 m
Product description
RECYFIX NC 200 type 010 - Channel body made of recycled polypropylene, with integrated edge frames, with ductile iron grating SW 204 /18 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, 4-fold bolting, load class A 15 - E 600 according to EN 1433, LxWxH 500x262x200 mm, item no. 49547
Packaging unit
40
Tender Texts
Installation example
Asphalt class D 400,
Concrete class D 400 - E 600, channel height ≥ 150 mm
Asphalt class D 400 - E 600, channel height ≥ 150 mm
Pavement class D 400, channel height ≥ 150 mm
Concrete class D 400, to a high curb
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
Concrete class C 250 - D 400, as double strand
Asphalt class C 250 - D 400, as double strand
Concrete class E 600, as double strand
Installation instructions
