Article No. 12151
RECYFIX NC X 200, class F 900
Type 010 with ductile iron grating 2x SW 94/14 mm, black, 8-fold bolting, 1.0 m

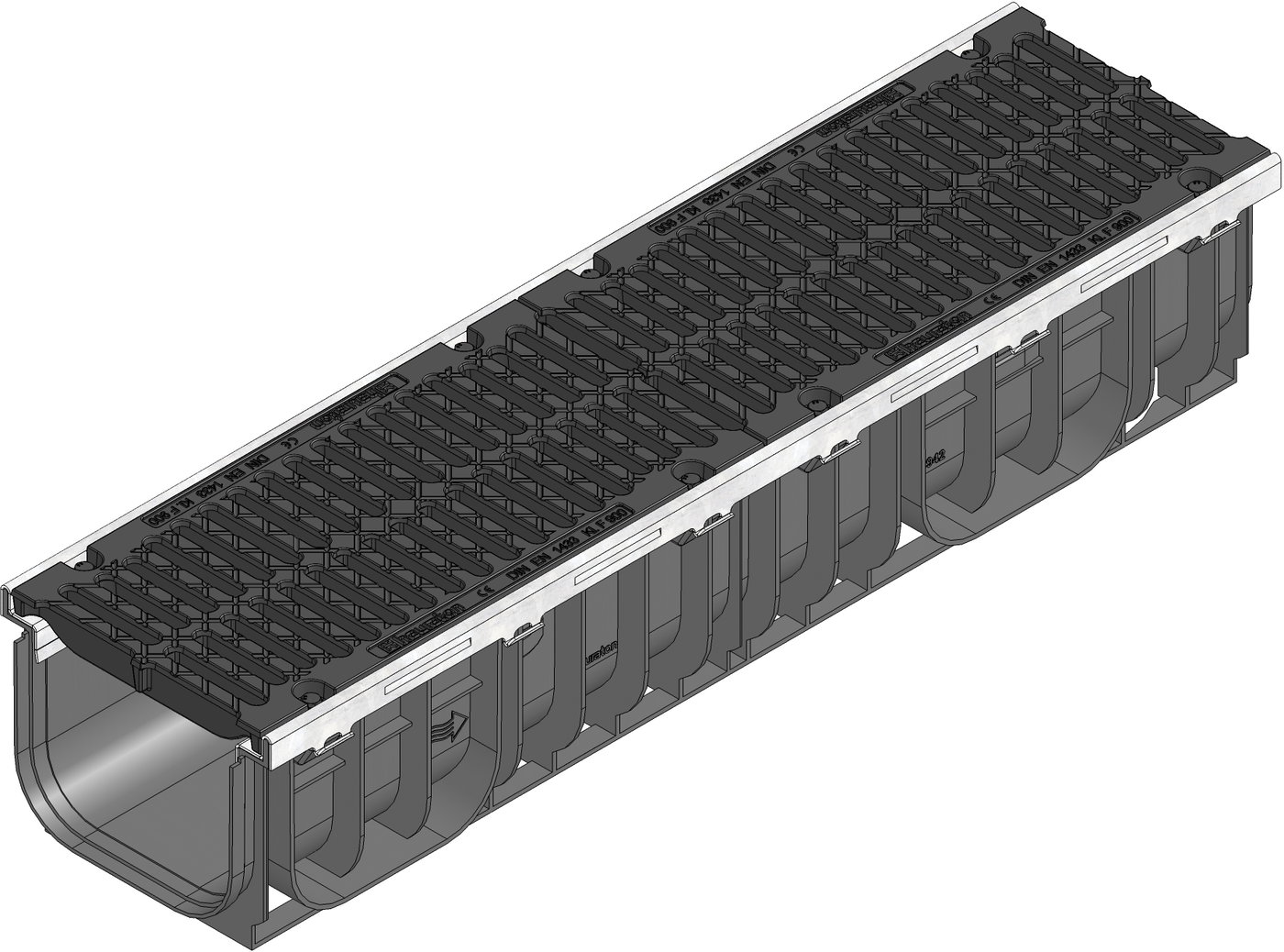

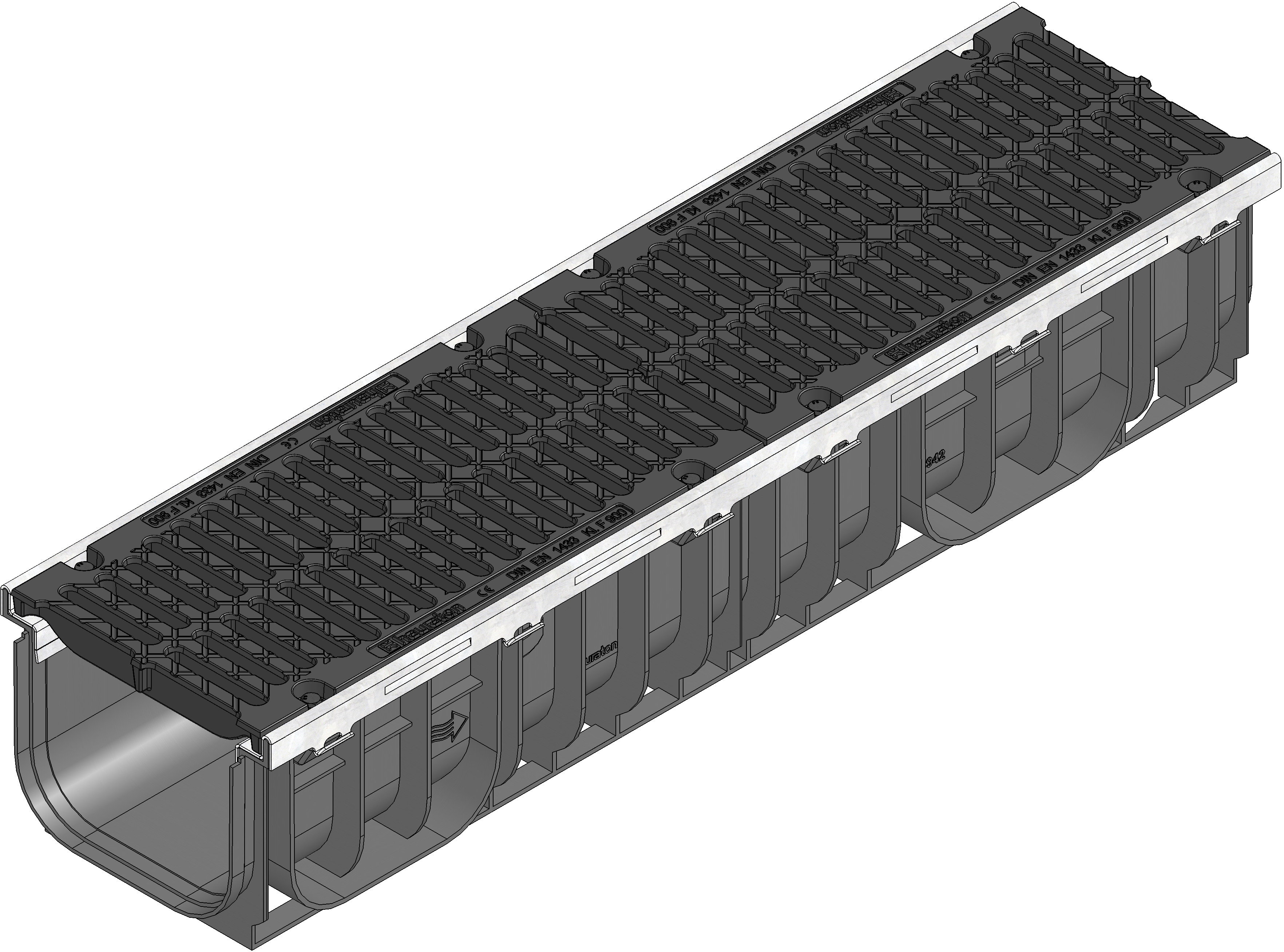

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
12151
Length
1000 mm
Width
267 mm
Height
202 mm
Inlay depth
21 mm
Weight
27.26 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
897.0 cm²/m
Nominal size
200
Internal channel cross-section
298 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material of angle housing
strip galvanized steel
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX NC X 200 Channel type 010 with edge frames made of galvanised steel and ductile iron grating 2x SW 94/14 mm, black, cl. F 900, 8-fold bolting, 1 m
Product description
RECYFIX NC X 200 type 010 - Channel body made of recycled polypropylene, with edge frames made of galvanised steel, with vertical connection possibility DN /OD 110/160, with ductile iron grating 2x SW 94/14 mm, of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, with 8-fold bolting, load class A 15 - F 900 according to EN 1433, LxWxH 1000x267x202 mm, item no. 12151
Packaging unit
16
Tender Texts
Installation instructions
Installation example
Asphalt class F 900,
Concrete class F 900,
