Article No. 10325
RECYFIX POINT 30/30, Point drainage, class A 15
Extension frame with 2 bolt connection points

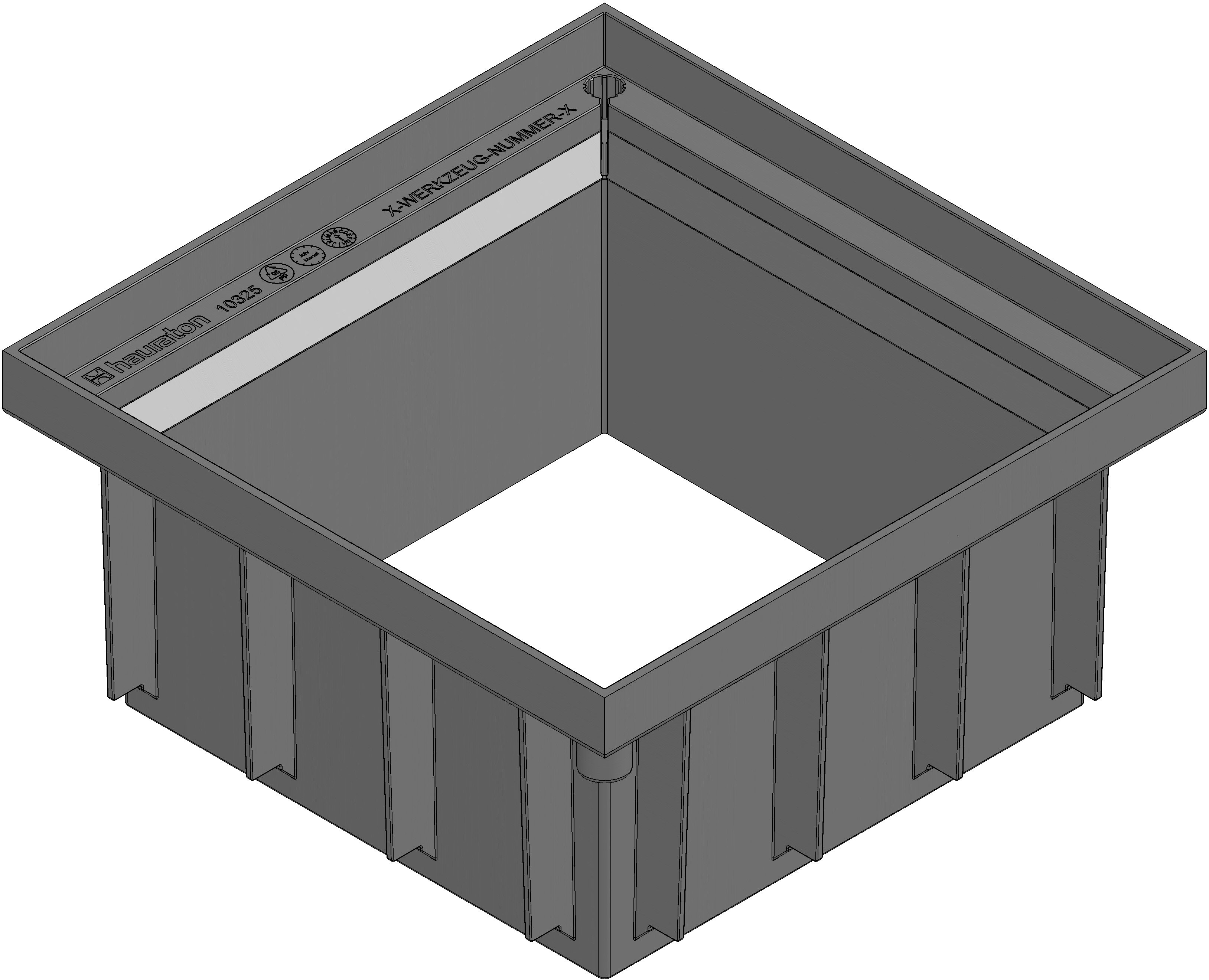

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10325
Length
291 mm
Width
291 mm
Height
148 mm
Weight
0.63 kg
Material
recycled polypropylene
Regulations
EN 1433, DIN 19580
Sales text
Extension frame with 2 bolt connection points, increase by 106 mm, RECYFIX POINT 30/30 Gully, installation height 300 mm
Product description
RECYFIX POINT 30/30 Gully, installation height 300 mm, extension frame with 2 bolt connection points, made of recycled polypropylene , height 148 mm, actual increase in installation by 106 mm, item no. 10325
Packaging unit
108
