Article No. 10181
RECYFIX POINT 30/30, Point drainage, class A 15
Installation height 300 mm, with mesh grating MW 30/10 mm, stainless steel

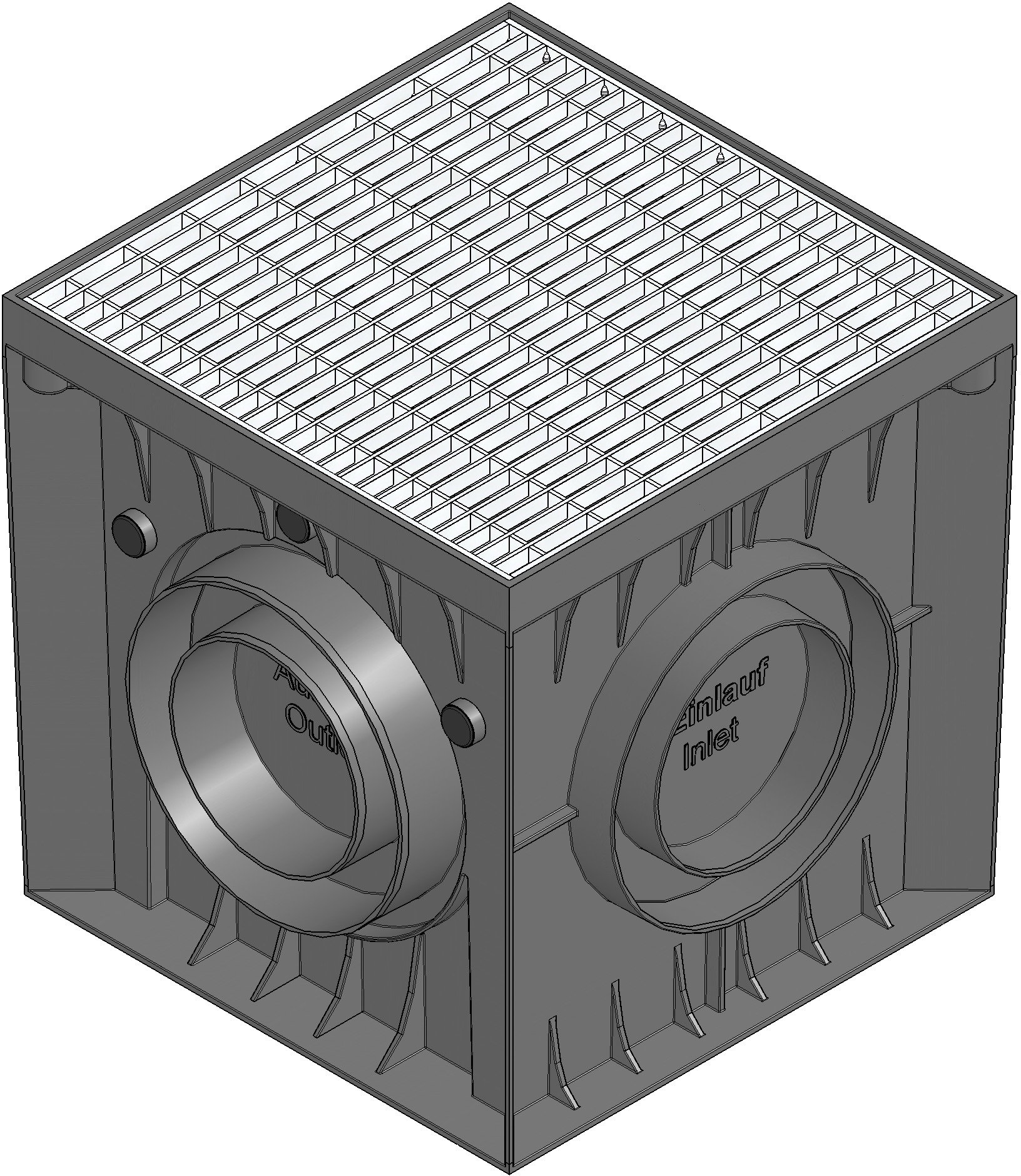

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
10181
Length
291 mm
Width
291 mm
Height
300 mm
Weight
4.02 kg
Material
recycled, modified Polypropylene, Stainless steel 1.4301
Inlet opening
30 x 10 mm
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX POINT 30/30 - Gully, installation height 300 mm, with mesh grating MS 30/10 mm, stainless steel, cl. A 15, with silt bucket and foul air trap
Product description
RECYFIX POINT 30/30 - Gully, installation height 300 mm, made of recycled polypropylene, with mesh grating MS 30/10 mm, stainless steel CNS 1.4301, with silt bucket made of composite and foul air trap, with lateral connection possibility DN/OD 110/160, load class A 15 according to EN 1433, CE compliant, LxWxH 291x291x300 mm, item no. 10181
Packaging unit
36
Tender Texts
Installation example
Pavement class A 15,
Pavement class A 15,
water-bound road surfaces class A 15,
Pavement class A 15 - B 125,
Pavement class A 15 - B 125,
Asphalt class A 15 - C 250,
Concrete class B 125 - C 250,
Pavement class A 15 - C 250,
water-bound road surfaces class A 15 - C 250,
Pavement class C 250,
Pavement class A 15 - C 250,
Asphalt class A 15 - C 250,
Concrete class B 125 - C 250,
Pavement class C 250,
Installation instructions
