Article No. 32182

RECYFIX POINT 30/30, Point drainage, class B 125

Installation height 300 mm, with silt bucket made of recycled PP and foul air trap, with FIBRETEC design slotted grating SW 99/8 mm, black, anti-slip resistance class R11, with lateral connection possibility DN/OD 110/160, screwed

Fragen?

Unser erfahrenes Planungsteam hilft Ihnen gerne.

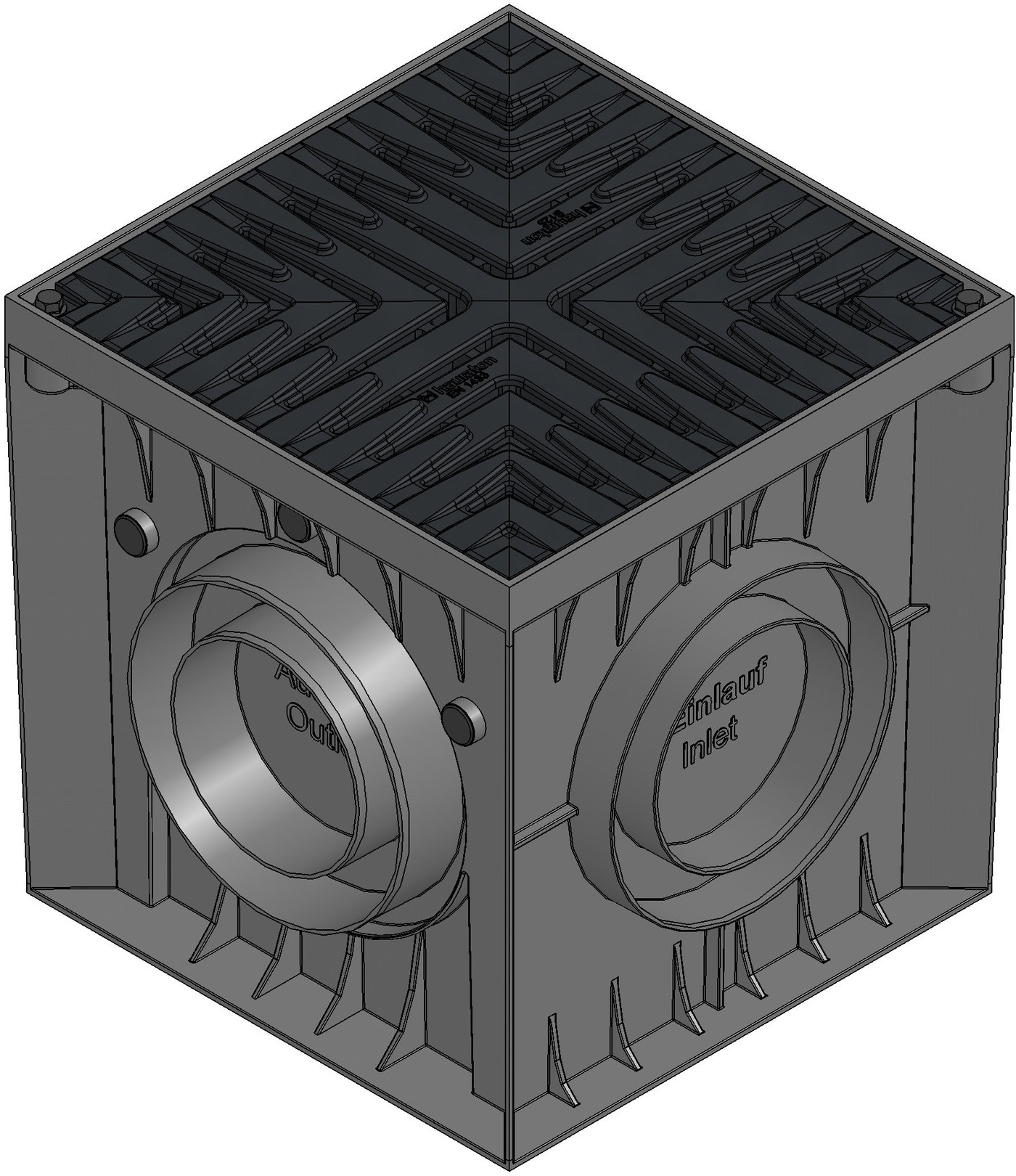

Product image

Technical drawing

Drawing (CAD)

Top view

Technical information and metrics

Article No.
32182
Length
291 mm
Width
291 mm
Height
300 mm
Weight
2.50 kg
Material
Brass, recycled, modified Polypropylene, reinforced Polyamide, rubber, Steel 8.8 zinc-laminated black
Inlet opening
99 x 8 mm
Material grating
reinforced Polyamide
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX POINT 30/30 Gully, installation height 300 mm, with FIBRETEC design slotted grating SW 99/8 mm, black, cl. B 125, anti-slip resistance class R11, screwed, and with silt bucket made of recycled PP and foul air trap
Product description
RECYFIX POINT 30/30 Gully, installation height 300 mm, made of recycled polypropylene, with FIBRETEC design slotted grating SW 99/8 mm, black, anti-slip resistance class R11, made of fibre-reinforced polyamide, screwed, with silt bucket made of recycled polypropylene and foul air trap, with lateral connection possibility DN/OD 110/160, load class A 15 - B 125 according to DIN 19580/ EN 1433, CE compliant, LxWxH 291x291x300 mm, item no. 32182
Packaging unit
36

Installation example

Pavement class A 15,

Pavement class A 15,

water-bound road surfaces class A 15,

Pavement class A 15 - B 125,

Pavement class A 15 - B 125,

Asphalt class A 15 - C 250,

Concrete class B 125 - C 250,

Pavement class A 15 - C 250,

water-bound road surfaces class A 15 - C 250,

Pavement class C 250,

Pavement class A 15 - C 250,

Asphalt class A 15 - C 250,

Concrete class B 125 - C 250,

Pavement class C 250,

Installation instructions
