Article No. 10330
RECYFIX POINT 30/30, Point drainage, class B 125
Installation height 450 mm, with mesh grating MW 30/10 mm, galvanised

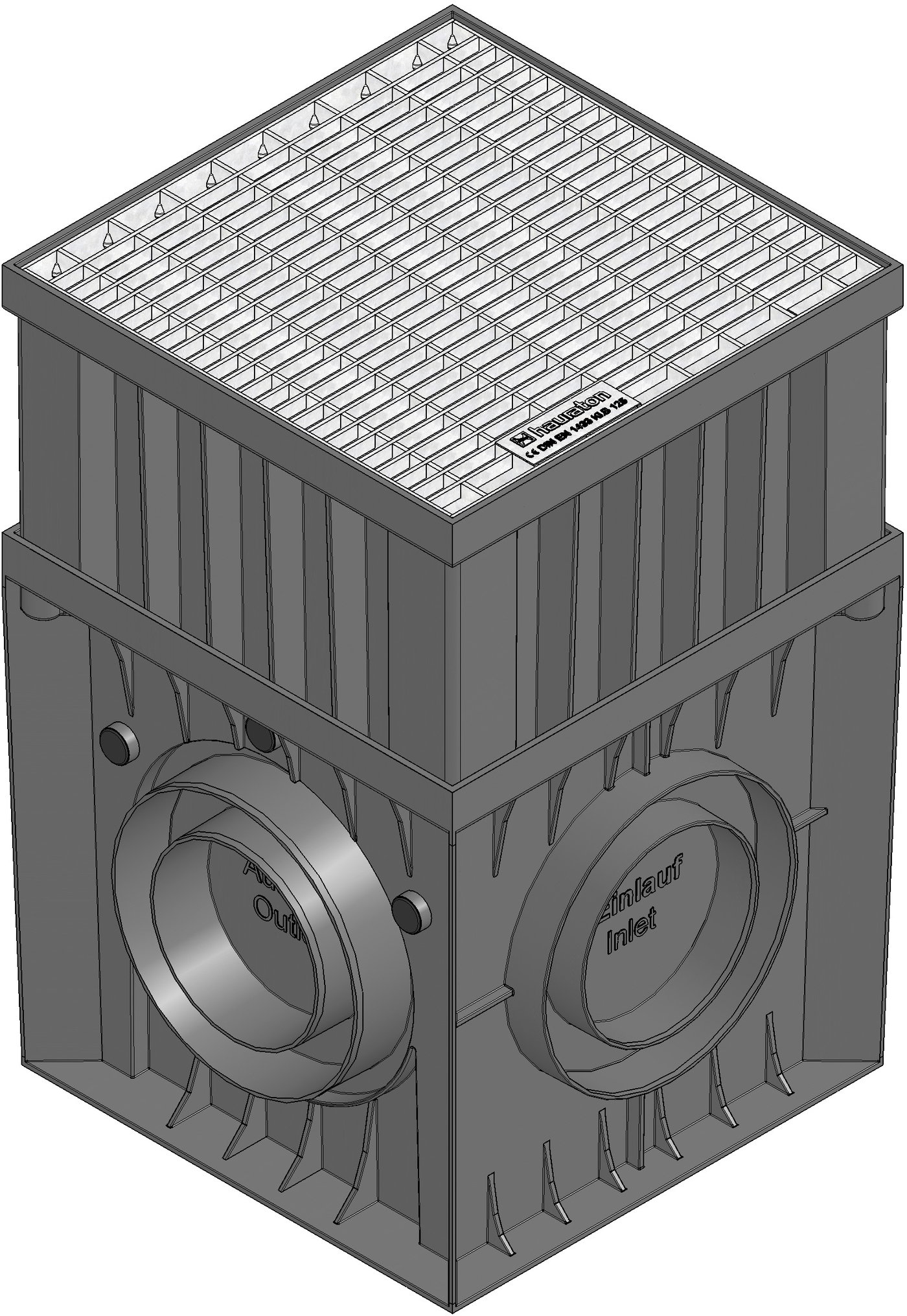

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
10330
Length
291 mm
Width
291 mm
Height
450 mm
Weight
5.72 kg
Material
hot-dip galvanised steel
Inlet opening
30 x 10 mm
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX POINT 30/30 - Gully, installation height 450 mm, with mesh grating MS 30/10 mm, galvanised, cl. B 125, with silt bucket and foul air trap
Product description
RECYFIX POINT 30/30 - Gully, installation height 450 mm, made of recycled polypropylene, with mesh grating MS 30/10 mm, galvanised, with silt bucket made of recycled polypropylene and foul air trap, with lateral connection possibility DN/OD 110/160, load class A 15 - B 125 according to EN 1433, CE compliant, LxWxH 291x291x450 mm, item no. 10330
Packaging unit
24
Tender Texts
Installation example
Pavement class A 15,
Pavement class A 15,
water-bound road surfaces class A 15,
Pavement class A 15 - B 125,
Pavement class A 15 - B 125,
Asphalt class A 15 - C 250,
Concrete class B 125 - C 250,
Pavement class A 15 - C 250,
water-bound road surfaces class A 15 - C 250,
Pavement class C 250,
Pavement class A 15 - C 250,
Asphalt class A 15 - C 250,
Concrete class B 125 - C 250,
Pavement class C 250,
Installation instructions
