Article No. 32612
RECYFIX POINT 30/30, Point drainage, class C 250
Installation height 300 mm, with longitudinal ductile iron grating, bar distance 8 mm, screwed, black, KTL-coated

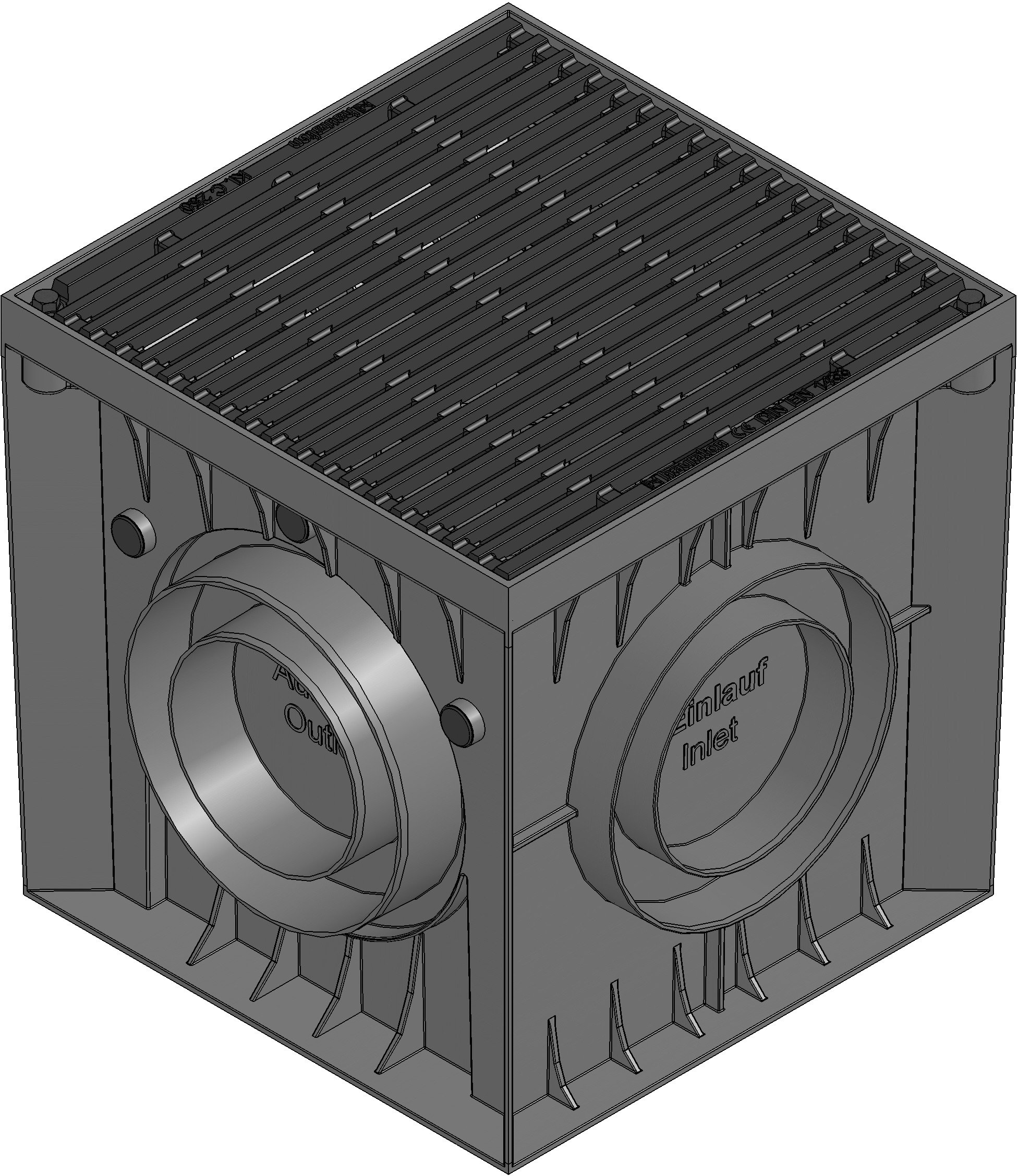

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
32612
Length
291 mm
Width
291 mm
Height
300 mm
Weight
6.89 kg
Material
Brass, Ductile iron GJS 500-7 with KTL-coating, recycled, modified Polypropylene, rubber, Steel 8.8 zinc-laminated black
Inlet opening
8 x 0 mm
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX POINT 30/30 - Gully, installation height 300 mm, with longitudinal ductile iron grating bar distance 8 mm, KTL-coated, cl. C 250, screwed, with silt bucket and foul air trap
Product description
RECYFIX POINT 30/30 - Gully, installation height 300 mm, made of recycled polypropylene, with longitudinal ductile iron grating made of spheroidal ductile iron EN-GJS-500-7, bar distance 8 mm, KTL-coated, locked, with silt bucket made of composite and foul air trap, with lateral connection possibility DN/OD 110/160, load class A 15 - C 250 according to EN 1433, CE compliant, LxWxH 291x291x300 mm, item no. 32612
Packaging unit
36
Tender Texts
Installation example
Pavement class A 15,
Pavement class A 15,
water-bound road surfaces class A 15,
Pavement class A 15 - B 125,
Pavement class A 15 - B 125,
Asphalt class A 15 - C 250,
Concrete class B 125 - C 250,
Pavement class A 15 - C 250,
water-bound road surfaces class A 15 - C 250,
Pavement class C 250,
Pavement class A 15 - C 250,
Asphalt class A 15 - C 250,
Concrete class B 125 - C 250,
Pavement class C 250,
Installation instructions
