Article No. 47039

RECYFIX PRO 100, class C 250

Type 95 with ductile longitudinal grating SW 9 mm, KTL-coated, locked, 1.0 m

Project request Tender Texts

Fragen?

Unser erfahrenes Planungsteam hilft Ihnen gerne.

Fragen?

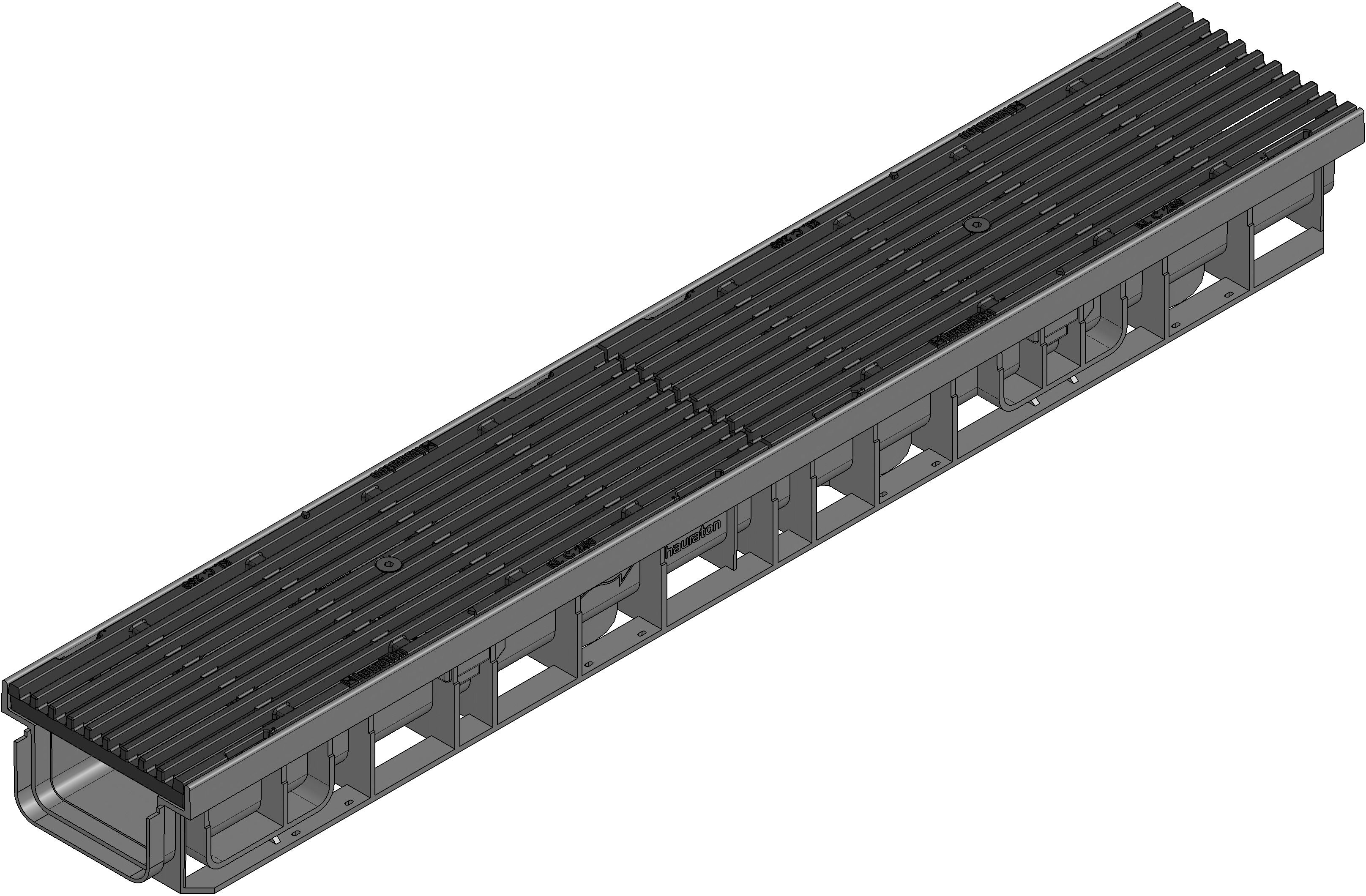

Product image

Top view

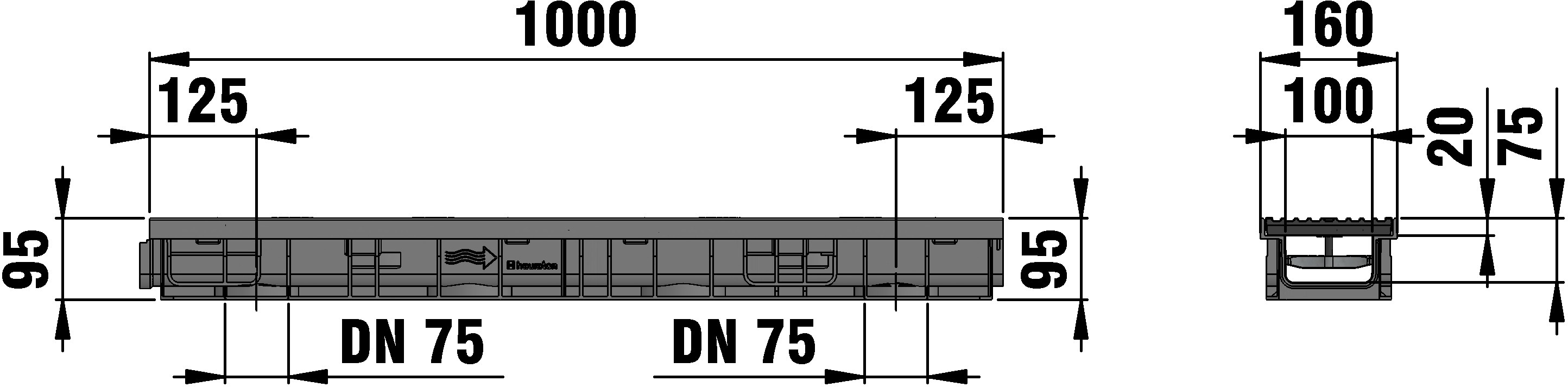

Technical drawing

Drawing (CAD)

Drawing (CAD)

Technical information and metrics
Article No.
47039
Length
1000 mm
Width
160 mm
Height
95 mm
Inlay depth
20 mm
Weight
8.96 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
577.0 cm²/m
Nominal size
100
Internal channel cross-section
55 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 100 Channel type 95 with integrated edge frames, with longitudinal ductile iron grating bar distance 9 mm, KTL-coated, cl. C 250, locked, 1 m
Product description
RECYFIX PRO 100 type 95 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 75, with longitudinal ductile iron grating bar distance 9 mm, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 1000x160x95 mm, item no. 47039
Packaging unit
77

Tender Texts

Installation example

Concrete class A 15 - C 250, Flat channel

Installation example

Asphalt class A 15 - B 125, channel height ≥ 150 mm

Installation example

Pavement class A 15 - B 125, channel height ≥ 150 mm

Installation example

water-bound road surfaces class A 15 - B 125,

Installation example

Pavement class A 15 - B 125, Type 75, Type 95

Installation example

Cemented floor class A 15 - C 250,

Installation example

Pavement class C 250, Type 75, Type 95

Installation example

Concrete class C 250, channel height ≥ 150 mm

Installation example

Asphalt class C 250, channel height ≥ 150 mm

Installation example

Pavement class C 250, channel height ≥ 150 mm

Installation example

Asphalt class A 15 - B 125, as double strand

Installation example

Pavement class A 15 - C 250, as double strand

Installation example

Asphalt class C 250, as double strand

Installation example

Concrete class C 250, as double strand

Installation example

Installation instructions
Installation instructions
