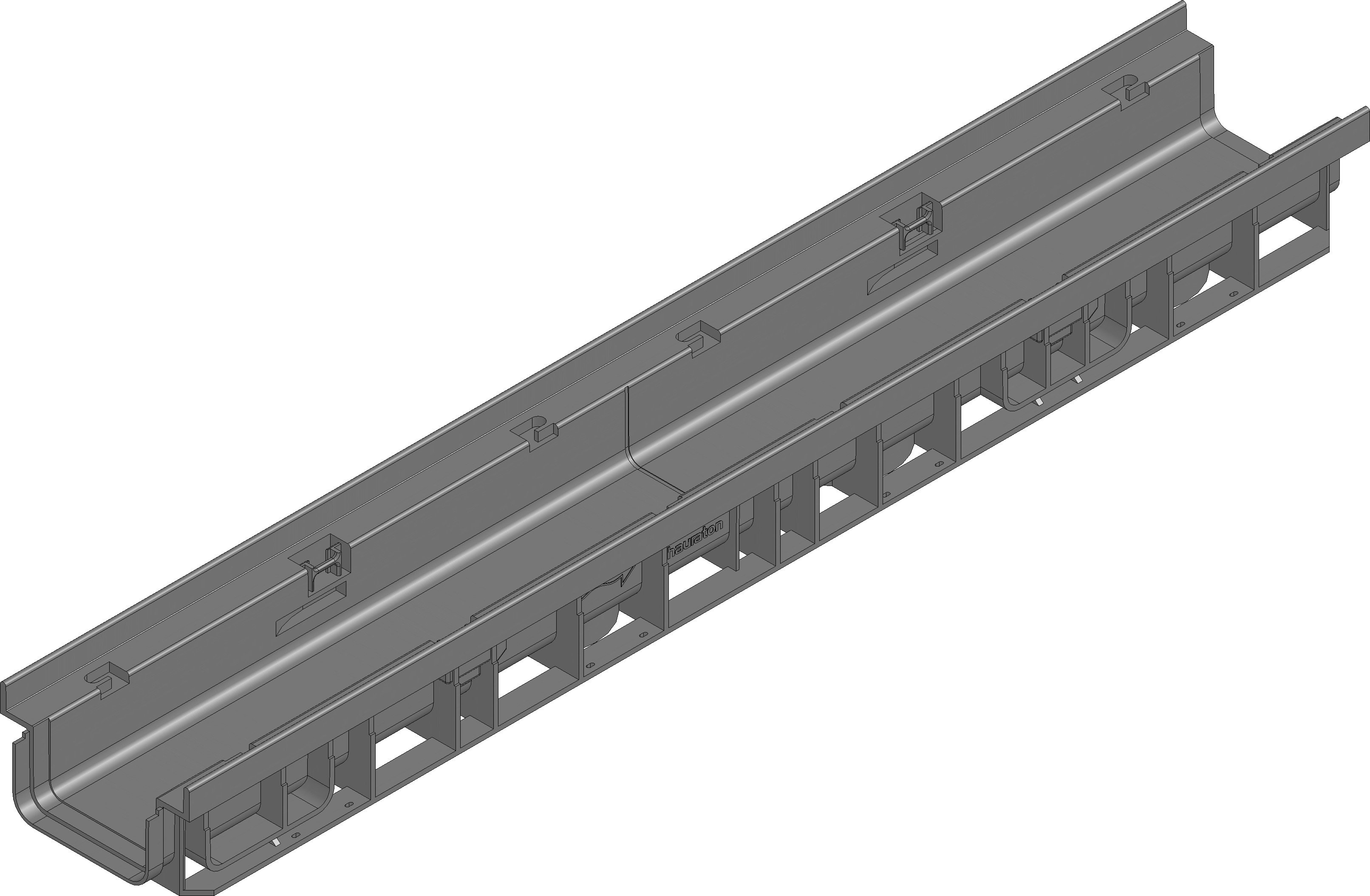

Product image
Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
47031
Length
1000 mm
Width
160 mm
Height
95 mm
Weight
1.57 kg
Material
recycled polypropylene
Height of angle housing
20 mm
Nominal size
100
Internal channel cross-section
55 cm²
Fall
-
Fixing type
Loose blatant, Locking handle
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 100 Channel body type 95 with integrated edge frames, 1 m
Product description
RECYFIX PRO 100 type 95 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 75, load class A 15 - D 400 according to EN 1433, LxWxH 1000x160x95 mm, item no. 47031
Packaging unit
126
Tender Texts
Installation example
Pavement class A 15,
Pavement class B 125,
Pavement class C 250,
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
