Article No. 47134

RECYFIX PRO 150, class C 250

Type 115 with longitudinal ductile iron grating SW 9 mm, KTL-coated, locked, 1.0 m

Project request Tender Texts

Fragen?

Unser erfahrenes Planungsteam hilft Ihnen gerne.

Fragen?

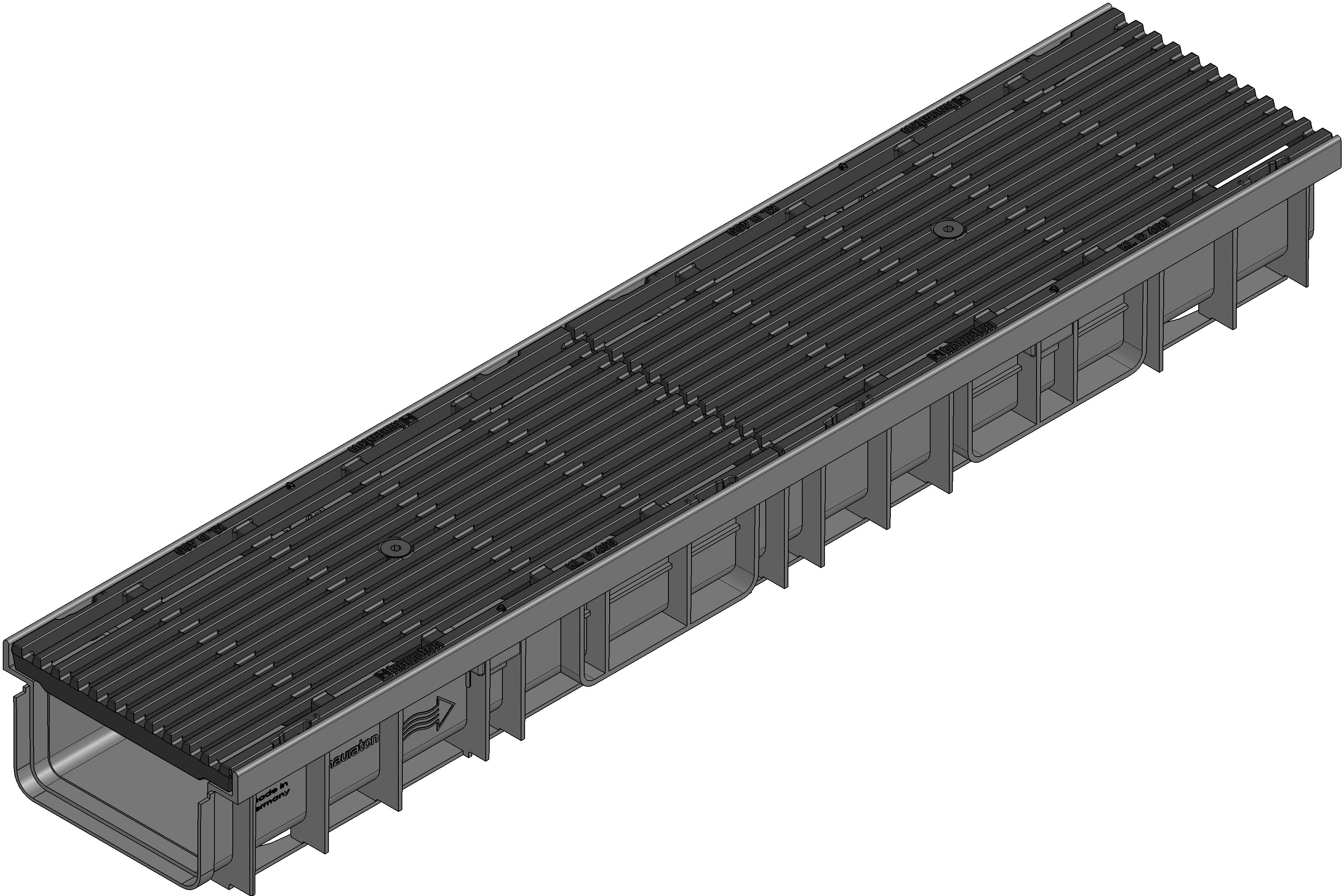

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Top view

Technical information and metrics
Article No.
47134
Length
1000 mm
Width
212 mm
Height
115 mm
Inlay depth
20 mm
Weight
15.88 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled, modified Polypropylene, reinforced Polyamide, Steel black galvanised
Intake cross-section
740.0 cm²/m
Nominal size
150
Internal channel cross-section
116 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 150 Channel type 115 with integrated edge frames, with longitudinal ductile iron grating bar distance 9 mm, KTL-coated, cl. C 250, locked, 1 m
Product description
RECYFIX PRO 150 type 115 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 75/110, with longitudinal ductile iron grating bar distance 9 mm, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 1000x212x115 mm, item no. 47134
Packaging unit
45

Tender Texts

Installation example

Pavement class A 15, RECYFIX PRO 150, 200 Typ 115, RECYFIX NC 100 Typ 75

Installation example

water-bound road surfaces class A 15,

Installation example

Asphalt class A 15 - B 125, channel height ≥ 150 mm

Installation example

Pavement class A 15 - B 125, channel height ≥ 150 mm

Installation example

water-bound road surfaces class A 15 - B 125,

Installation example

Pavement class B 125, RECYFIX PRO 150, 200 Typ 115, RECYFIX NC 100 Typ 75

Installation example

Concrete class A 15 - C 250, Flat channel

Installation example

Pavement class A 15 - C 250,

Installation example

Pavement class C 250, Type 115

Installation example

Concrete class C 250, channel height ≥ 150 mm

Installation example

Asphalt class C 250, channel height ≥ 150 mm

Installation example

Pavement class C 250, channel height ≥ 150 mm

Installation example

Asphalt class A 15 - B 125, as double strand

Installation example

Pavement class A 15 - C 250, as double strand

Installation example

Asphalt class C 250, as double strand

Installation example

Concrete class C 250, as double strand

Installation example

Installation instructions
Installation instructions
