Article No. 49744
RECYFIX PRO 300, class C 250
Type 010 with G-TEC Ductile iron grating SW 9 mm, KTL-coated, locked, 1.0 m

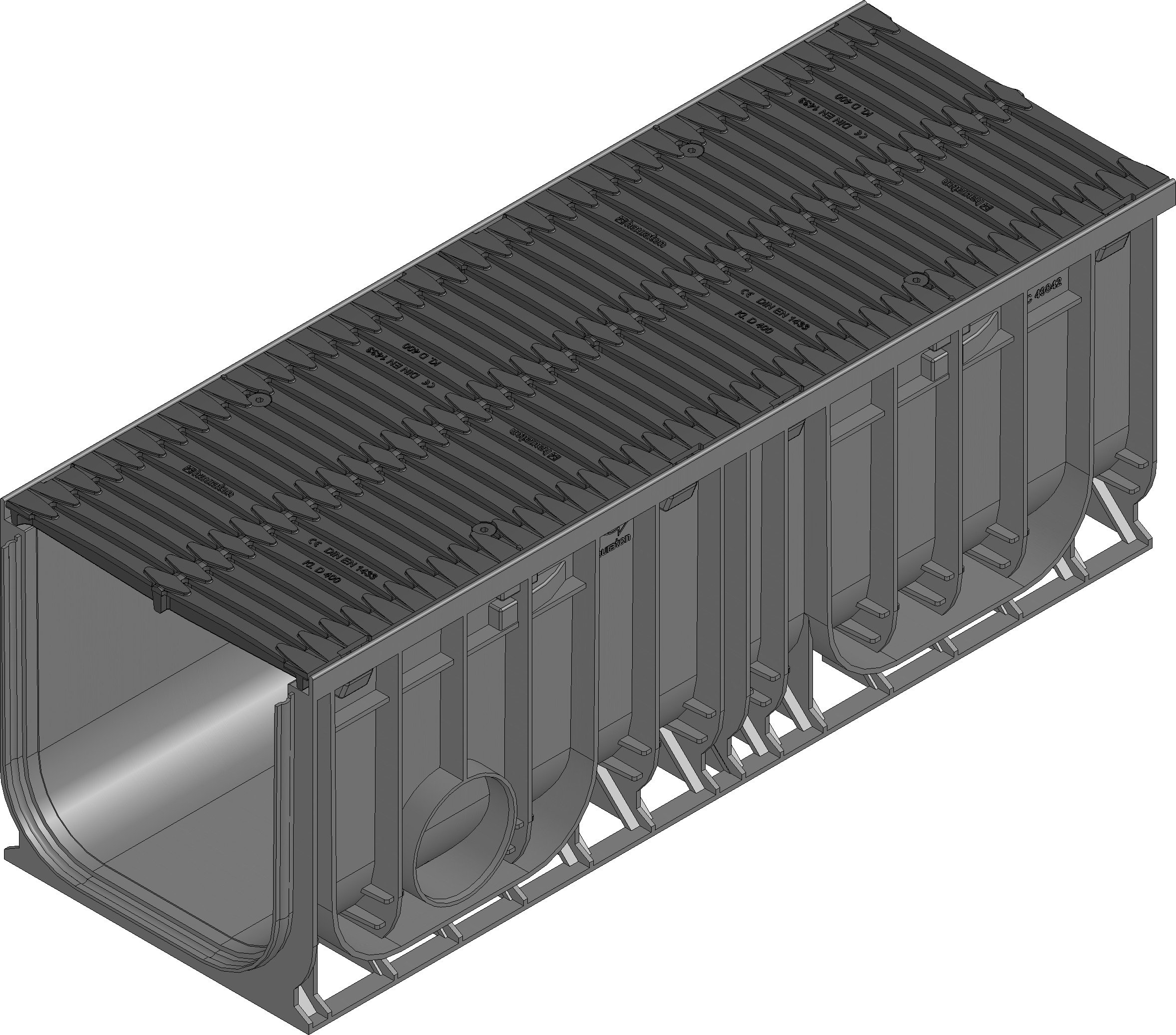

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
49744
Length
1000 mm
Width
362 mm
Height
360 mm
Inlay depth
20 mm
Weight
38.10 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled, modified Polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
960.0 cm²/m
Nominal size
300
Internal channel cross-section
873 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, AS 4586, DIN 19580
Sales text
RECYFIX PRO 300 Channel type 010 with integrated edge frames, with G-Tec-ductile iron grating 2x SW 141/9 mm, KTL-coated, cl. C 250, locked, 1 m
Product description
RECYFIX PRO 300 type 010 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 160/200, with G-TEC ductile iron grating 2x SW 141/9 mm, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 1000x362x360 mm, item no. 49744
Packaging unit
9
Tender Texts
Installation example
Concrete class C 250, channel height ≥ 150 mm
Asphalt class C 250, channel height ≥ 150 mm
Pavement class C 250, channel height ≥ 150 mm
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
Installation instructions
