Article No. 41246
RECYFIX STANDARD 100, class A 15
Type 80 with perforated grating "Elegance", stainless steel, locked, 1,0 m

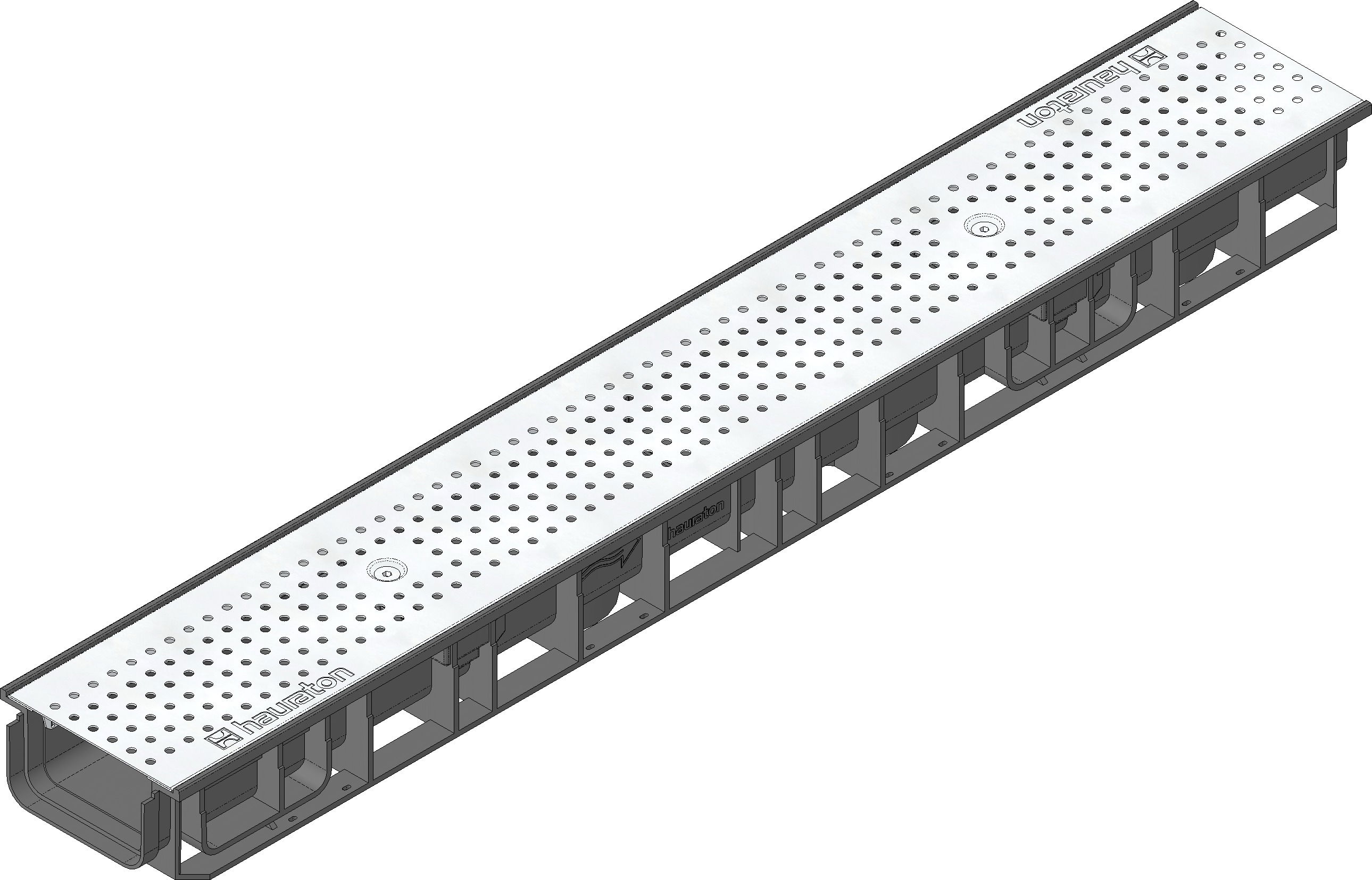

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
41246
Length
1000 mm
Width
150 mm
Height
80 mm
Inlay depth
3 mm
Weight
3.10 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
100.0 cm²/m
Nominal size
100
Internal channel cross-section
55 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 100 Channel type 80 with perforated grating Ø 6 mm, stainless steel, cl. A 15, locked, 1 m
Product description
RECYFIX STANDARD 100 type 80 - Channel body made of recycled polypropylene, with vertical connection possibility DN/OD 75, with perforated grating Ø 6 mm, made of stainless steel CNS 1.4301, overlying, with locking, load class A 15 according to EN 1433, LxWxH 1000x150x80 mm, item no. 41246
Packaging unit
88
Tender Texts
Installation example
Pavement class A 15 - B 125,
Cemented floor class A 15 - C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Concrete class C 250,
Pavement class C 250,
Installation instructions
