Article No. 41232
RECYFIX STANDARD 100, class C 250
Type 010 with ductile iron grating, SW 80/6 mm, black, locked, 1.0 m

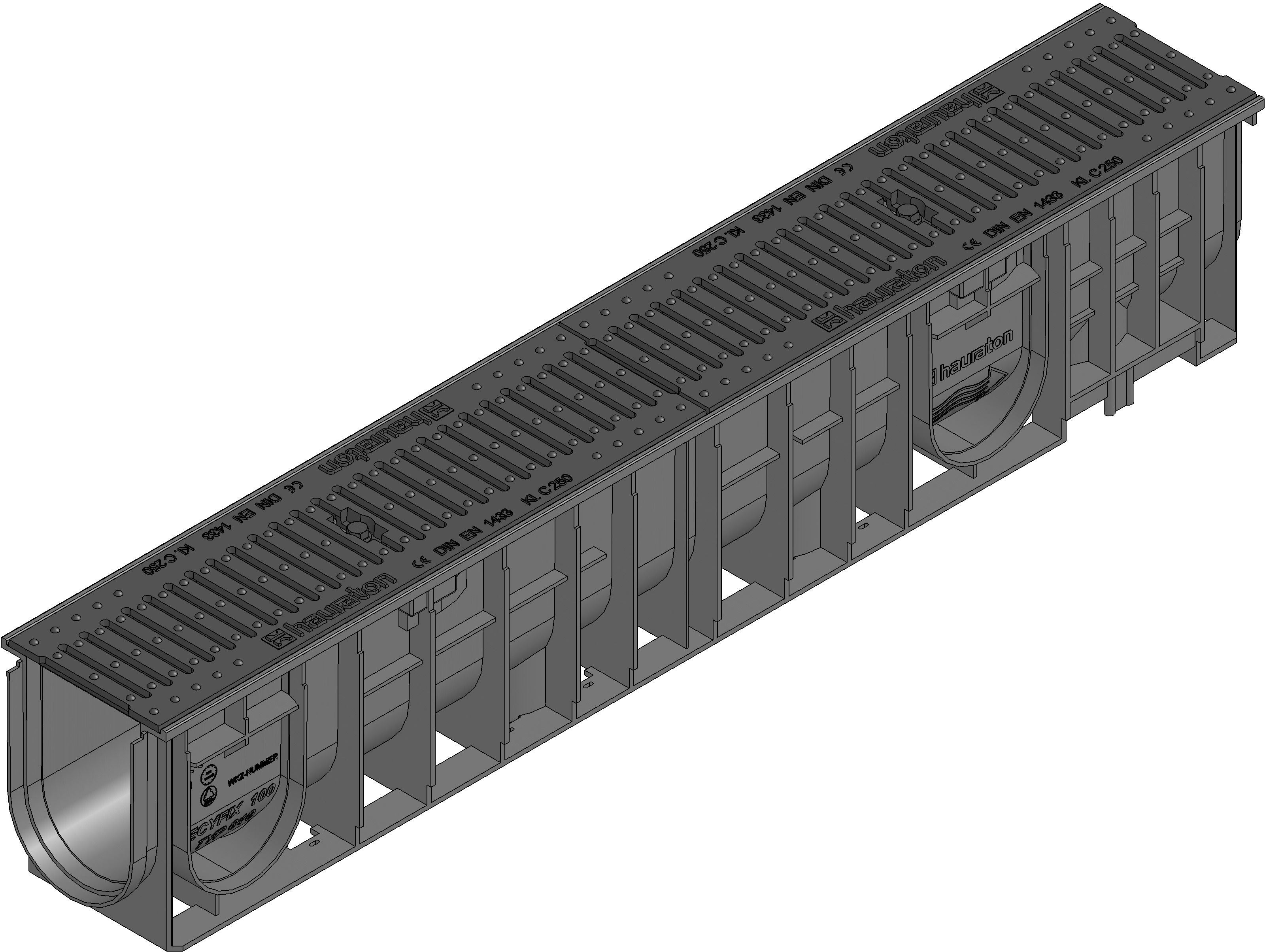

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
41232
Length
1000 mm
Width
150 mm
Height
185 mm
Inlay depth
6 mm
Weight
8.74 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
254.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 51130, AS 4586, DIN 19580, EN 16165
Sales text
RECYFIX STANDARD 100 Channel type 010 with ductile iron grating SW 80/6 mm, black, cl. C 250, locked, 1 m
Product description
RECYFIX STANDARD 100 type 010 - Channel body made of recycled polypropylene, with vertical connection possibility DN/OD 110, with ductile iron grating SW 80/6 mm, made of spheroidal ductile iron GJS 500-7, black, overlying, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 1000x150x185 mm, item no. 41232
Packaging unit
42
Tender Texts
Installation example
Pavement class A 15 - B 125, Type 60, Type 80
Cemented floor class A 15 - C 250,
Pavement class C 250, Type 60, Type 80
Asphalt class A 15 - B 125, channel height ≥ 134 mm
Asphalt class C 250, channel height ≥ 134 mm
Pavement class A 15 - B 125, channel height ≥ 134 mm
Concrete class C 250, channel height ≥ 134 mm
Pavement class C 250, channel height ≥ 134 mm
Installation instructions
