Article No. 40280
RECYFIX STANDARD 100, trafficable
Type 01 with slotted grating SW 80/9 mm, galvanised, overlying, 1.0 m

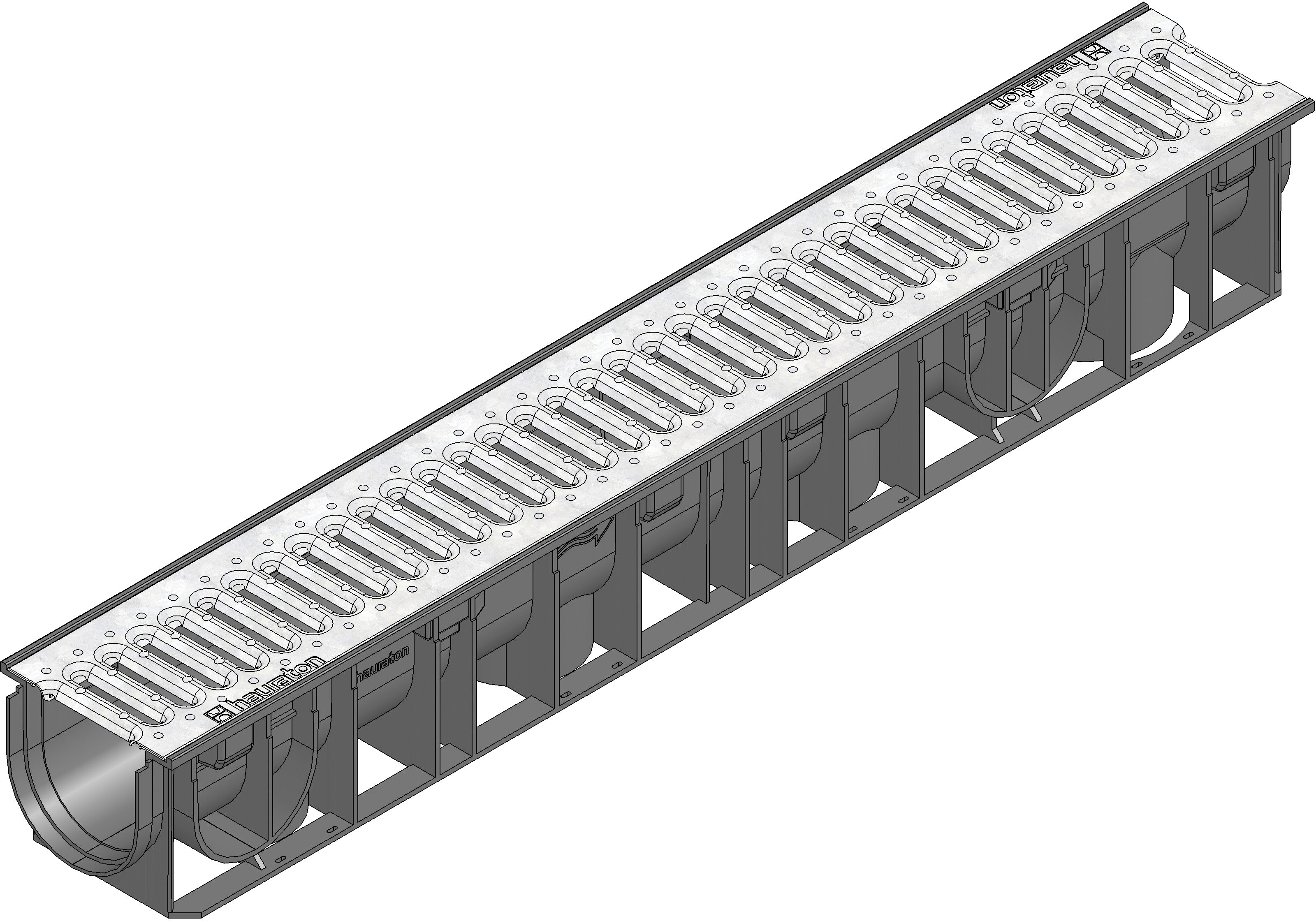

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
40280
Length
1000 mm
Width
150 mm
Height
134 mm
Inlay depth
3 mm
Weight
3.91 kg
Material
recycled polypropylene, strip galvanized steel
Intake cross-section
266.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 100 Channel type 01 with slotted grating, SW 80/9 mm, galvanised, trafficable, 1 m
Product description
RECYFIX STANDARD 100 type 01 - Channel made of recycled polypropylene, according to EN 1433, with vertical connection possibility DN /OD 110, with slotted grating, SW 80/9 mm, made of galvanised steel, overlying, trafficable, LxWxH 1000x158x134 mm, item no. 40280
Packaging unit
49
Tender Texts
Installation example
Pavement class A 15 - B 125, Type 60, Type 80
Cemented floor class A 15 - C 250,
Pavement class C 250, Type 60, Type 80
Asphalt class A 15 - B 125, channel height ≥ 134 mm
Asphalt class C 250, channel height ≥ 134 mm
Pavement class A 15 - B 125, channel height ≥ 134 mm
Concrete class C 250, channel height ≥ 134 mm
Pavement class C 250, channel height ≥ 134 mm
Installation instructions
