Article No. 40146
RECYFIX STANDARD 150, class B 125
Type 01 with mesh grating MS 30/30 mm, galvanised, locked, 0,5 m

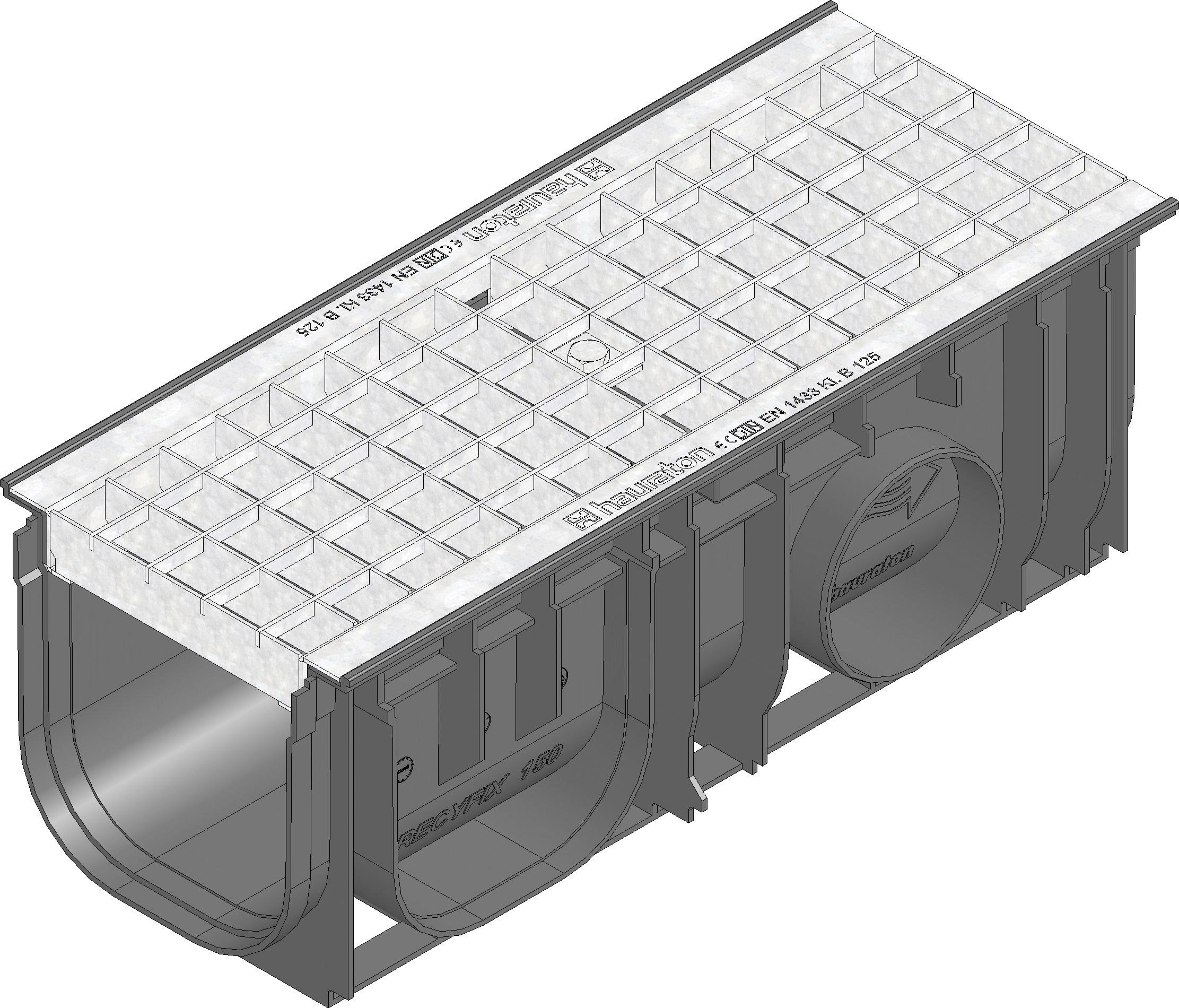

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
40146
Length
500 mm
Width
210 mm
Height
192 mm
Inlay depth
2 mm
Weight
7.75 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene, reinforced Polyamide
Intake cross-section
1237.0 cm²/m
Nominal size
150
Internal channel cross-section
225 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 150 Channel type 01 with mesh grating MS 30/30 mm, galvanised, cl. B 125, locked, 0.5 m
Product description
RECYFIX STANDARD 150 type 01 - Channel body made of recycled polypropylene, with mesh grating MS 30/30 mm, made of galvanised steel, galvanised, overlying, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 500x210x192 mm, item no. 40146
Packaging unit
50
Tender Texts
Installation example
Pavement class B 125,
Cemented floor class B 125 - C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Concrete class C 250,
Pavement class C 250,
Installation instructions
