Article No. 40176
RECYFIX STANDARD 150, class C 250
Type 01 with ductile iron grating black, SW 130/6 mm, locked, 1.0 m

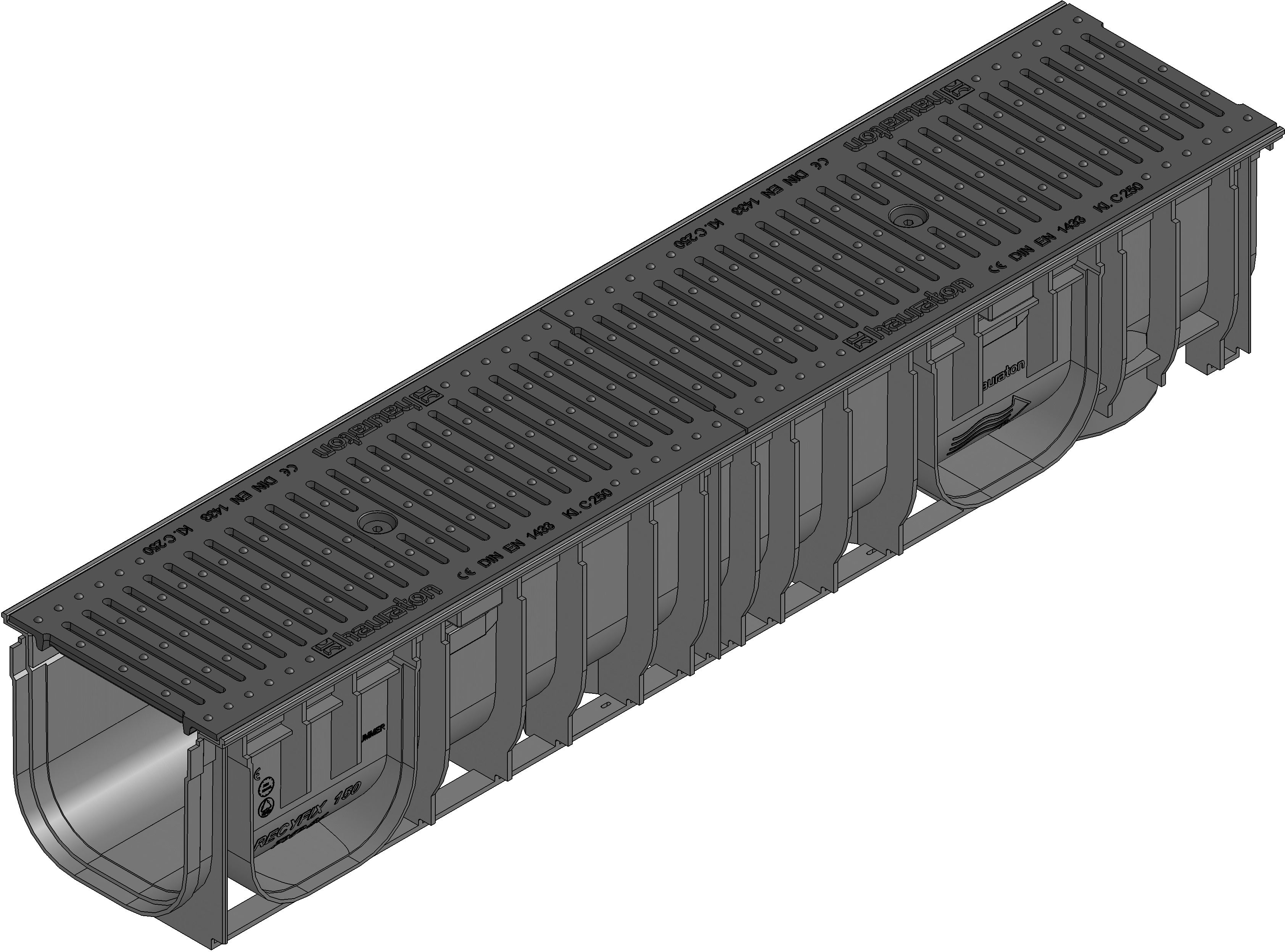

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
40176
Length
1000 mm
Width
210 mm
Height
192 mm
Inlay depth
6 mm
Weight
14.00 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, reinforced Polyamide, Steel black galvanised
Intake cross-section
400.0 cm²/m
Nominal size
150
Internal channel cross-section
225 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 150 Channel type 01 with ductile iron grating SW 130/6 mm, black, cl. C 250, locked
Product description
RECYFIX STANDARD 150 type 01 - Channel body made of recycled polypropylene, with vertical connection possibility DN/OD 110/160, with ductile iron grating SW 130/6 mm, made of spheroidal ductile iron EN-GJS-500-7, black, overlying, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 1000x210x192 mm, item no. 40176
Packaging unit
25
Tender Texts
Installation example
Pavement class B 125, Type 100
Cemented floor class B 125 - C 250,
Pavement class C 250, Type 100
Asphalt class A 15 - B 125, channel height ≥ 134 mm
Asphalt class C 250, channel height ≥ 134 mm
Pavement class A 15 - B 125, channel height ≥ 134 mm
Concrete class C 250, channel height ≥ 134 mm
Pavement class C 250, channel height ≥ 134 mm
Installation instructions
