Article No. 40672

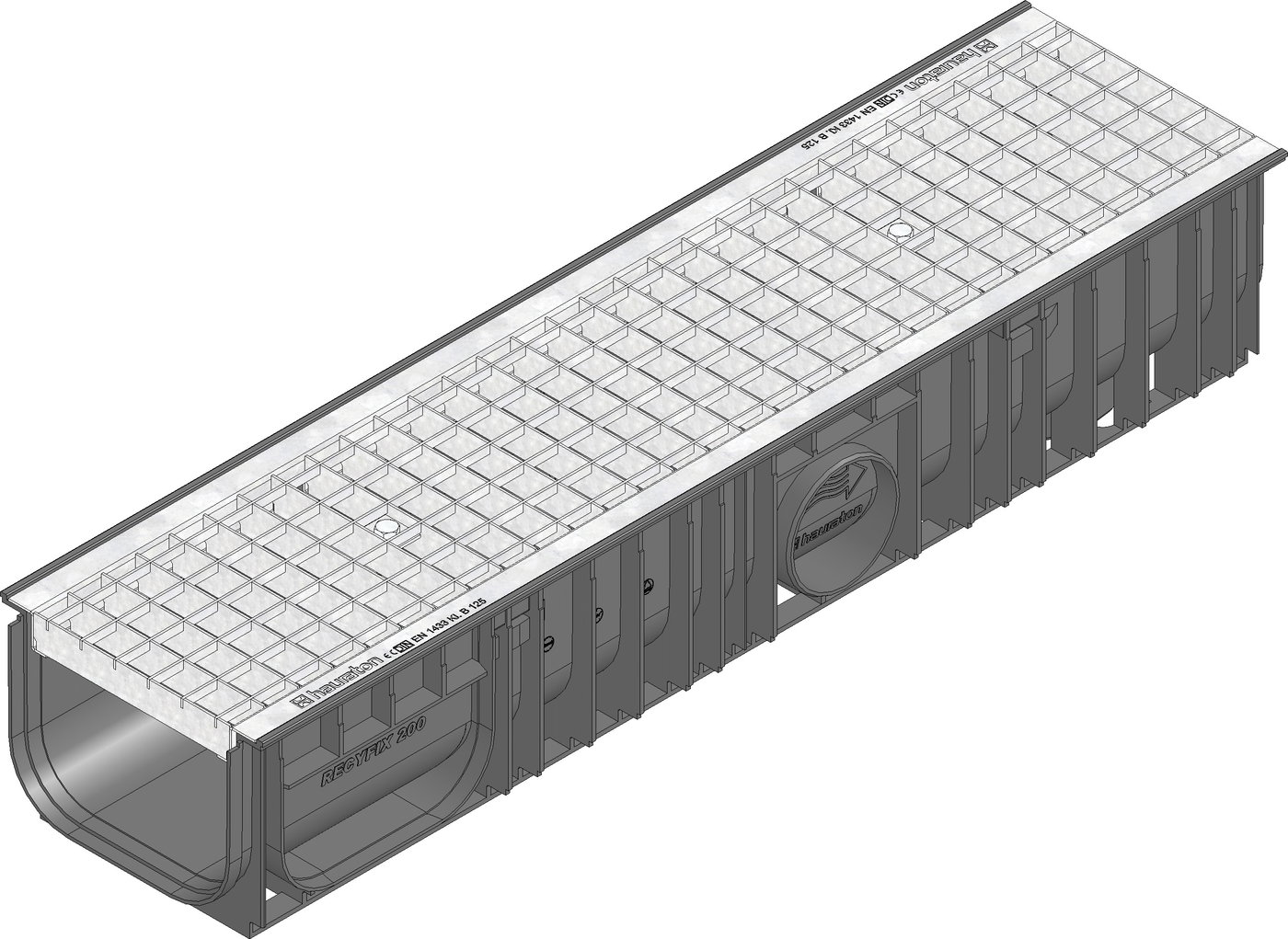

RECYFIX STANDARD 200, class B 125
Type 010 with mesh grating MS 30/30 mm, galvanised, locked, 1.0 m

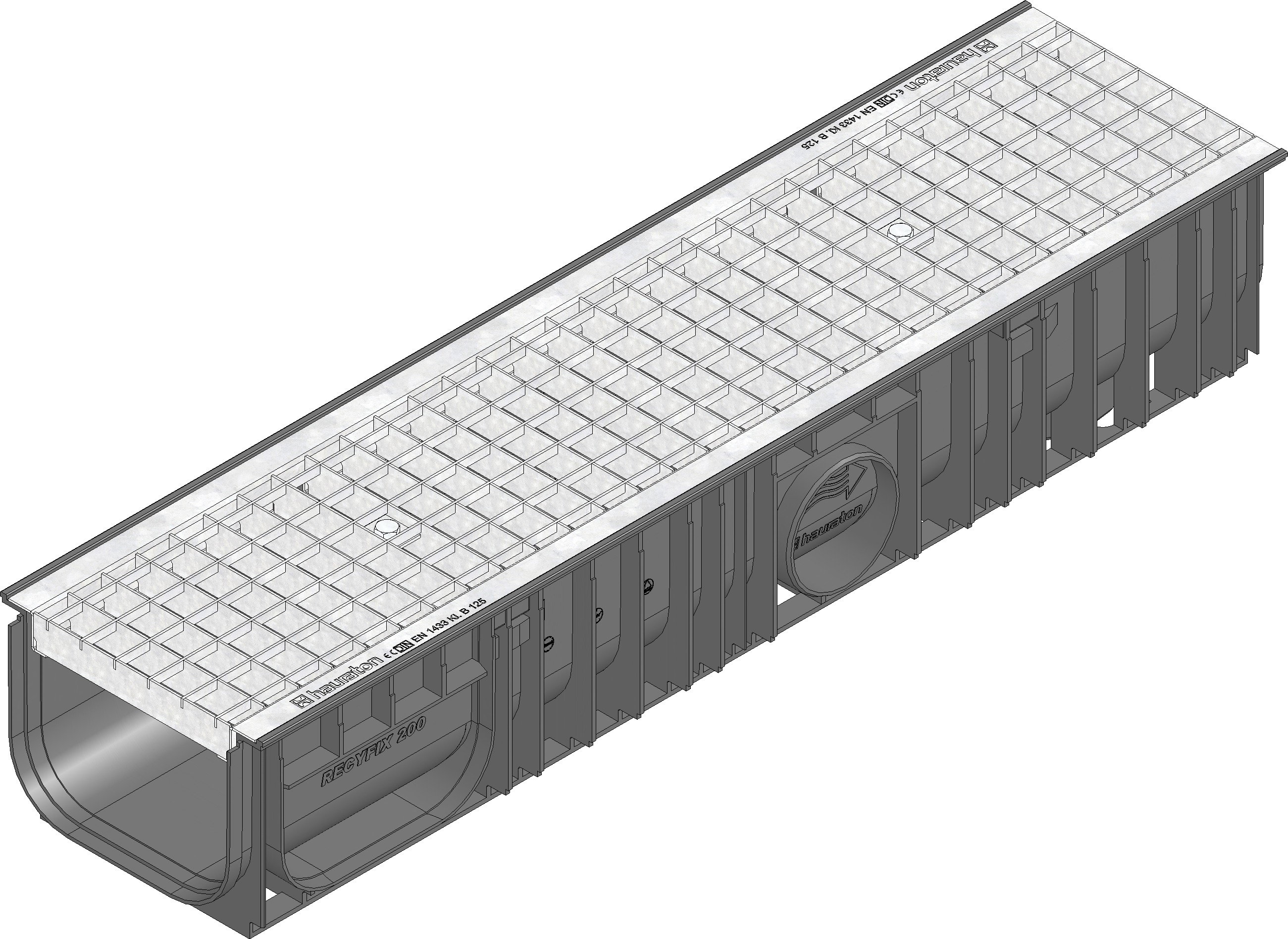

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
40672
Length
1000 mm
Width
256 mm
Height
185 mm
Inlay depth
2 mm
Weight
9.30 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled polypropylene
Intake cross-section
1633.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 200 Channel type 010 with mesh grating MS 30/30 mm, cl. B 125, locked, 1 m
Product description
RECYFIX STANDARD 200 type 010 - Channel body made of recycled polypropylene, with lateral (DN/OD 110) and vertical connection possibility (DN/OD 110/160), with mesh grating MS 30/30 mm, made of galvanised steel, overlying, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 1000x256x185 mm, item no. 40672
Packaging unit
20
Tender Texts
Installation example
Pavement class B 125, Type 100
Cemented floor class B 125 - C 250,
Pavement class C 250, Type 100
Asphalt class A 15 - B 125, channel height ≥ 134 mm
Asphalt class C 250, channel height ≥ 134 mm
Pavement class A 15 - B 125, channel height ≥ 134 mm
Concrete class C 250, channel height ≥ 134 mm
Pavement class C 250, channel height ≥ 134 mm
Installation instructions
