Article No. 40880
RECYFIX STANDARD 300, class C 250
Type 010 with GUGI-ductile iron mesh grating MS 15/25 mm, black, class C 250, without locking

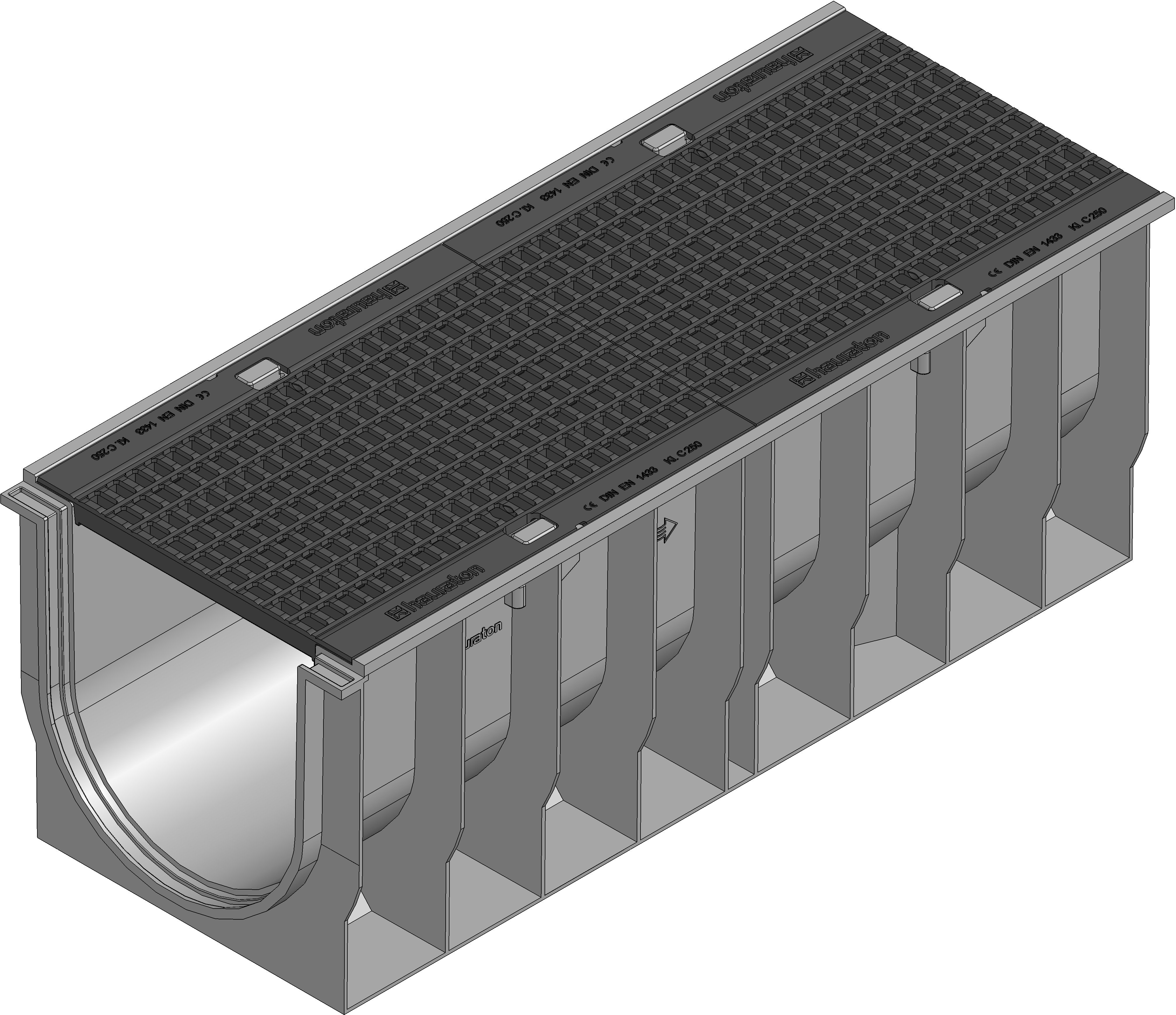

Product image

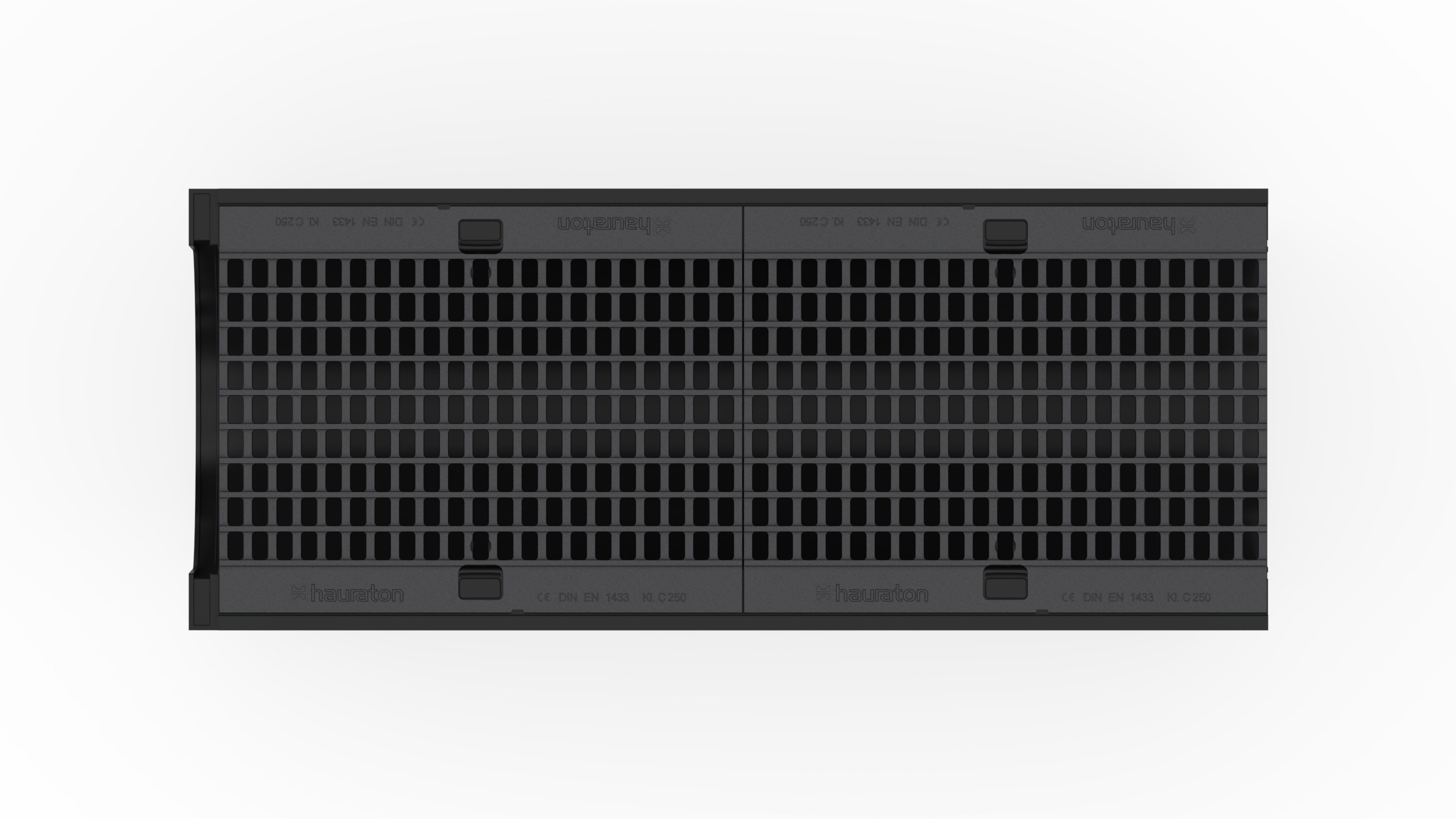

Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
40880
Length
1000 mm
Width
420 mm
Height
381 mm
Inlay depth
6 mm
Weight
35.04 kg
Material
Ductile iron GJS 500-7, recycled polypropylene
Intake cross-section
1360.0 cm²/m
Nominal size
300
Internal channel cross-section
857 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 300 Channel type 010 with GUGI-ductile iron mesh grating MS 15/25 mm, black, cl. C 250, 1 m
Product description
RECYFIX STANDARD 300 type 010 - Channel body made of recycled polypropylene, with vertical connection possibility DN/OD 160/200, with GUGI-ductile iron mesh grating MS 15/25 mm, made of spheroidal ductile iron EN-GJS-500-7, black, overlying, with longitudinal slide protection, load class A 15 - C 250 according to EN 1433, LxWxH 1000x420x381 mm, item no. 40880
Packaging unit
6
Tender Texts
Installation instructions
Installation example
Asphalt class A 15 - B 125, channel height ≥ 134 mm
Asphalt class C 250, channel height ≥ 134 mm
Pavement class A 15 - B 125, channel height ≥ 134 mm
Concrete class C 250, channel height ≥ 134 mm
Pavement class C 250, channel height ≥ 134 mm
