Article No. 32403
SLOTTED COVERS 150, neck height 200 mm, class D 400
Asymmetrical, SW 14 mm, stainless steel, 1.0 m

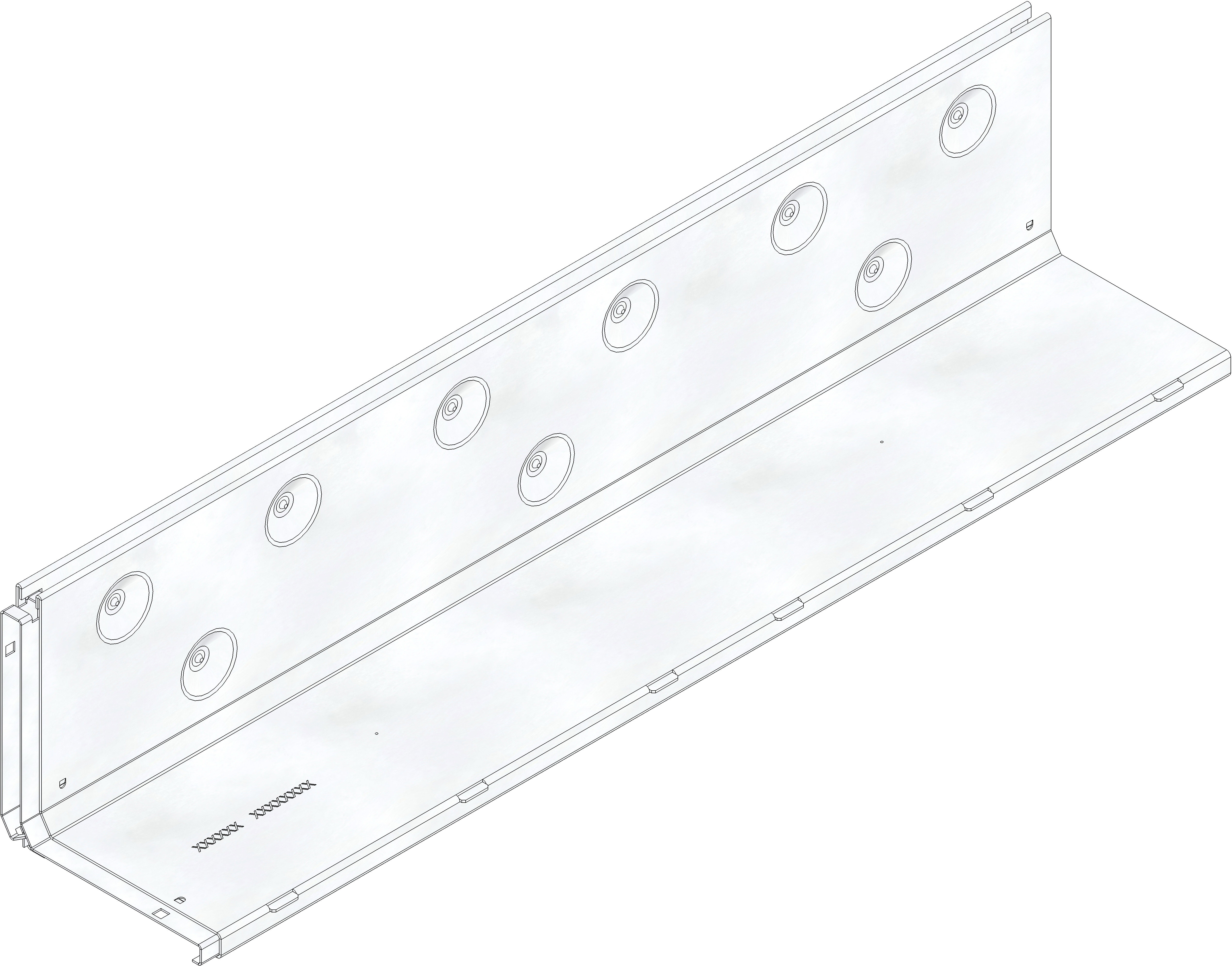

Product image

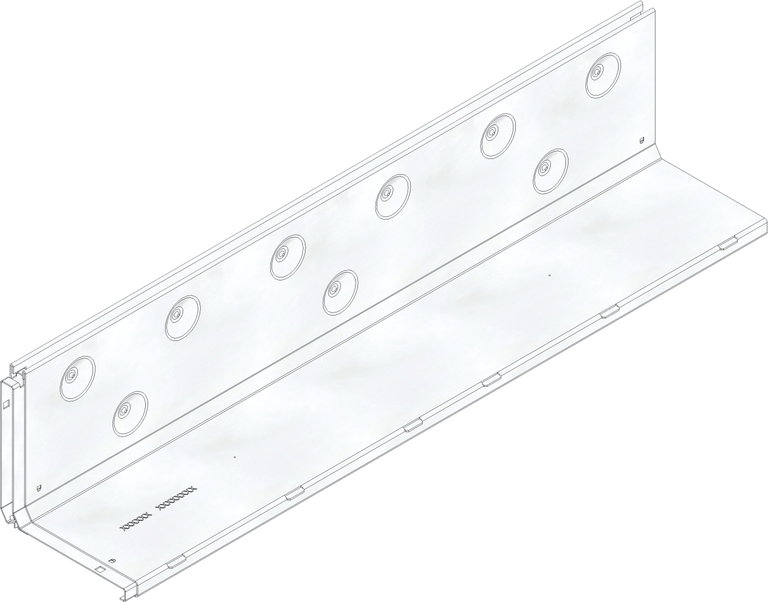

Technical drawing

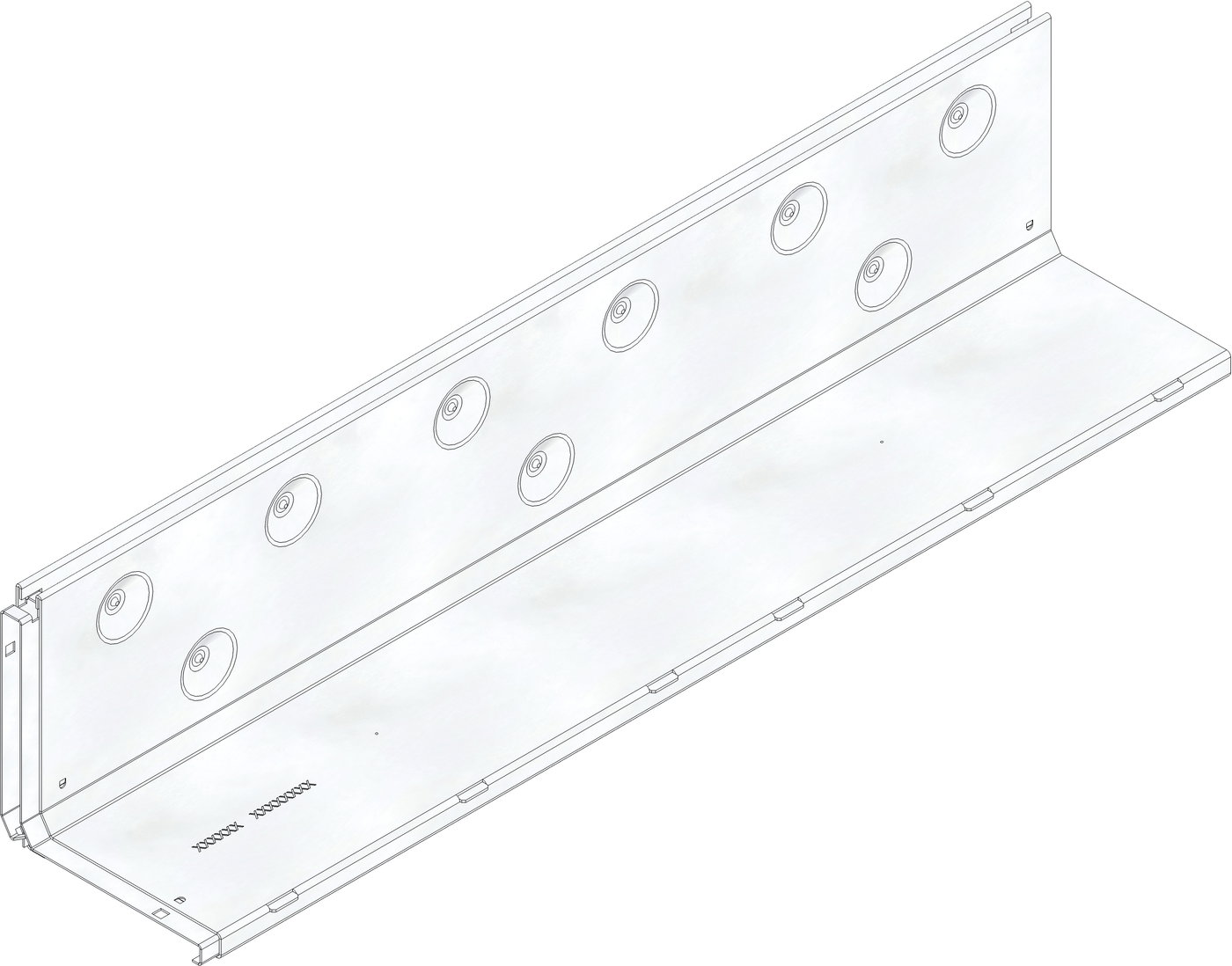

Drawing (CAD)
Technical information and metrics
Article No.
32403
Length
1000 mm
Width
206 mm
Height
229 mm
Inlay depth
222 mm
Weight
12.42 kg
Material
Stainless steel 1.4301
Intake cross-section
140.0 cm²/m
Nominal size
150
Inlet opening
1000 x 14 mm
Regulations
EN 1433
Sales text
Slotted cover SW 14 mm, neck height 200 mm, stainless steel, asymmetric, with integrated, full-surface connector, cl. D 400, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 150, 1 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 150 -Slotted cover SW 14 mm, neck height 200 mm, asymmetric, stainless steel CNS 1.4301, with integrated full-surface connector, load class A 15 - D 400 according to EN 1433, length 1000 mm, item no. 32403
Packaging unit
40
Tender Texts
Installation example
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
