Article No. 33360
SLOTTED COVERS 200, neck height 160, class C 250
asymmetric, SW 12 mm, galvanised, 1.0 m

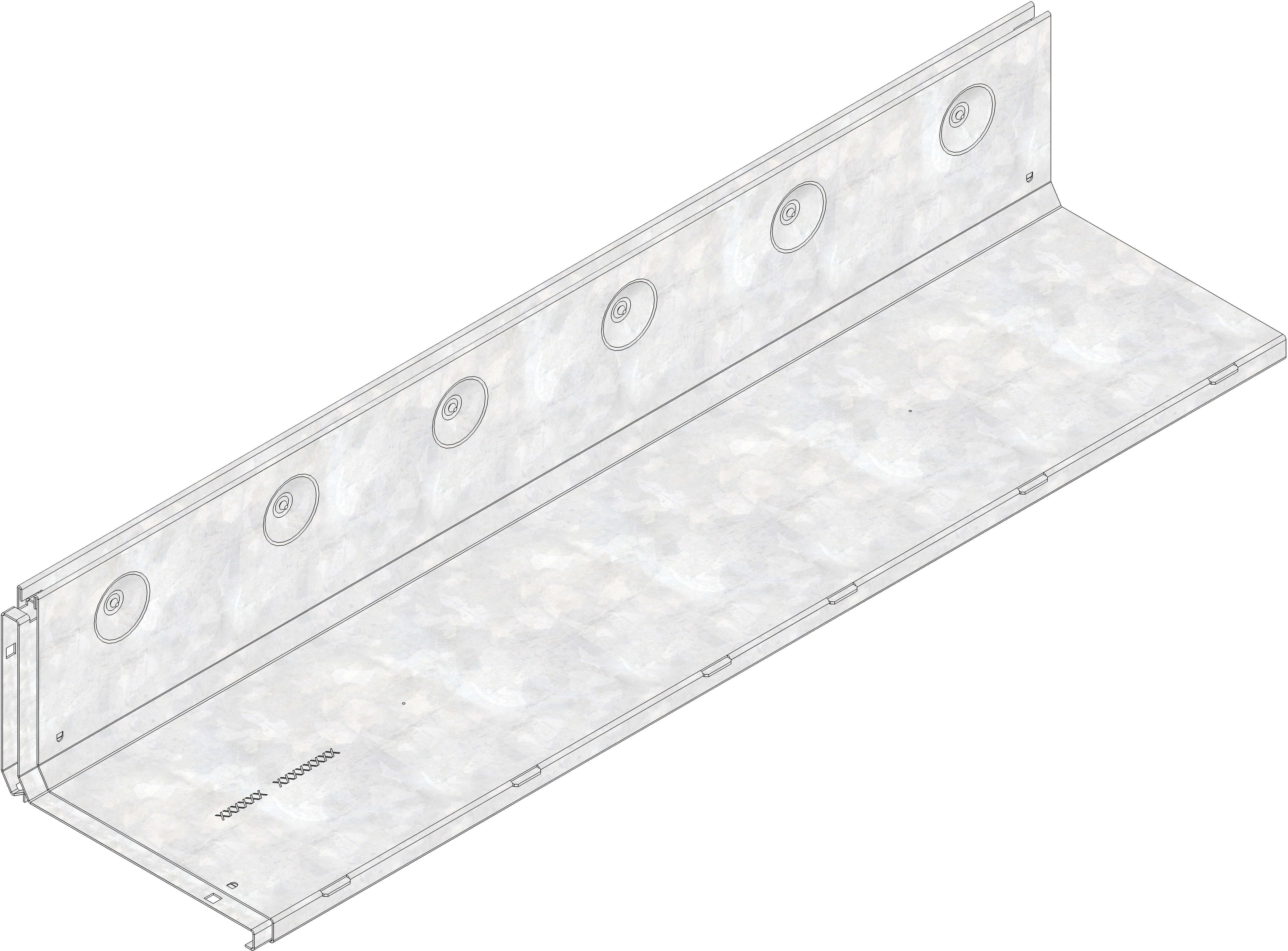

Product image
Technical drawing
Drawing (CAD)
Technical information and metrics
Article No.
33360
Length
1000 mm
Width
256 mm
Height
189 mm
Inlay depth
181 mm
Weight
10.04 kg
Material
strip galvanized steel
Intake cross-section
120.0 cm²/m
Nominal size
200
Inlet opening
1000 x 12 mm
Regulations
EN 1433, DIN 19580
Sales text
Slotted cover SW 12 mm, neck height 160 mm, galvanised, asymmetric, with integrated, full-surface connector, cl. C 250, FASERFIX KS/ RECYFIX PRO 200, 1 m
Product description
FASERFIX KS/ RECYFIX PRO 200 -Slotted cover SW 12 mm, neck height 160 mm, asymmetric, galvanised, with integrated full-surface connector, load class A 15 - C 250 according to EN 1433, length 1000 mm, item no. 33360
Packaging unit
32
Tender Texts
Installation example
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
