Article No. 7800
SPORTFIX channels with track boundaries
Type 010, 1.0 m

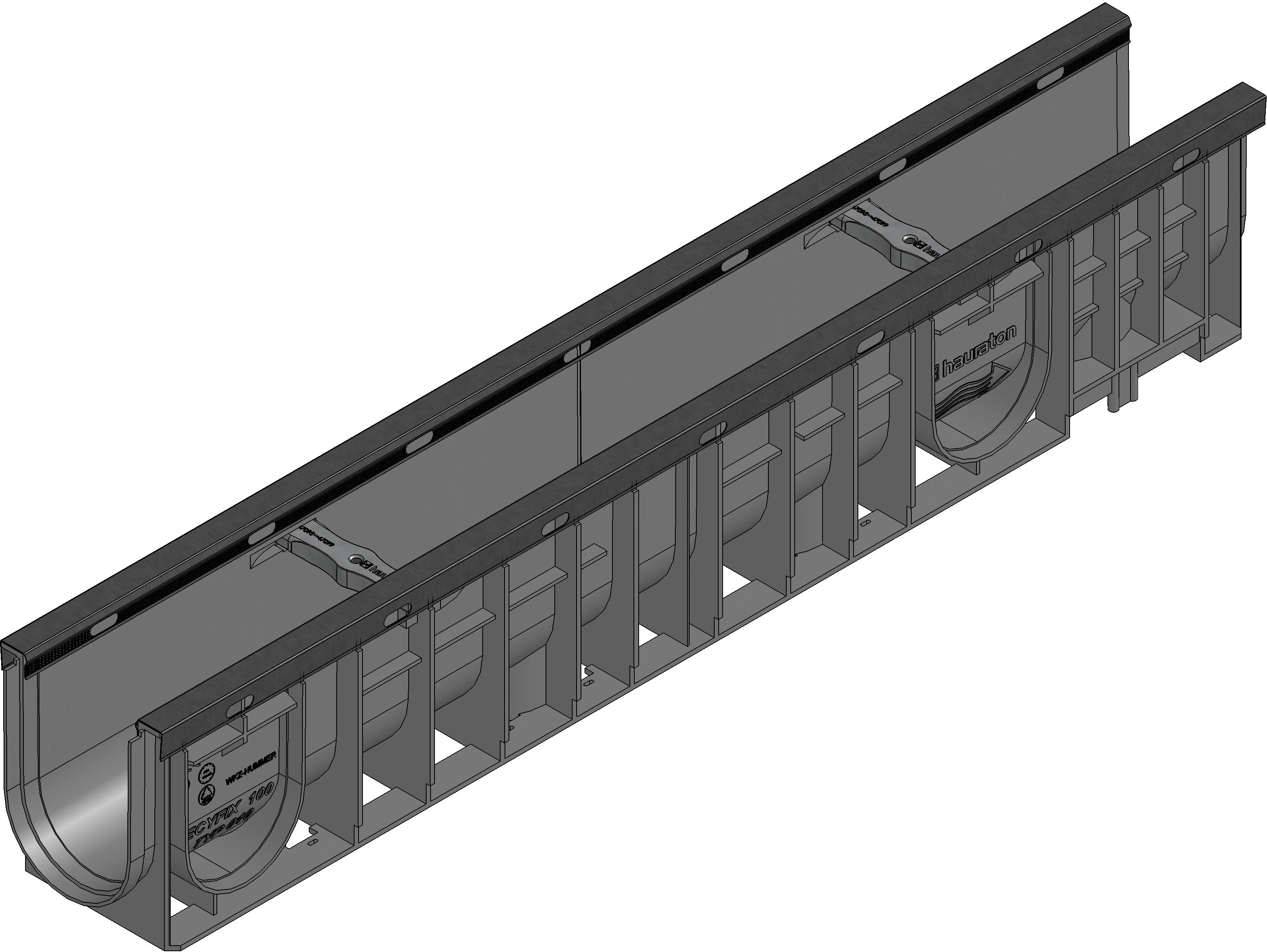

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
7800
Length
1000 mm
Width
146 mm
Height
182 mm
Weight
3.10 kg
Material
KTL coated steel, recycled, modified Polypropylene
Height of angle housing
-
Nominal size
100
Internal channel cross-section
142 cm²
Fall
-
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
KTL coated steel
Regulations
EN 1433 + IAKS
Sales text
SPORTFIX Channel body type 010 with edge frames made of KTL-coated steel, 1 m
Product description
SPORTFIX type 010 - Channel body, made of recycled polypropylene, with integrated edge frames, KTL-coated, for installation of running track surface, LxWxH 1000x146x182 mm, item no. 7800
Packaging unit
70
Tender Texts
Installation example
running track / playing field class A 15,
