Article No. 7403
SPORTFIX Distribution shaft

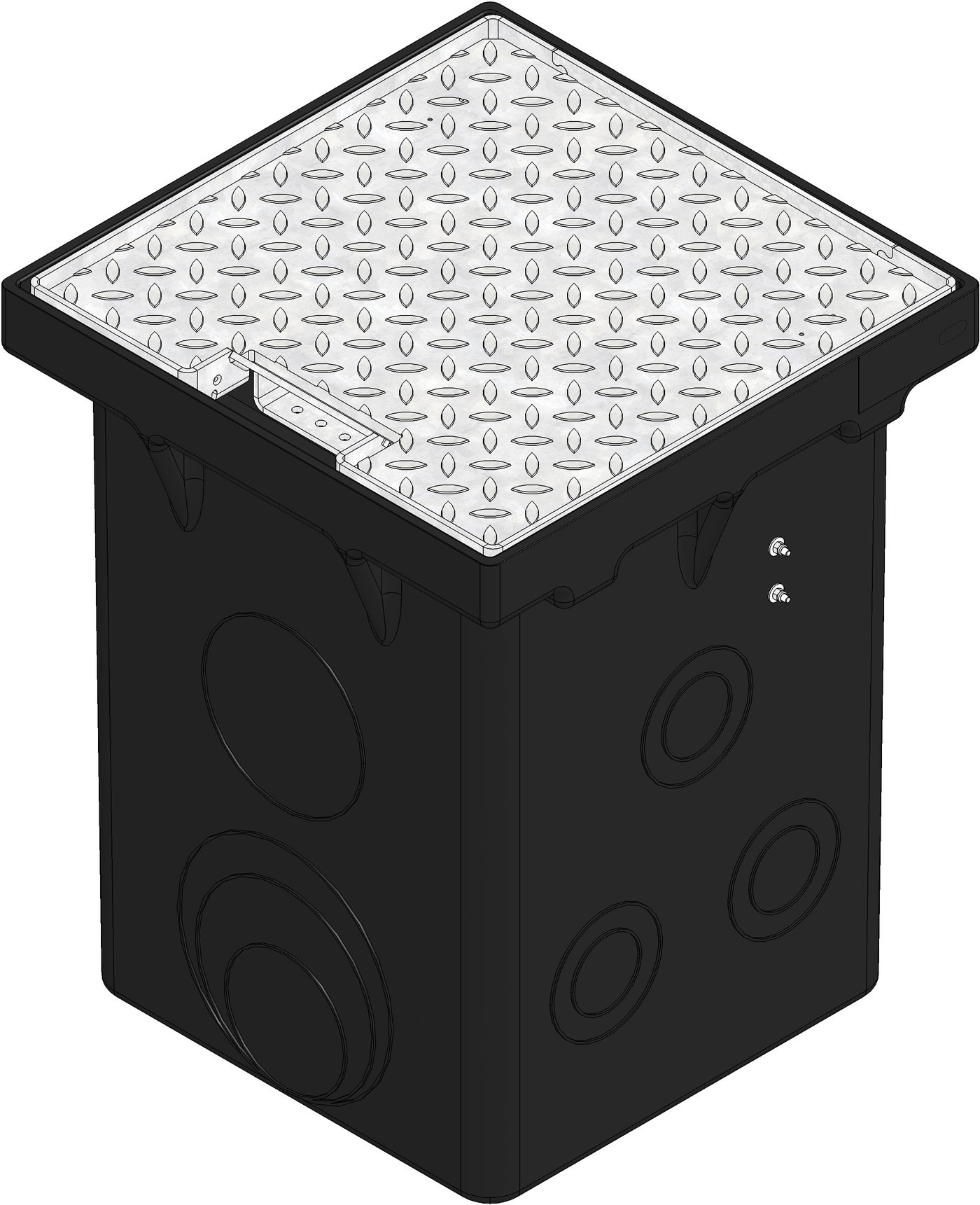

SPORTFIX distribution chamber made of composite, with grating, closed, galvanised, with bulb plate, 0.5 m

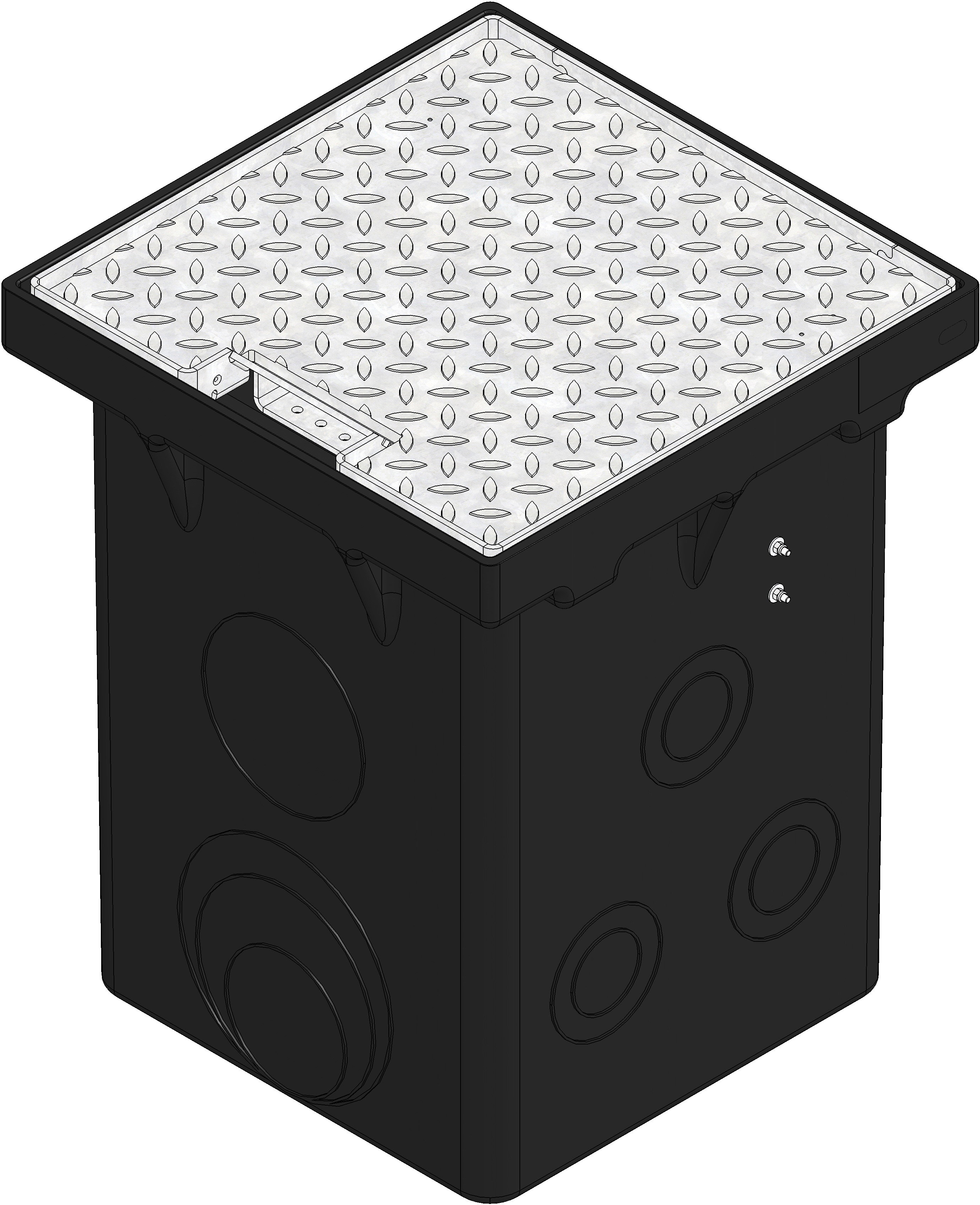

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
7403
Length
500 mm
Width
500 mm
Height
624 mm
Weight
37.94 kg
Material
hot-dip galvanised steel, PE-MD
Nominal size
-
Regulations
EN 1433
Sales text
SPORTFIX Distribution chamber made of MDPE, with grating, closed, galvanised, with bulb plate, damped, cl. B 125, 0.5 m
Product description
SPORTFIX Distribution chamber made of medium density polyethylene (MDPE), with steel cover, galvanised, damped, with 14 mm recess in the cover for individual filling, load class A 15 - B 125, LxWxH 500x500x624 mm, item no. 7403
Packaging unit
4
Tender Texts
Installation guide
Installation guide
Installation example
running track / artificial turf class A 15,
running track / artificial turf class B 125,
Maintenance and operating instructions
