Article No. 7745
SPORTFIX Sand traps
Sand trap channel with mesh grating MW 30/30 mm, galvanised, 0.5 m

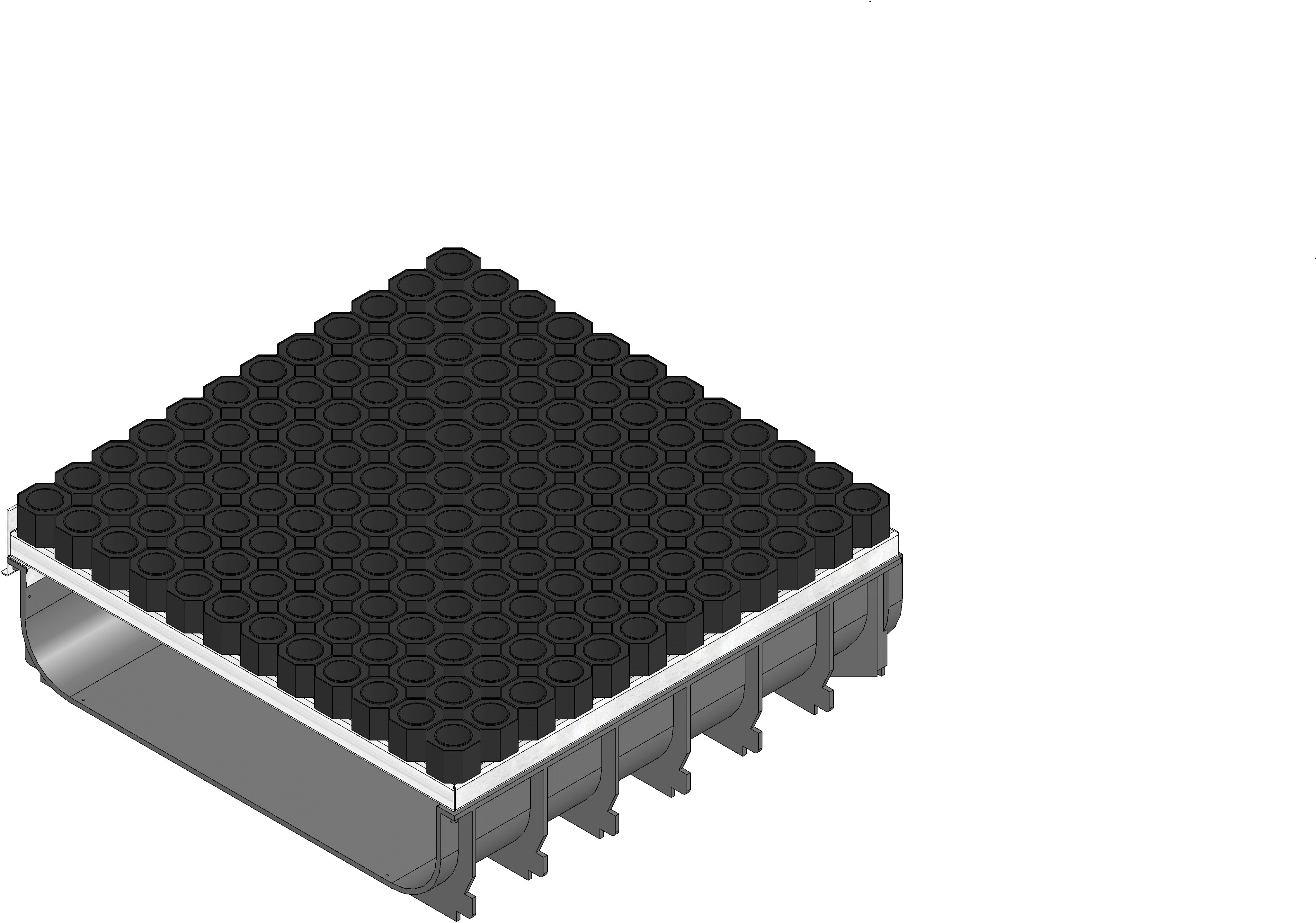

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
7745
Length
500 mm
Width
500 mm
Height
178 mm
Weight
10.76 kg
Material
hot-dip galvanised steel, recycled, modified Polypropylene
Height of angle housing
-
Nominal size
460
Internal channel cross-section
445 cm²
Fall
-
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
hot-dip galvanised steel
Regulations
EN 1433
Sales text
SPORTFIX Sand trap channel with mesh grating MS 30/30 mm, galvanised and securely fixed rubber mat, 0.5 m
Product description
SPORTFIX Sand trap channel, channel body made of recycled polypropylene, black, with preformed connection possibility DN/OD 110, with edge frame made from galvanised steel on one side for track connection, with mesh grating MS 30/30 mm, galvanised, and securely fixed rubber mat, pedestrian-accessible, LxWxH 500x500x163 mm, item no. 7745
Packaging unit
8
Tender Texts
Installation example
running track / sand pit class A 15,
running track / sand pit class A 15, double-breasted
