Article No. 10807
SPORTFIX Slotted Channels
Type 010, with turf edge, straight, 1.0 m

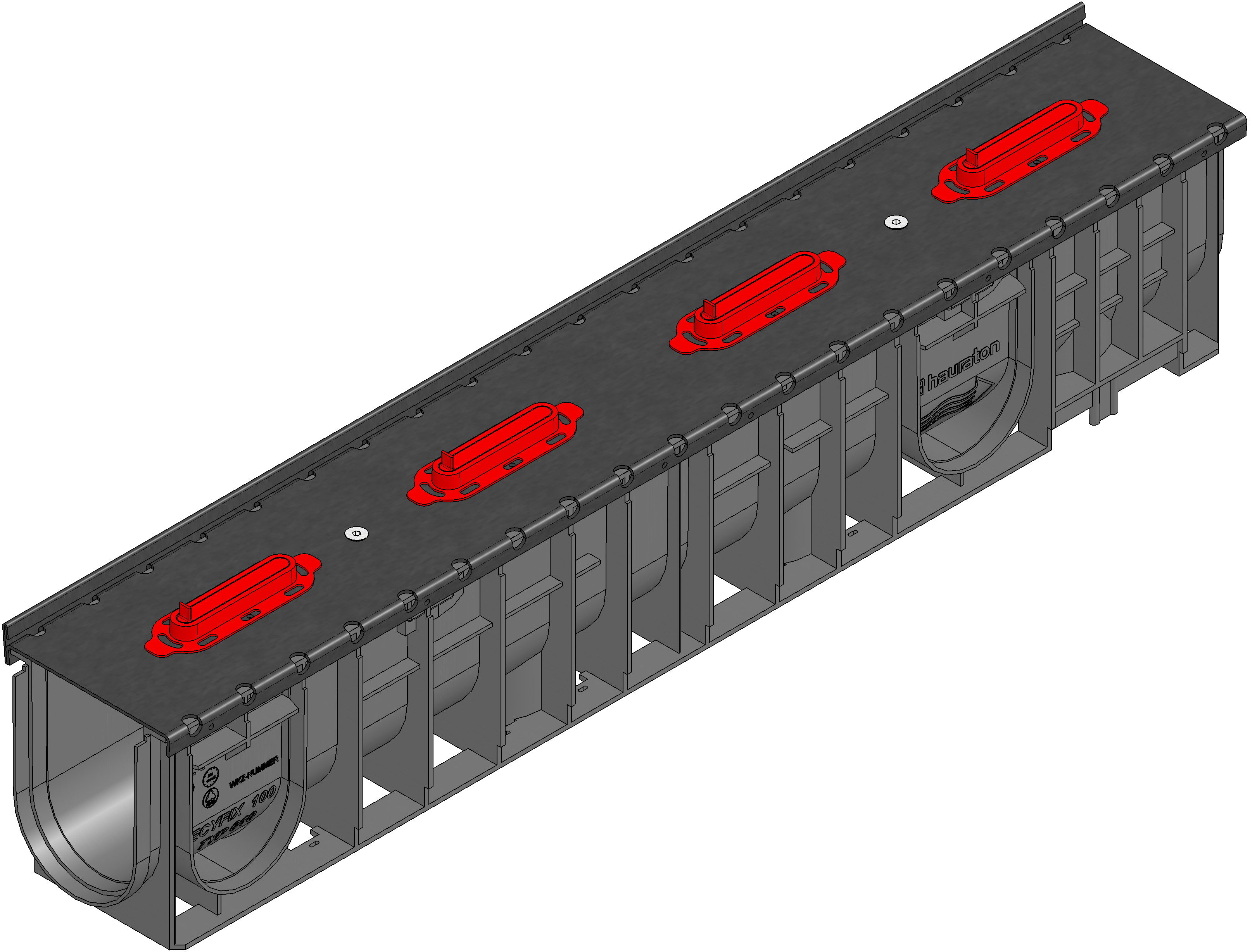

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10807
Length
1000 mm
Width
144 mm
Height
181 - 199 mm
Weight
5.79 kg
Height of angle housing
-
Nominal size
100
Internal channel cross-section
-
Fall
-
Fixing type
Loose blatant
Type according to DIN EN 1433
M
Regulations
EN 1433 + IAKS, DIN 19580
Sales text
SPORTFIX Slotted channel 100 type 010 with one-sided turf edge, straight, 1 m
Product description
SPORTFIX Slotted channel 100 type 010 made of recycled polypropylene, black, with integrated slotted cover with one-sided turf edge as synthetic surface boundary, KTL-coated, with EPDM inserts, brick-red, for an easy installation of running track surfaces, LxWxH 1000x155x199 mm, item no. 10807
Packaging unit
35
Tender Texts
Installation example
running track class A 15,
running track / playing field class A 15,
running track / playing field class A 15, with turf edge
running track class A 15, with track edging
running track class B 125,
running track / playing field class B 125,
