Article No. 7531
SPORTFIX STANDARD 100
Type 01 with slotted grating SW 75/9 mm, galvanised, locked, 1.0 m

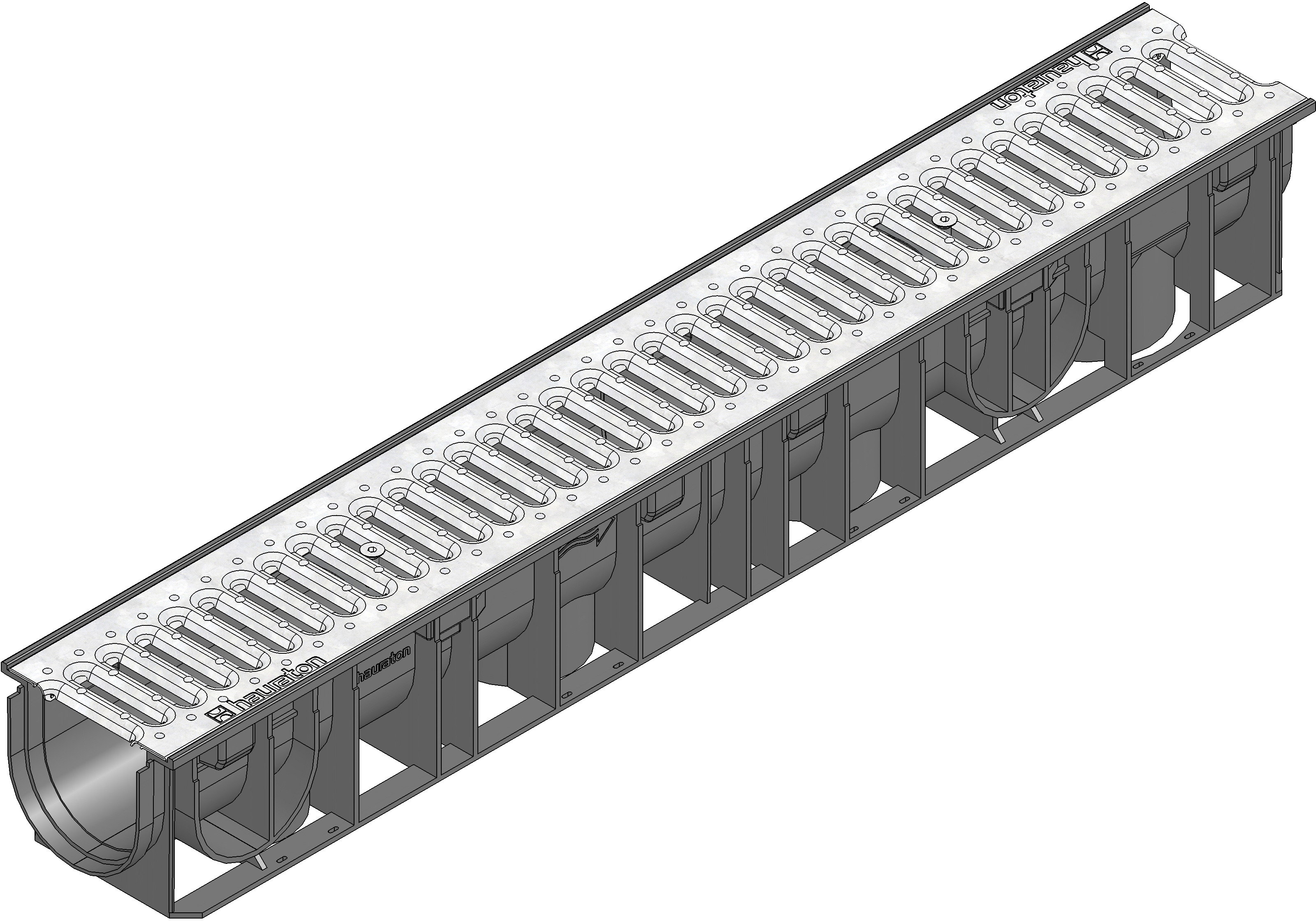

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
7531
Length
1000 mm
Width
150 mm
Height
134 mm
Inlay depth
3 mm
Weight
3.80 kg
Material
Galvanised steel, recycled polypropylene, RECYFIX Material (recycled PA), strip galvanized steel
Intake cross-section
266.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
strip galvanized steel
Regulations
EN 1433, EN 1433 + IAKS, DIN 19580
Sales text
SPORTFIX STANDARD 100 Channel type 01 with slotted grating SW 75/9 mm, galvanised, trafficable, locked, 1 m
Product description
SPORTFIX STANDARD 100 type 01 - Channel body made of recycled polypropylene, according to DIN 19580/EN 1433, with vertical connection possibility DN/OD 110, with slotted grating SW 75/9 mm, galvanised, trafficable, overlying, locked, LxWxH 1000x150x134 mm , item no. 7531
Packaging unit
49
