Article No. 10815
sump unit
for NW 100, with edge frames made of KTL-coated steel and silt bucket made of recycled PP, 0.5 m

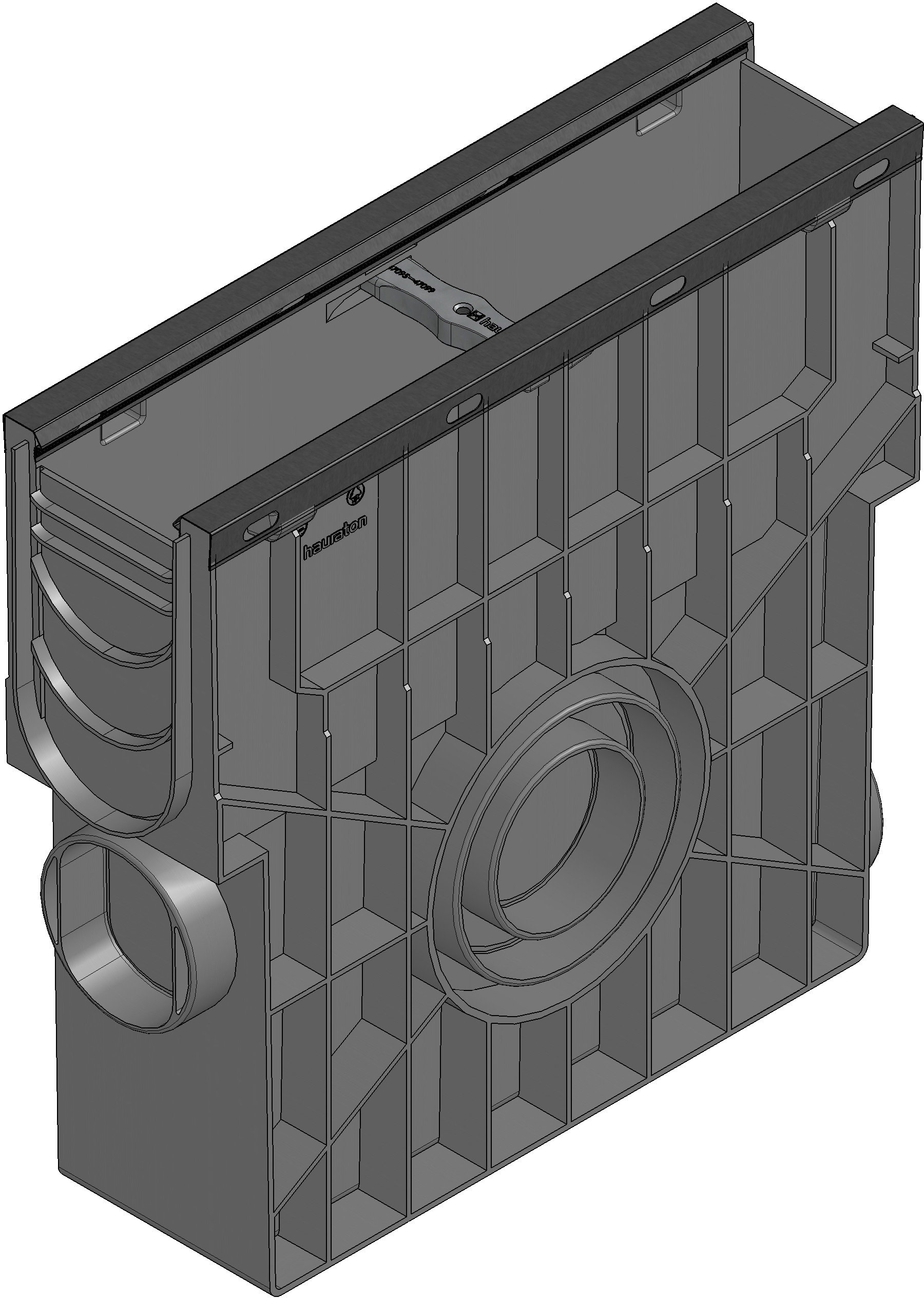

Product image
Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
10815
Length
500 mm
Width
146 mm
Height
484 mm
Weight
4.57 kg
Material
KTL coated steel, recycled polypropylene
Nominal size
100
Sales text
Sump unit with edge frames made of KTL-coated steel, with silt bucket made of recycled PP, SPORTFIX 100, 0.5 m
Product description
SPORTFIX Sump unit made of recycled polypropylene, with integrated edge frame made of KTL-coated steel, for easy installation of running track surface, 4-sided connection possibility (DN/OD 110 on the front side, DN/OD 110/160 on the sides), with removable silt bucket made of recycled polypropylene, LxWxH 500x146x484 mm, item no. 10815
Packaging unit
28
