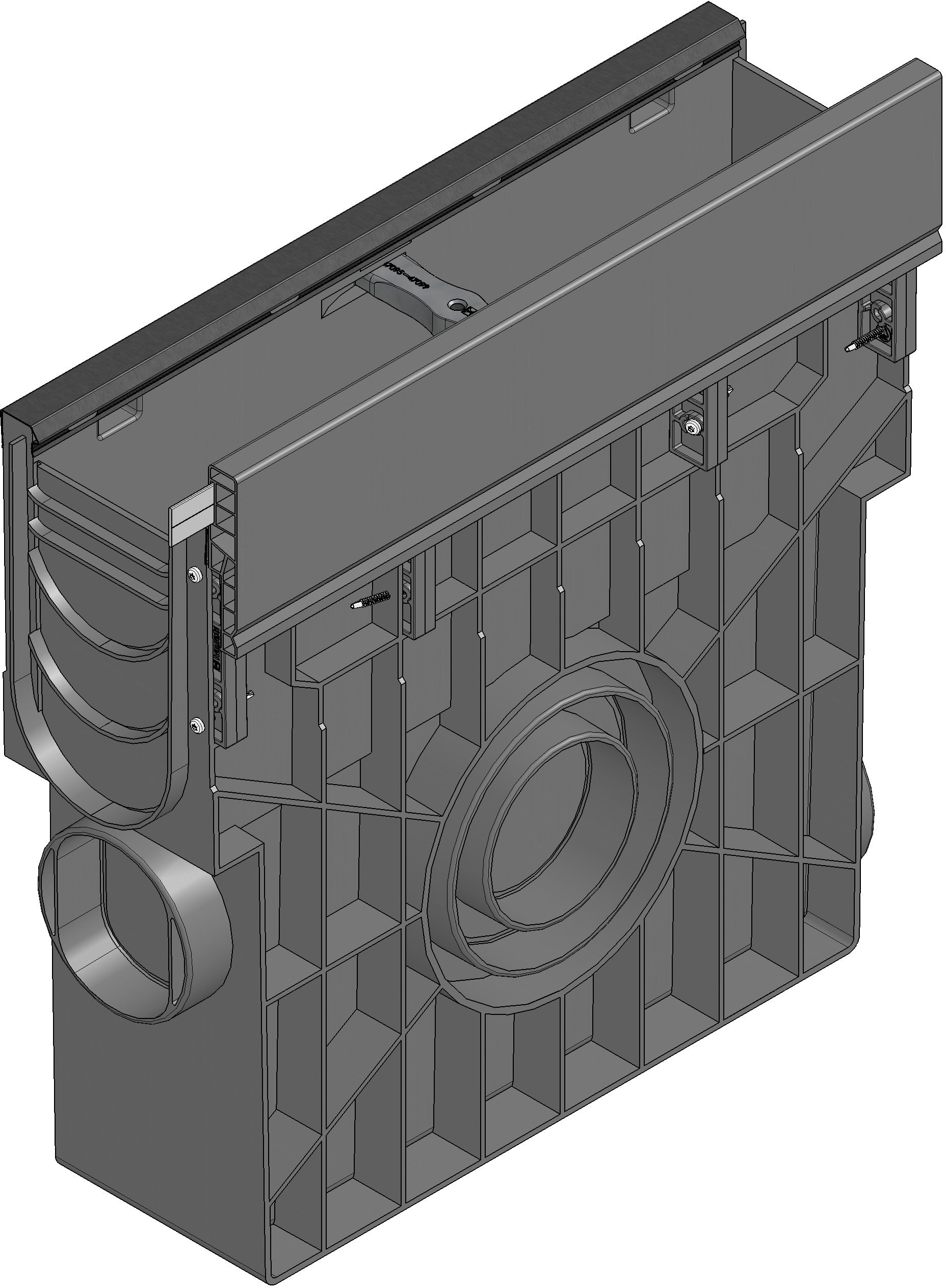

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10805
Length
500 mm
Width
167 mm
Height
524 mm
Weight
5.07 kg
Material
KTL coated steel, recycled polypropylene
Nominal size
100
Sales text
Sump unit with edge frames made of KTL-coated steel, with one-sided turf edge, with silt bucket made of recycled PP, SPORTFIX 100, 0.5 m
Product description
SPORTFIX Sump unit made of recycled polypropylene, with integrated edge frame made of KTL-coated steel, for easy installation of running track surface, with one-sided turf edge as synthetic surface boundary, 4-sided connection possibility (DN/OD 110 on the front side, DN/OD 110/160 on the sides), with removable silt bucket made of recycled polypropylene, according to the requirements of World Athletics. The stability of the channel base of alternative products must be demonstrated to the client before installation. LxWxH 500x167x524 mm, item no. 10805
Packaging unit
28
