Article No. 23761
sump unit
Ductile iron grating, SW 170/20 mm, KTL-coated, 0.5 m

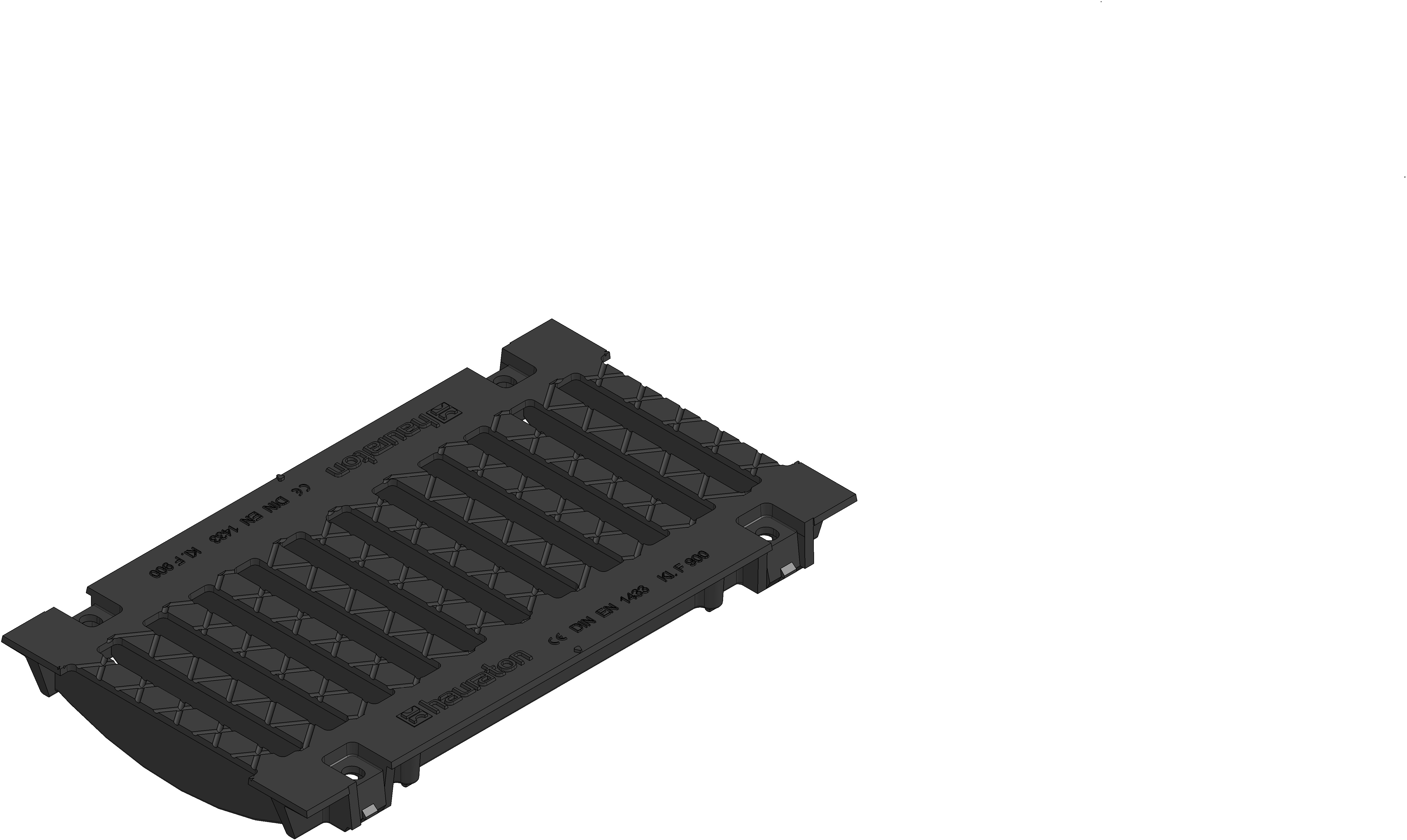

Product image
Technical drawing
Drawing
Top view
Technical information and metrics
Article No.
23761
Length
500 mm
Width
279 mm
Height
62 mm
Inlay depth
40 mm
Weight
13.07 kg
Material
Ductile iron GJS 500-7
Intake cross-section
833.0 cm²/m
Nominal size
200
Inlet opening
170 x 20 mm
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating SW 170/20 mm, KTL-coated, cl. F 900, FASERFIX SUPER 200, 0.5 m
Product description
FASERFIX SUPER 200 - Ductile iron grating SW 170/20 mm, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection, load class A 15 - F 900 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 23761
Packaging unit
84
