Article No. 47054
Trash boxes
for NW 100, with integrated edge frames and silt bucket made of recycled PP, with FIBRETEC design slotted grating SW 110/9 mm, in the colour Black, class C 250, locked, 0.5 m

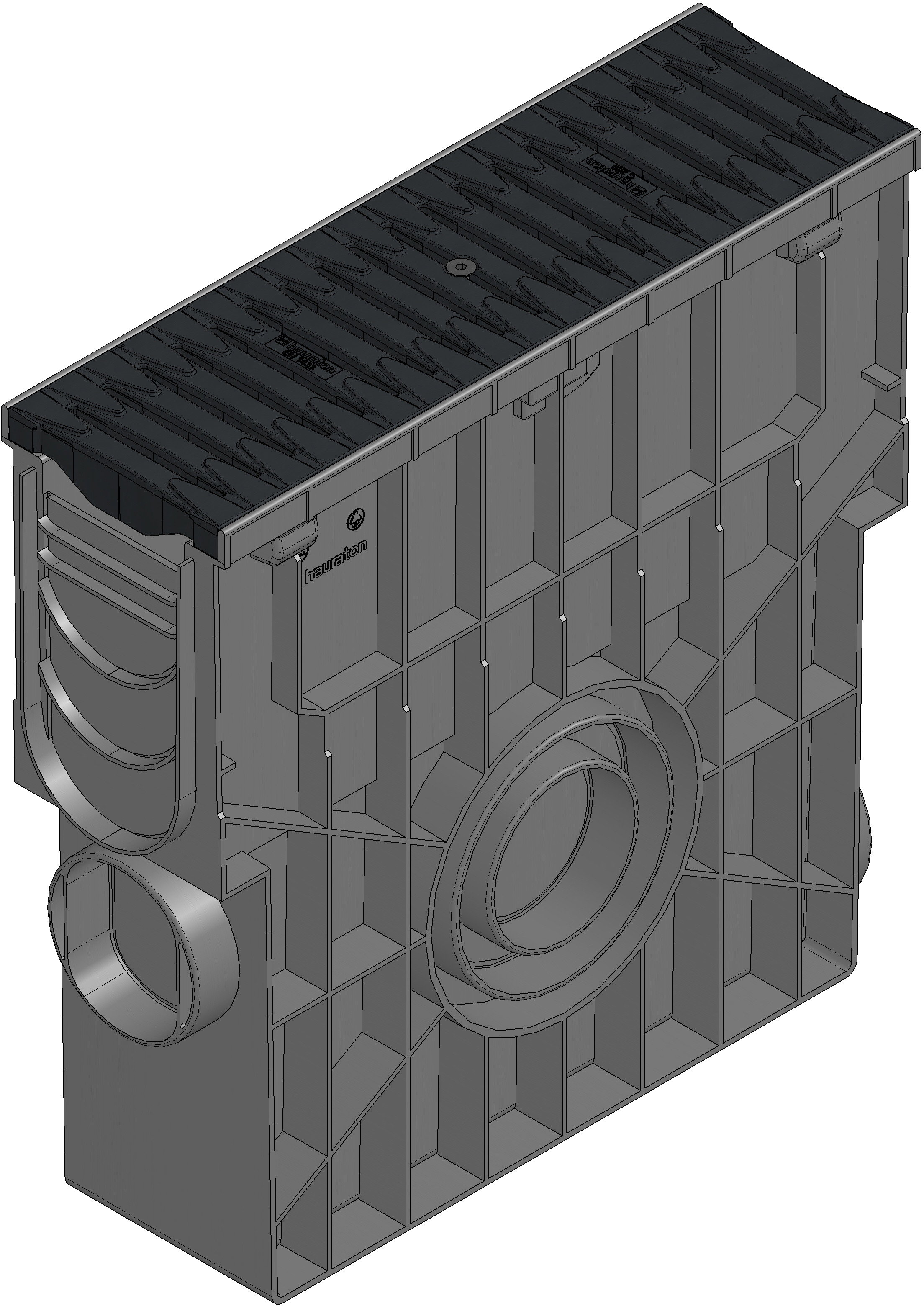

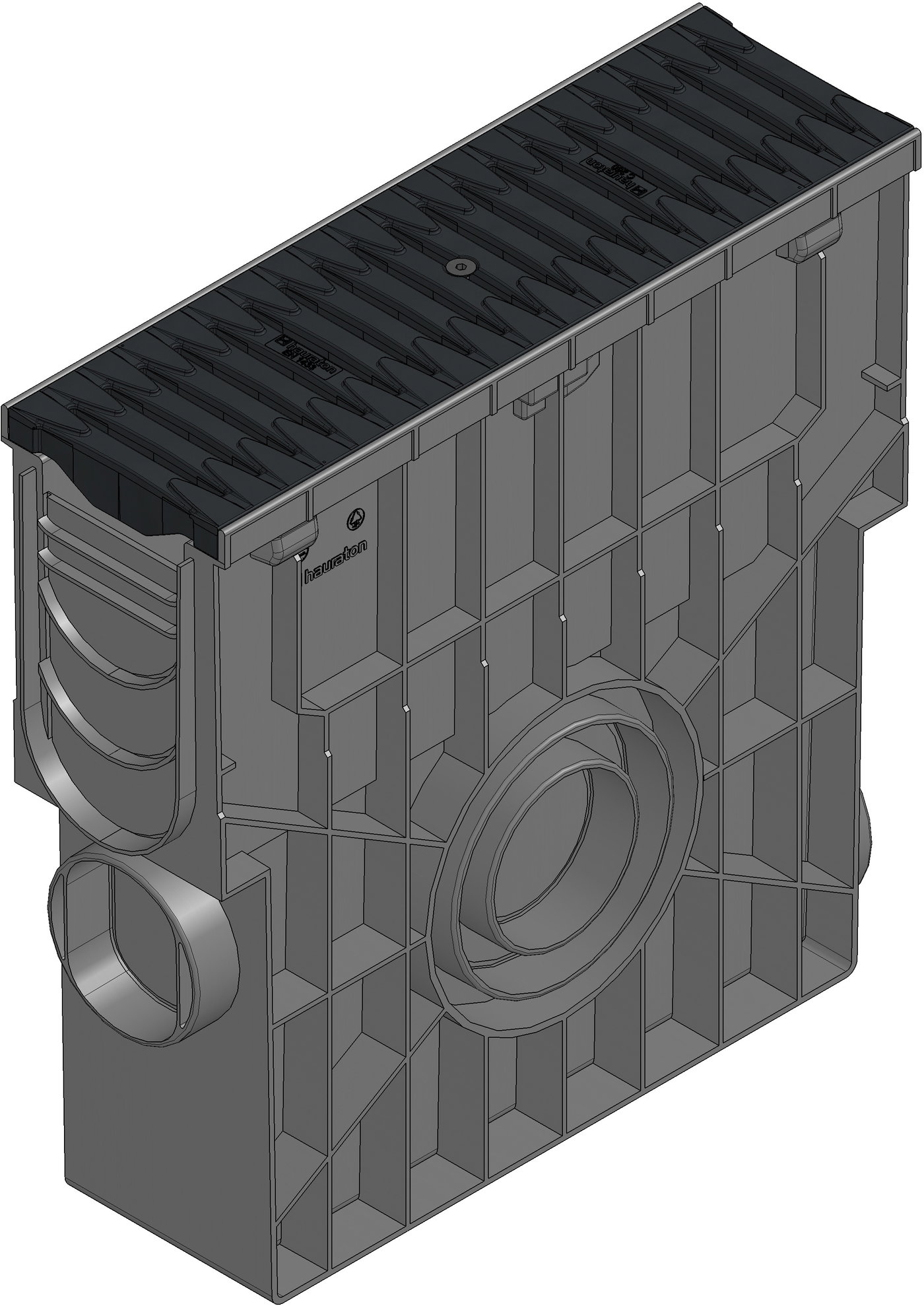

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
47054
Length
500 mm
Width
160 mm
Height
504 mm
Inlay depth
20 mm
Weight
5.89 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
372.0 cm²/m
Nominal size
100
Material grating
reinforced Polyamide
Regulations
EN 1433, DIN 51130, AS 4586, DIN 19580, EN 16165
Sales text
Sump unit with integrated edge frames, with FIBRETEC Design slotted grating SW 110/9 mm, black, cl. C 250, locked, with silt bucket made of recycled PP, RECYFIX PRO 100, 0.5 m
Product description
RECYFIX PRO 100 - Sump unit made of recycled polypropylene, with integrated edge frames, 4-sided preformed pipe connection element ( on the front sides DN/OD 110, on the sides DN/OD 110/160), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PRO 100, in FIBRETEC design slotted grating SW 110/9 mm, made of fibre-reinforced polyamide, black, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 500x160x504 mm , item no. 47054
Packaging unit
28
