Article No. 36003
sump unit
for NW 100, with removable silt bucket made of recycled PP, with ductile iron grating 110/9 mm, in FIBRETEC design, KTL-coated, cl. D 400, locked, 0.5 m

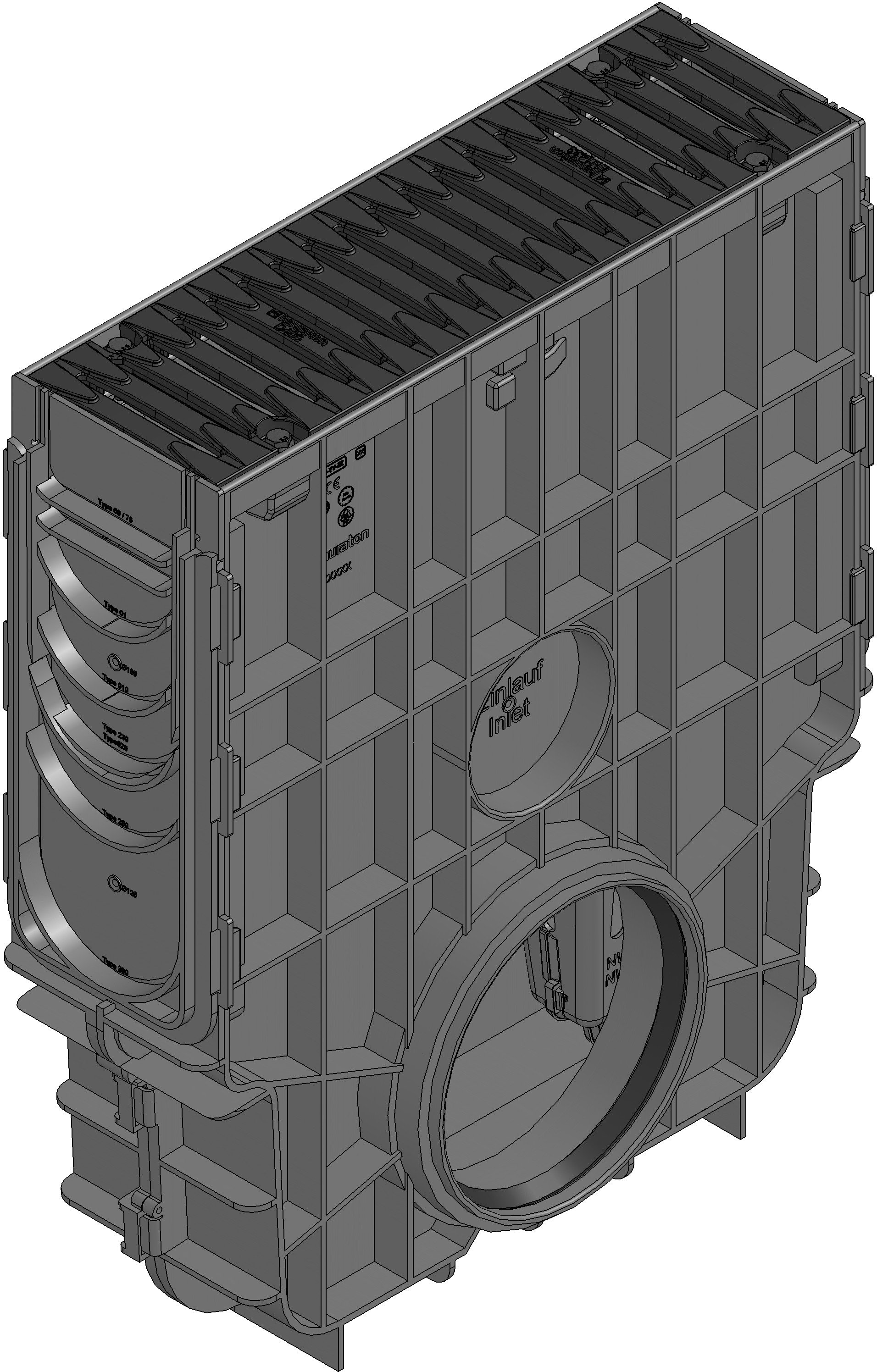

Product image
Top view
Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
36003
Length
510 mm
Width
162 mm
Height
643 mm
Inlay depth
20 mm
Weight
10.95 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled polypropylene, Steel black galvanised
Intake cross-section
330.0 cm²/m
Nominal size
100
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with integrated edge frames, with ductile iron grating SW 110/9 mm in FIBRETEC design, KTL-coated, Kl. D 400, locked, with silt bucket made of recycled PP, RECYFIX MONOTEC 100, 0.5 m
Product description
RECYFIX MONOTEC 100 - Sump unit made of recycled polypropylene, with integrated edge frames, lateral two-sided preformed pipe connection element DN/OD 200, with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX MONOTEC 100, with ductile iron grating 110/9 mm, in FIBRETEC design, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, load class A 15 - D 400 according to EN 1433 with 4-fold-bolting, LxWxH 500x162x643 mm, item no. 36003
Packaging unit
8
