Article No. 48754
sump unit
for NW 100, with silt bucket made of recycled PP, with ductile iron grating, SW 100/10 mm, black, class D 400, fourfold locking, 0.5 m

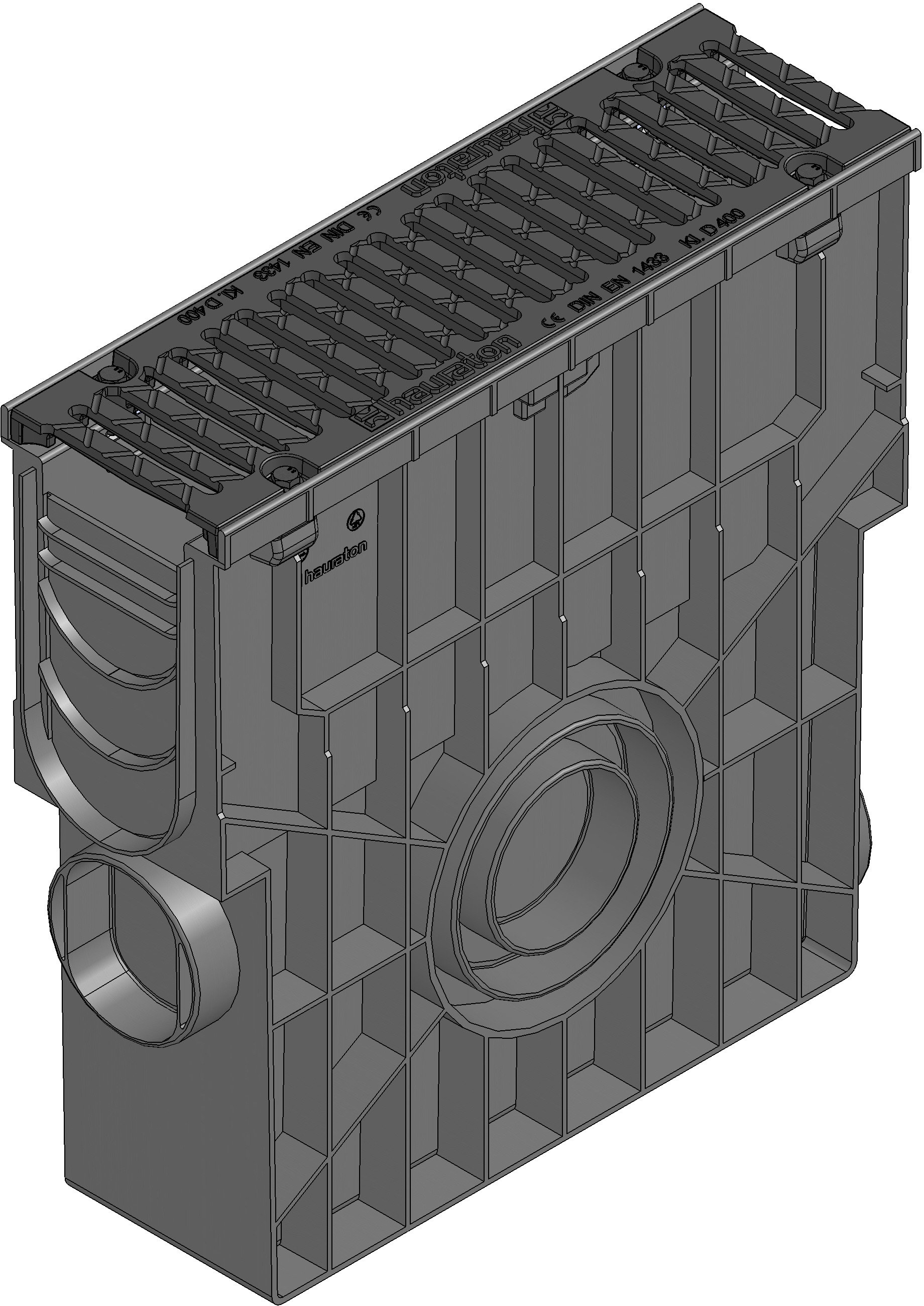

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
48754
Length
500 mm
Width
160 mm
Height
504 mm
Inlay depth
20 mm
Weight
8.79 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, Steel black galvanised
Intake cross-section
426.0 cm²/m
Nominal size
100
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with ductile iron grating SW 104/10 mm, black, cl. D 400, with silt bucket made of recycled PP, RECYFIX NC 100, 0.5 m
Product description
RECYFIX NC 100 - Sump unit made of recycled polypropylene, with integrated edge frames, 4-sided pipe connection element (on the front side DN/OD 110, on the side DN/OD 110/160), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of all channel types RECYFIX NC 100, with ductile iron grating SW 104/10 mm, made of spheroidal ductile iron EN-GJS-500-7, black, 4-fold bolting, load class A 15 - D 400 according to EN 1433, LxWxH 500x160x504 mm, item no. 48754
Packaging unit
28
