Article No. 40259
sump unit
for NW 100, with silt bucket made of recycled PP, with GUGI-Ductile iron mesh grating MS 15/25 mm, black, class C 250, locked, 0.5 m

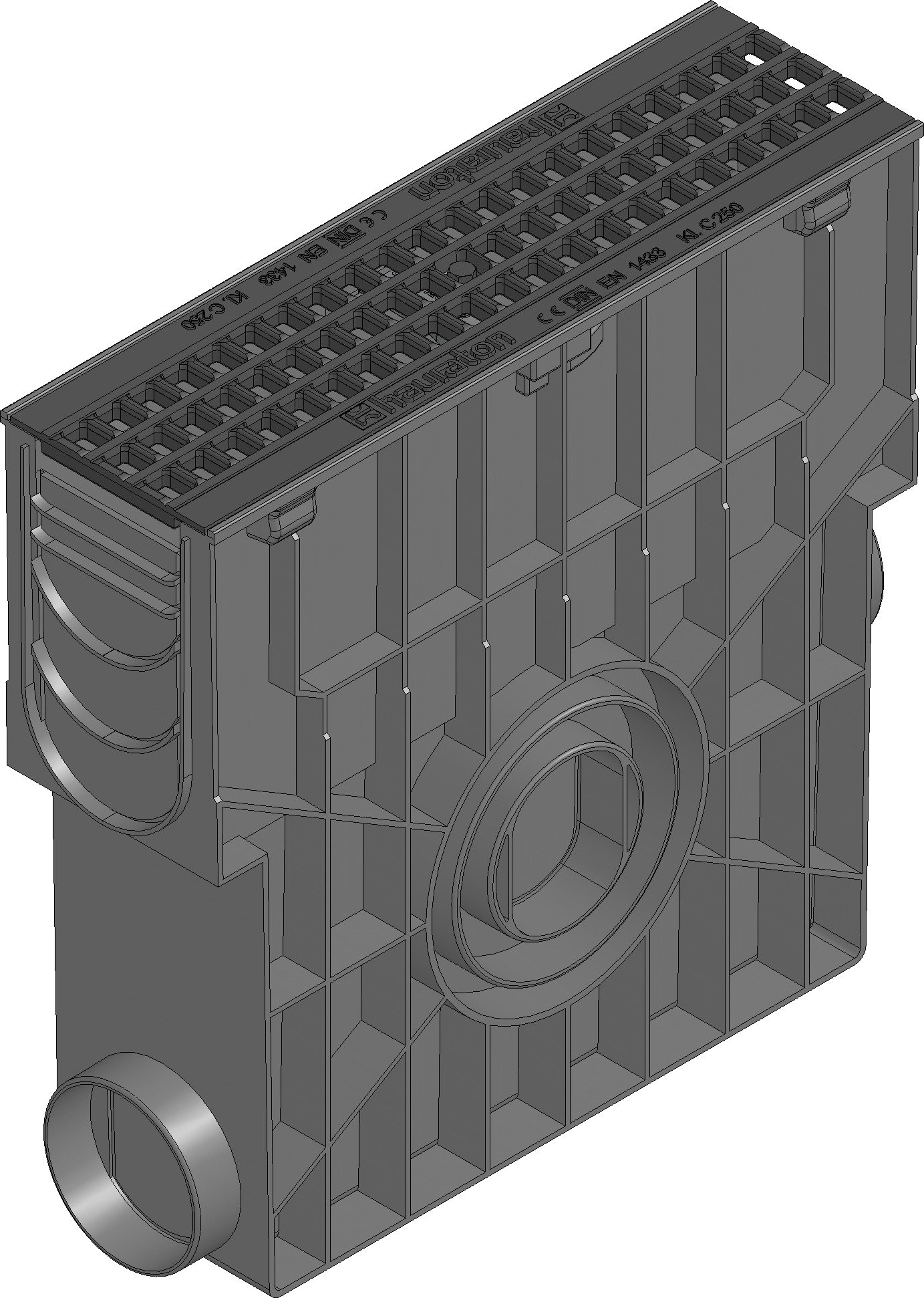

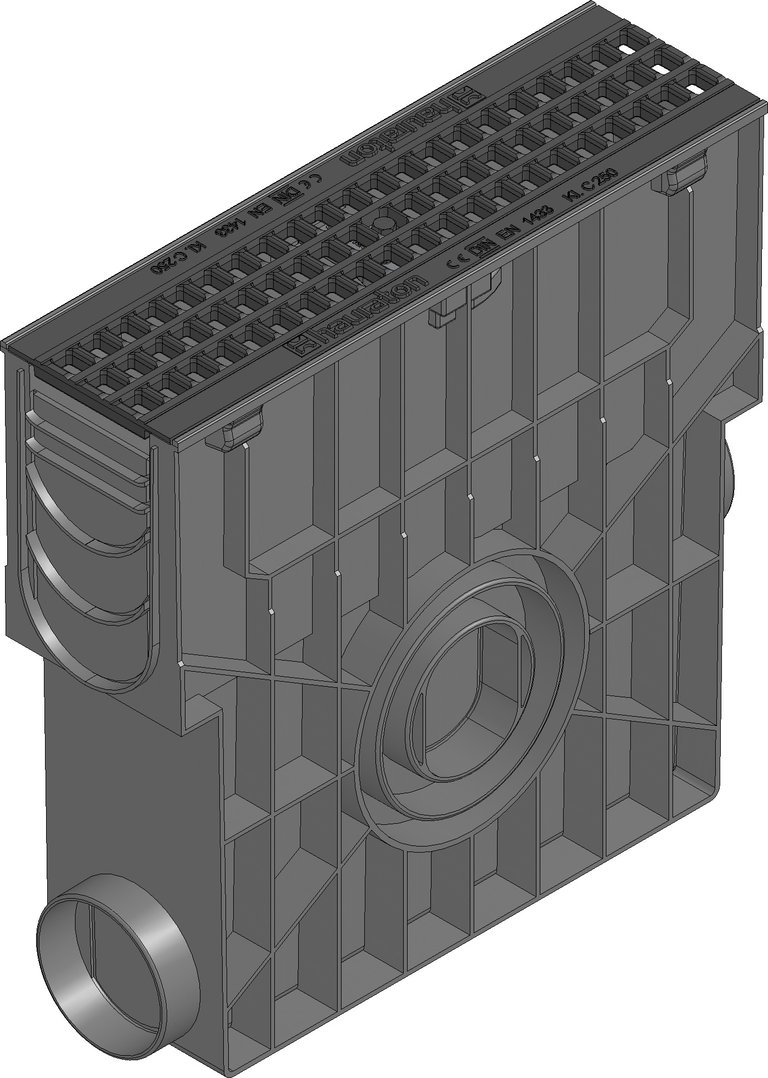

Product image
Technical drawing
Drawing
Drawing (CAD)
Top view
Technical information and metrics
Article No.
40259
Length
500 mm
Width
150 mm
Height
488 mm
Inlay depth
6 mm
Weight
7.16 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
453.0 cm²/m
Nominal size
100
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with GUGI-ductile iron mesh grating MS 15/25 mm, black, cl. C 250, locked, with silt bucket made of recycled PP, RECYFIX STANDARD 100, 0.5 m
Product description
RECYFIX STANDARD 100 - Sump unit made of recycled polypropylene, according to EN 1433, 4-sided connection possibility (front side DN /OD 110, on the side DN/OD 110/160), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX STANDARD 100, with GUGI-ductile iron mesh grating MS 15/25 mm made of spheroidal ductile iron EN-GJS-500-7, black, overlying, with longitudinal slide protection and locking, load class A 15 - C 250, LxWxH 500x150x488 mm, item no. 40259
Packaging unit
28
