Article No. 40075
sump unit
for NW 200, with silt bucket made of recycled PP, with ductile iron grating SW 204/18 mm, black, class E 600, with 4-fold bolting, 0.5 m

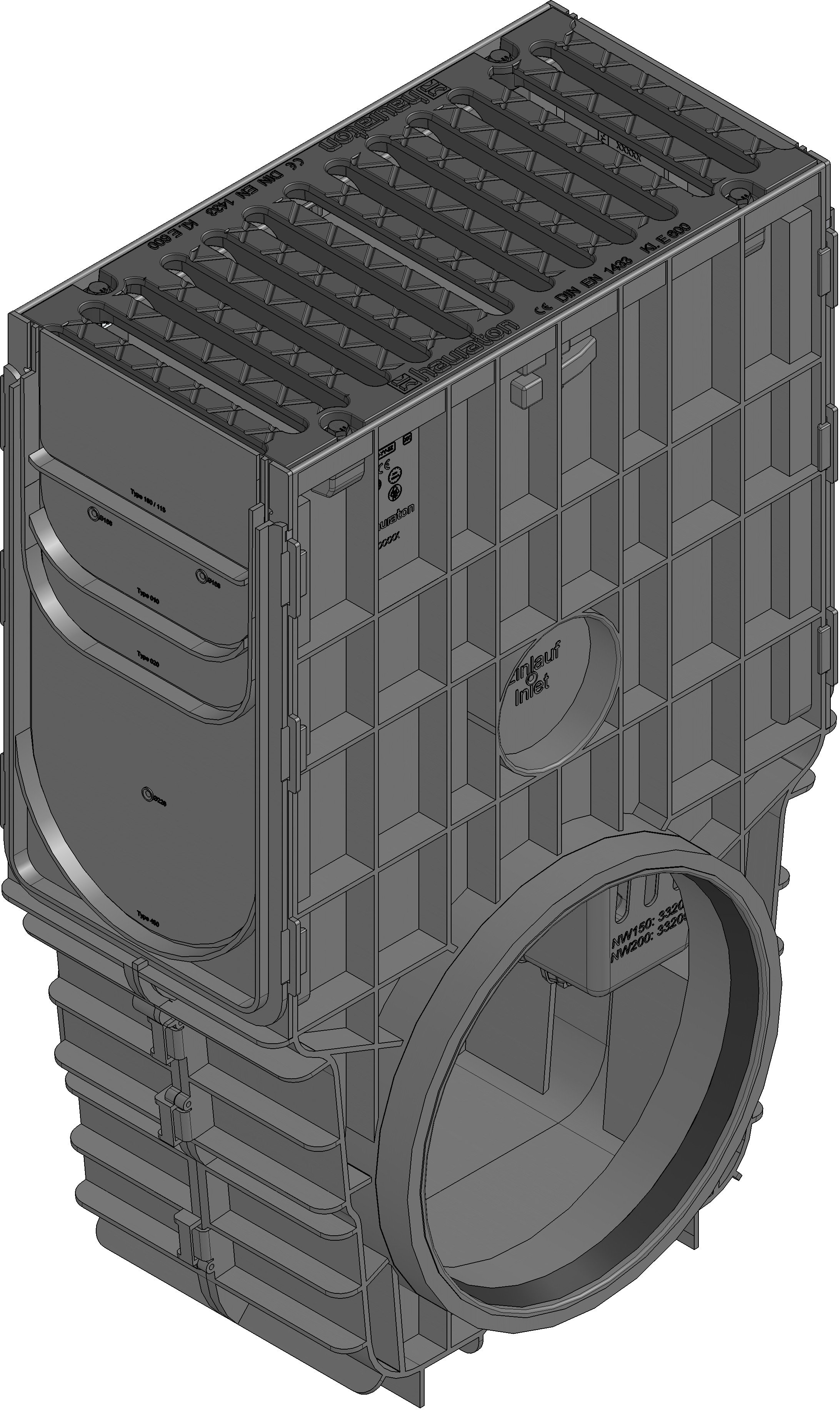

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
40075
Length
500 mm
Width
262 mm
Height
816 mm
Inlay depth
20 mm
Weight
-
Material
Ductile iron GJS 500-7, recycled polypropylene, Steel black galvanised
Intake cross-section
936.0 cm²/m
Nominal size
200
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with integrated edge frames, with ductile iron grating SW 204/18 mm, black, cl. E 600, with 4-fold bolting, with silt bucket made of recycled PP, with 2 end caps made of recycled PP, RECYFIX NC 200, 0.5 m
Product description
RECYFIX NC 200 - Sump unit made of recycled polypropylene, with integrated edge frame, on both sides preformed pipe connection element DN/OD 315, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX NC 200, with ductile iron grating SW 204/18 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, with 4-fold bolting, load class A 15 - E 600 according to EN 1433, LxWxH 500x262x816 mm, item no. 40075
Packaging unit
-
