Article No. 24050
sump unit
for NW 300, 2-part, with all-round edge frame made of galvanised steel and silt bucket made of galvanised steel, 0.51 m

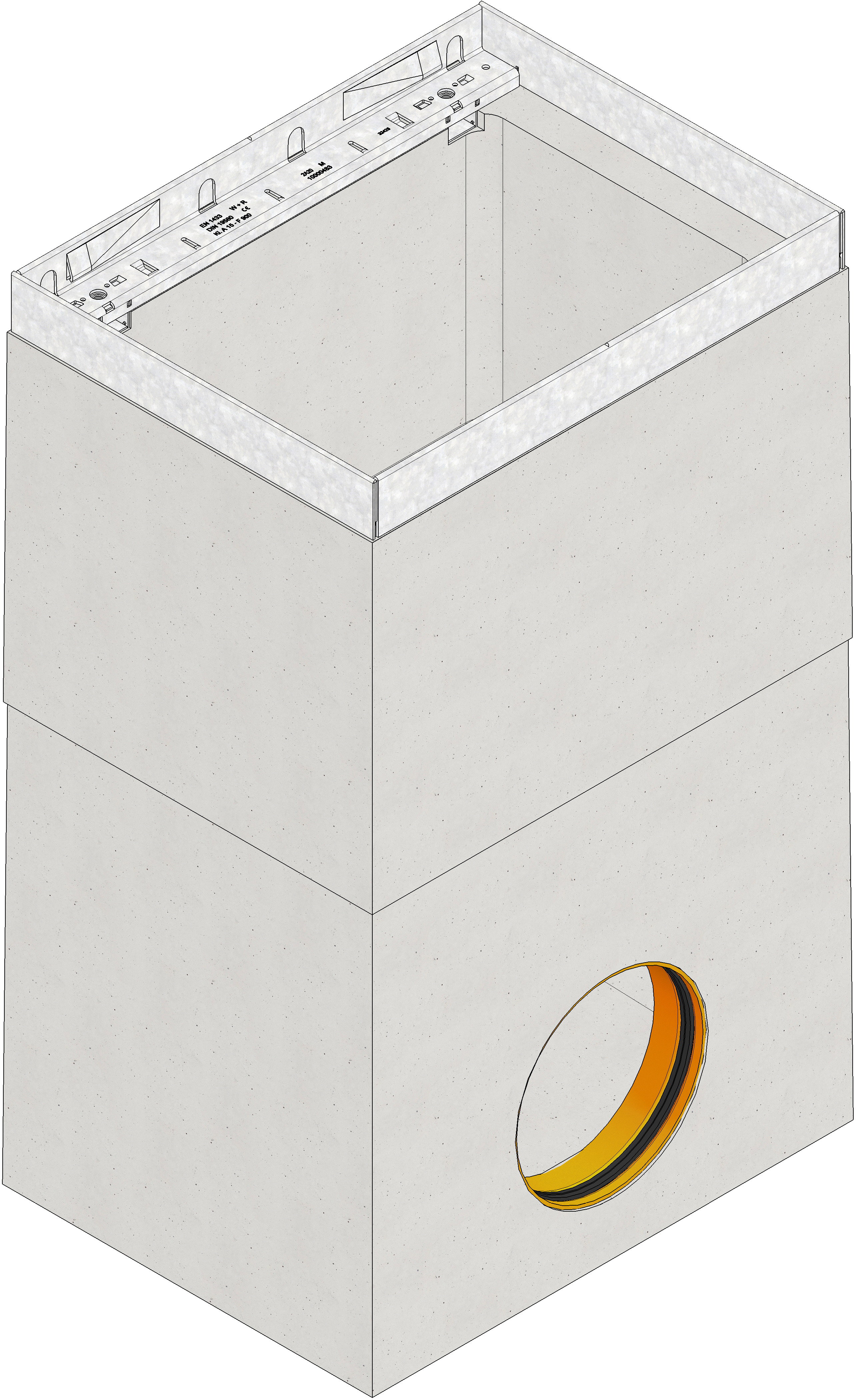

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
24050
Length
510 mm
Width
390 mm
Height
850 mm
Weight
183.50 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Nominal size
300
Regulations
EN 1433, DIN 19580
Sales text
Sump unit 2-part, with all-round edge frame made of galvanised steel, with silt bucket made of galvanised steel, FASERFIX SUPER 300, 0.51 m
Product description
FASERFIX SUPER - Sump unit, 2-part, made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with all-round edge frame made of galvanised steel and boltless quick-locking system SIDE-LOCK for quick and easy installation of the grating, 4-fold locking, one-sided connection possibility with integrated PVC-U socket DN/OD 200, with removable silt bucket made of galvanised steel, suitable for both-sided connection of all channel types FASERFIX SUPER 100 - 300, LxWxH 510x390x850 mm, item no. 24050
Packaging unit
6
