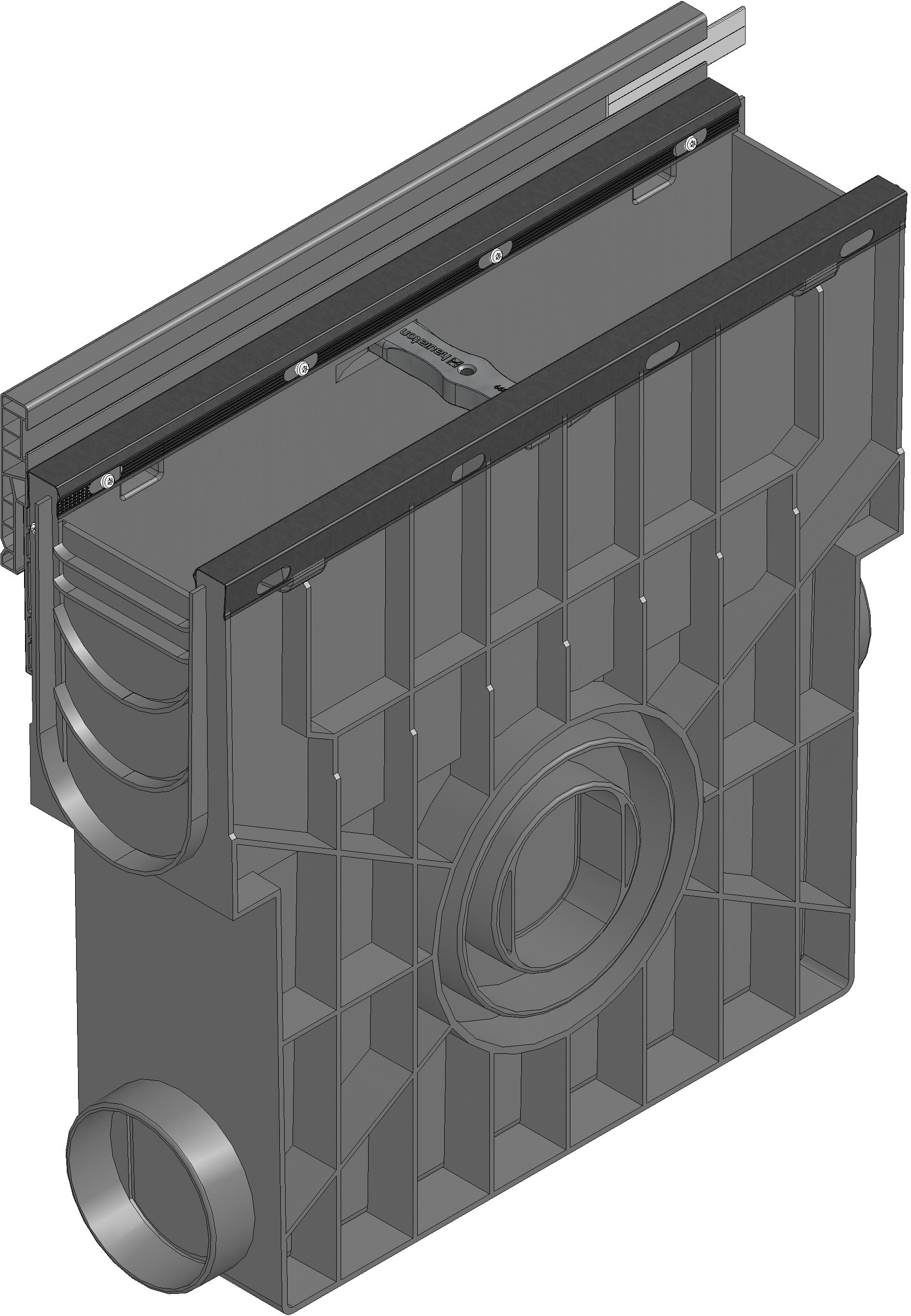

Product image
Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
7771
Length
500 mm
Width
166 mm
Height
524 mm
Weight
5.13 kg
Material
KTL coated steel, recycled, modified Polypropylene
Nominal size
100
Regulations
EN 1433 + IAKS
Sales text
SPORTFIX Sump unit with edge frames made of galvanised steel, KTL-coated, with one-sided turf edge, 0.5 m
Product description
SPORTFIX Sump unit, made of recycled polypropylene, with integrated edge frames made of galvanised steel, KTL-coated, for easy installation of running track surface, with one-sided turf edge, 4-sided preformed pipe connection element (on the front side DN/OD 110, on the sides DN/OD 110/160), with removable silt bucket made of composite, according to the requirements of World Athletics. The stability of the channel base of alternative products must be demonstrated to the client before installation. LxWxH 500x166x524 mm, item no. 7771
Packaging unit
28
Volume
0.0 l
