Name: DACHFIX STEEL 115, višina 45 mm | tip 45
SKU: PUG_PUBLEV6_ID843-65000
Price: 43.80 EUR
Availability: BackOrder

Predstavitev proizvoda

Predstavitev proizvoda, JPG
Prenesi Dodaj v moje dokumente
Predstavitev proizvoda, PDF
Prenesi Dodaj v moje dokumente

Tehnična risba

Risbe

Risbe, JPG
Prenesi Dodaj v moje dokumente
Risbe, PDF
Prenesi Dodaj v moje dokumente

Risba ( DWG)

Risba ( DWG), DWG
Prenesi Dodaj v moje dokumente

Data Sheet

Data Sheet, PDF
Prenesi Dodaj v moje dokumente

Tehnične informacije in mere

Šifra art.

65000

Dolžina

1000 mm

Širina

115 mm

Višina

45 mm

Teža

2.10 kg

nazivna širina|velikost sistema

115

Višina okvirja

20 mm

Naklon dna kanala

Svetli prerez kanalete

27 cm²

Pričvršćenje tip

Pritrditvena ročica

Material telesa kanala

pocinkano jeklo

Tip po DIN EN 1433

Typ M

Prodajno besedilo

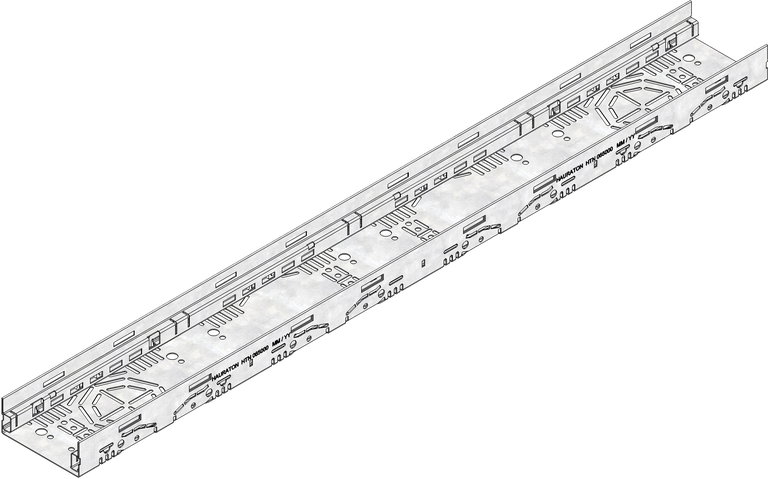

DACHFIX STEEL 115 Channel body type 45, galvanised, installation height 45 mm, 1 m

Opis izdelka

DACHFIX STEEL 115 type 45 - channel body, made of corrosion-protected galvanised steel, pedestrian and wheelchair accessible, grating support tilted inwards, with perforation on the sides and in channel base, with connection possibility in the channel base for pipe connector DN/OD 75 as well as lateral 8-fold connection possibility for cross-intersection channel, with integrated, optional 4-fold fixing anchor, LxWxH 1000x115x45 mm, item no. 65000

Brošura tekst

tip 45

Pakirna enota

396
