Name: DACHFIX STEEL 115, višina 75 mm | tip 75, 1,0 m
SKU: PUG_PUBLEV6_ID844-65025
Price: 43.80 EUR
Availability: InStock

Predstavitev proizvoda

Predstavitev proizvoda, JPG
Prenesi Dodaj v moje dokumente
Predstavitev proizvoda, PDF
Prenesi Dodaj v moje dokumente

Tehnična risba

Risbe

Risbe, JPG
Prenesi Dodaj v moje dokumente
Risbe, PDF
Prenesi Dodaj v moje dokumente

Risba ( DWG)

Risba ( DWG), DWG
Prenesi Dodaj v moje dokumente

Data Sheet

Data Sheet, PDF
Prenesi Dodaj v moje dokumente

Tehnične informacije in mere

Šifra art.

65025

Dolžina

1000 mm

Širina

115 mm

Višina

75 mm

Teža

2.68 kg

nazivna širina|velikost sistema

115

Višina okvirja

20 mm

Naklon dna kanala

Svetli prerez kanalete

60 cm²

Pričvršćenje tip

Pritrditvena ročica

Material telesa kanala

pocinkano jeklo

Tip po DIN EN 1433

Typ M

Prodajno besedilo

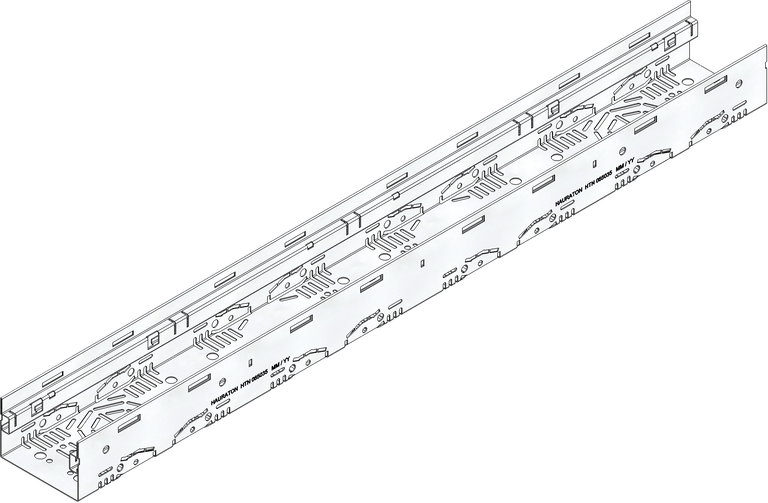

DACHFIX STEEL 115 Channel body type 75, galvanised, installation height 75 mm, 1 m

Opis izdelka

DACHFIX STEEL 115 type 75 - channel body, made of corrosion-protected galvanised steel, pedestrian and wheelchair accessible, grating support tilted inwards, with perforation on the sides and in channel base, with connection possibility in the channel base for pipe connector DN/OD 75 or DN/OD 100 as well as lateral 8-fold connection possibility for cross-intersection, with integrated, optional 4-fold fixing anchor, LxWxH 1000x115x75 mm, item no. 65025

Brošura tekst

tip 75, 1,0 m

Pakirna enota

234
