Šifra art. 65035

DACHFIX STEEL 115, višina 75 mm

tip 75, 1,0 m

Povpraševanje Tekst opis za popise

Imate vprašanja?

Naša izkušena ekipa za načrtovanje vam bo z veseljem pomagala.

Kontakt
Imate vprašanja?

Predstavitev proizvoda
Predstavitev proizvoda

Tehnična risba

Risba ( DWG)

Risba ( DWG)

Data Sheet

Tehnične informacije in mere
Šifra art.
65035
Dolžina
1000 mm
Širina
115 mm
Višina
75 mm
Teža
2.59 kg
nazivna širina|velikost sistema
115
Višina okvirja
20 mm
Naklon dna kanala
-
Svetli prerez kanalete
60 cm²
Pričvršćenje tip
Pritrditvena ročica
Material telesa kanala
nerjaveče jeklo 1.4301
Tip po DIN EN 1433
Typ M
Prodajno besedilo

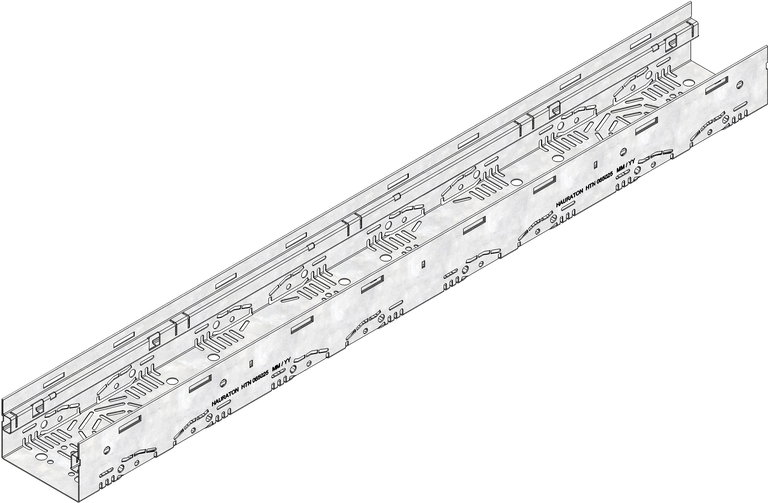

DACHFIX STEEL 115 Channel body type 75, stainless steel, installation height 75 mm, 1 m
Opis izdelka
DACHFIX STEEL 115 type 75 - Channel body, made of stainless steel CNS 1.4301, pedestrian and wheelchair accessible, grating support tilted inwards, with perforation on the sides and in channel base, with connection possibility in the channel base for pipe connector DN/OD 75 or DN/OD 100 as well as lateral 8-fold connection possibility for cross-intersection, with integrated, optional 4-fold fixing anchor, LxWxH 1000x115x75 mm, item no. 65035
Brošura tekst
tip 75, 1,0 m
Pakirna enota
234
