Name: DACHFIX STEEL 255, višina 45 mm | tip 45
SKU: PUG_PUBLEV6_ID895-65400
Price: 102.30 EUR
Availability: InStock

Predstavitev proizvoda

Predstavitev proizvoda, JPG
Prenesi Dodaj v moje dokumente
Predstavitev proizvoda, PDF
Prenesi Dodaj v moje dokumente

Tehnična risba

Risbe

Risbe, JPG
Prenesi Dodaj v moje dokumente
Risbe, PDF
Prenesi Dodaj v moje dokumente

Risba ( DWG)

Risba ( DWG), DWG
Prenesi Dodaj v moje dokumente

Data Sheet

Data Sheet, PDF
Prenesi Dodaj v moje dokumente

Tehnične informacije in mere

Šifra art.

65400

Dolžina

1000 mm

Širina

255 mm

Višina

45 mm

Teža

3.22 kg

nazivna širina|velikost sistema

255

Višina okvirja

20 mm

Naklon dna kanala

Svetli prerez kanalete

61 cm²

Pričvršćenje tip

Pritrditvena ročica

Material telesa kanala

pocinkano jeklo

Tip po DIN EN 1433

Typ M

Prodajno besedilo

DACHFIX STEEL 255 Channel body type 45, galvanised, installation height 45 mm, 1 m

Opis izdelka

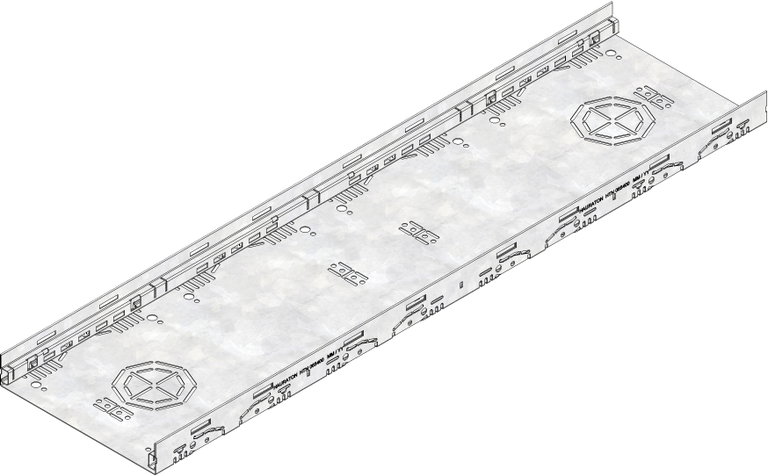

DACHFIX STEEL 255 type 45 - Channel body made of corrosion-protected galvanised steel, pedestrian and wheelchair accessible, grating support tilted inwards, with perforation on the sides and in channel base, with connection possibility in the channel base for pipe connector DN/OD 75 or DN/OD 100 as well as lateral 8-fold connection possibility for cross-intersection channel, with integrated, optional 4-fold fixing anchor, LxWxH 1000x255x45 mm, item no. 65400

Brošura tekst

tip 45

Pakirna enota

176
