Šifra art. 65425

DACHFIX STEEL 255, višina 75 mm

tip 75

Povpraševanje Tekst opis za popise

Imate vprašanja?

Naša izkušena ekipa za načrtovanje vam bo z veseljem pomagala.

Kontakt
Imate vprašanja?

Predstavitev proizvoda
Predstavitev proizvoda

Tehnična risba

Risba ( DWG)

Risba ( DWG)

Data Sheet

Tehnične informacije in mere
Šifra art.
65425
Dolžina
1000 mm
Širina
255 mm
Višina
75 mm
Teža
3.74 kg
nazivna širina|velikost sistema
255
Višina okvirja
20 mm
Naklon dna kanala
-
Svetli prerez kanalete
137 cm²
Pričvršćenje tip
Pritrditvena ročica
Material telesa kanala
pocinkano jeklo
Tip po DIN EN 1433
Typ M
Prodajno besedilo
DACHFIX STEEL 255 Channel body type 75, galvanised, installation height 75 mm, 1 m
Opis izdelka

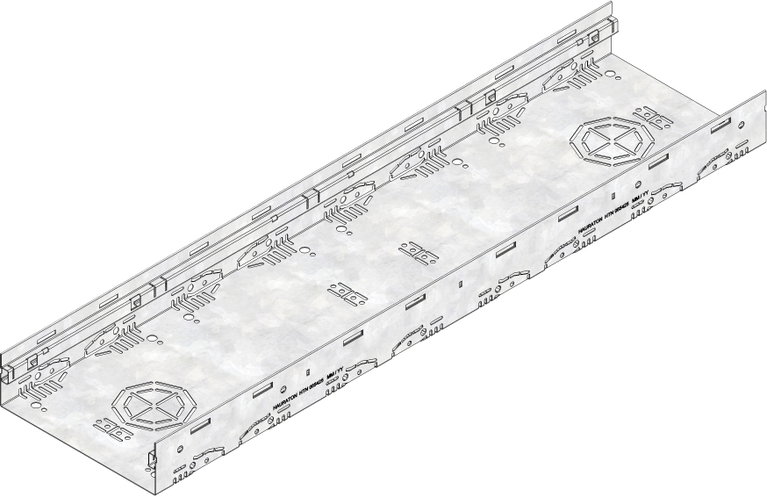

DACHFIX STEEL 255 type 75 - channel body, made of corrosion-protected galvanised steel, pedestrian and wheelchair accessible, grating support tilted inwards, with perforation on the sides and in channel base, with connection possibility in the channel base for pipe connector DN/OD 75 or DN/OD 100 as well as lateral 8-fold connection possibility for cross-intersection channel, with integrated, optional 4-fold fixing anchor, LxWxH 1000x255x75 mm, item no. 65425
Brošura tekst
tip 75
Pakirna enota
104
