Predstavitev proizvoda
Tehnična risba
Risbe
Risba ( DWG)
Data Sheet
Tehnične informacije in mere
Šifra art.
10278
Dolžina
800 mm
Širina
800 mm
Višina
45 mm
Teža
4.60 kg
Prodajno besedilo

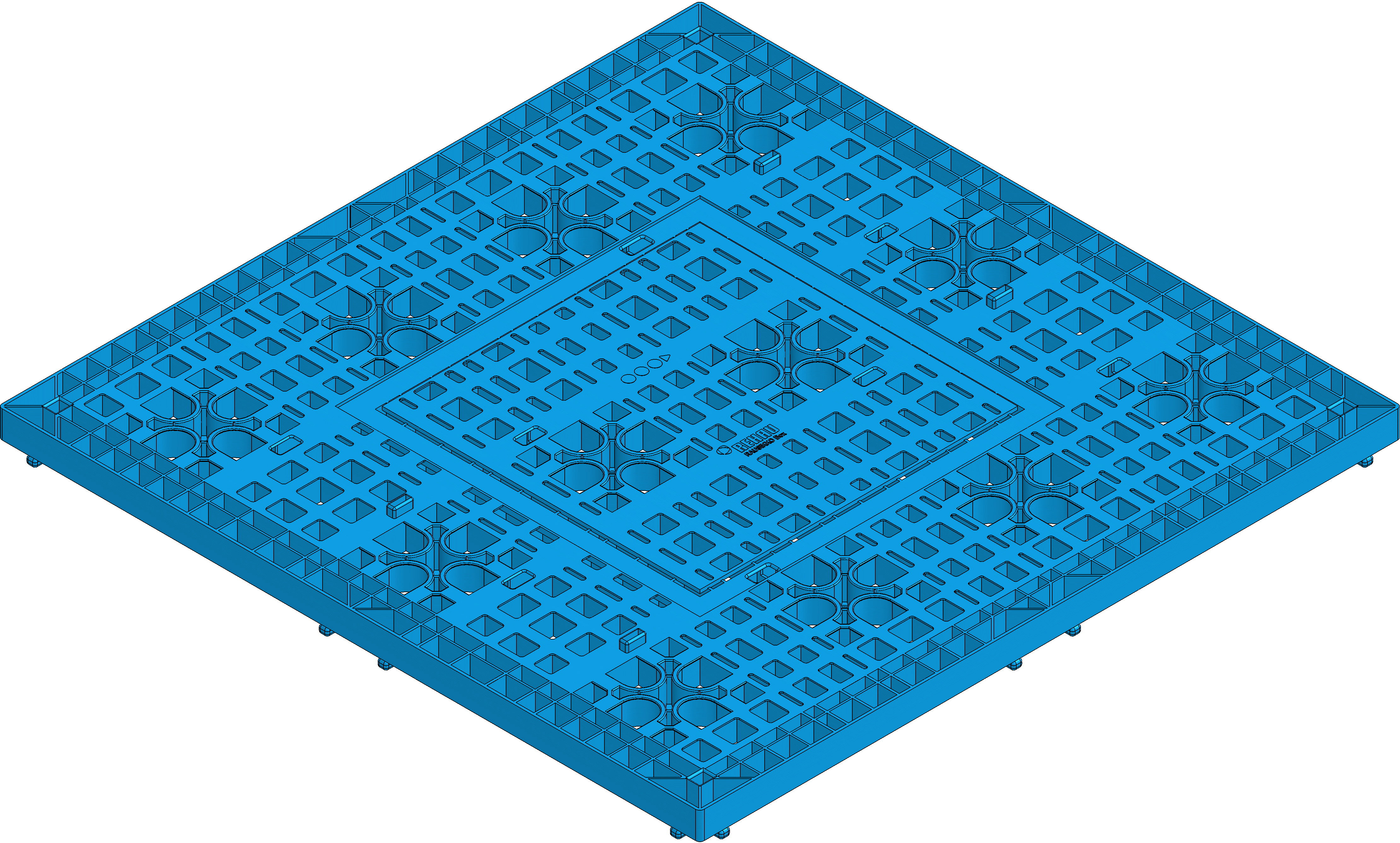

RAUSIKKO Box HX Pokrivna plošča
Opis izdelka
RAUSIKKO BOX HX Cover plate: water-permeable cover plate for closing the top part of infiltration/retention system comprising RAUSIKKO boxes 8.3 HX (installation height 360 mm); fixed to the base element without additional connecting elements; made of high-rigidity polypropylene (PP), colour: blue; load bearing up to Heavy Goods Vehicle HGV 60 with suitable road structure; regulated construction product with approval from the German technical authority (DIBt); verification of load-bearing capacity by type statics; suitable for fire-fighting water storage in accordance with DIN 14230; dimensions: LxWxH approx. 800x800x45 mm; item no. 10278
Brošura tekst
Pokrivna plošča
