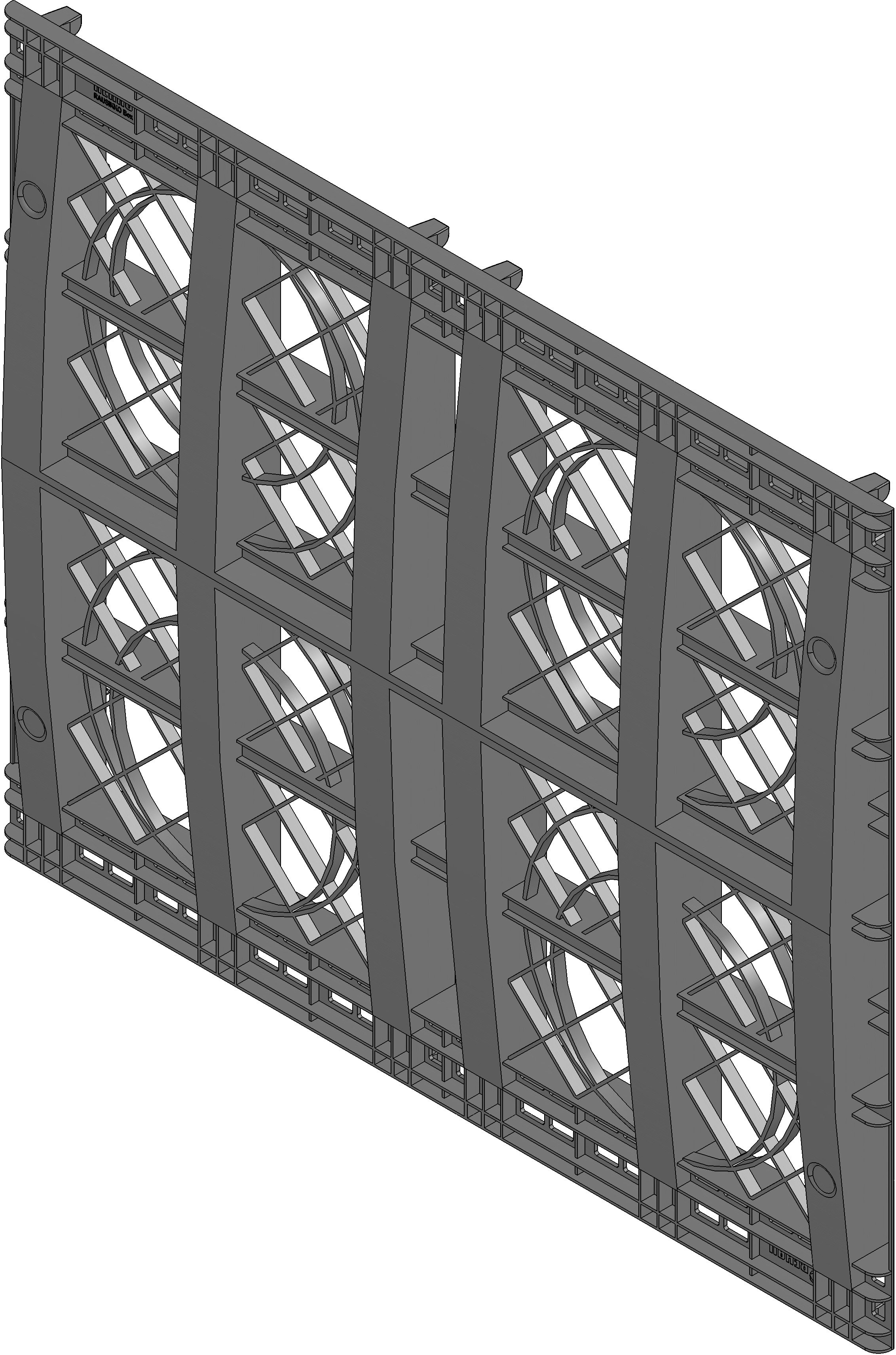

Predstavitev proizvoda
Tehnična risba
Risbe
Risba ( DWG)
Data Sheet
Tehnične informacije in mere
Šifra art.
10268
Dolžina
800 mm
Širina
60 mm
Višina
660 mm
Teža
3.600 kg
Prodajno besedilo
RAUSIKKO Box SX Stranska plošča 8.6
Opis izdelka
RAUSIKKO BOX SX Side panel 8.6: water-permeable cover plate for closing the sides of an infiltration/retention system comprising RAUSIKKO boxes 8.6 SX (installation height 660 mm); with saw-cut matrix for connection of KG spigots DN/OD 200 and 250 as inlet resp. outlet or vent; fixed to the storage element without additional connecting elements; made of high-rigidity polypropylene (PP), colour: black; load bearing up to Heavy Goods Vehicle HGV 60 with suitable road structure; regulated construction product with approval from the German technical authority (DIBt); verification of load-bearing capacity by type statics; suitable for fire-fighting water storage in accordance with DIN 14230; dimensions: LxWxH 800x660x60 mm; item no. 10268
Brošura tekst
Stranska plošča 8.6
