Műszaki információk és mérőszámok
Cikkszám
10267
Hossz
800 mm
Szélesség
800 mm
Magasság
330 mm
Tömeg
9.30 kg
terhelési osztály SLW
SLW 60
Terhelési osztály – felületi terhelés
420 kN/m²
Szikkasztó elem anyag
újrahasznosított, módosított polypropilén
Anyag
újrahasznosított, módosított polypropilén
Értékesítési szöveg

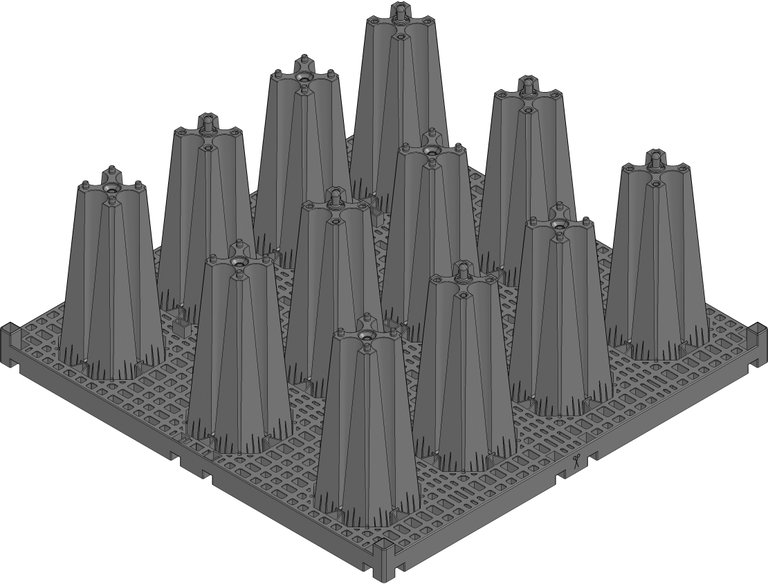

RAUSIKKO SX alap elem
Termékleírás
RAUSIKKO BOX SX Base element: Storage unit according to DIN EN17152-1 for the temporary storage of rainwater; for constructing an infiltration/retention system comprising RAUSIKKO boxes SX; space-saving stacking during transport and storage; multidimensional flow-through; storage capacity 96 %; net storage volume 203 litres per base element; with integrated locking lugs for securing in multi-layer installation; inspectable by drive-through/sliding camera; suitable for high-pressure washing; made of high-rigidity polypropylene (PP); colour: black; load bearing up to Heavy Goods Vehicle HGV 60 with suitable road structure; regulated construction product with approval from the German technical authority (DIBt); verification of short-term strength according to DIN EN 17150 at least 420 kN/m² in multi-layer installation without lateral support with a load-increase rate of 0,5 kN/(m²·s); verification of long-term load-bearing capacity according to DIN EN 17151 for a service life of 50 years; verification of load-bearing capacity by type statics; submission of a verifiable static calculations taking into account the long-term values according to DIN EN 17151 as well as the maximum expected loads (during construction and in final state); verified high pressure flushability up to 120 bar; life cycle analysis verified by life cycle analysis verified by EPD; suitable for fire-fighting water storage in accordance with DIN 14230; dimensions: LxWxH 800x800x330 mm; item no. 10267
Brosúra szöveg
Alap elem
