Šifra art. 10281
RAUSIKKO C3
RAUSIKKO C3 Typ X 8.3 revizijsko vtočni element
Imate vprašanja?
Naša izkušena ekipa za načrtovanje vam bo z veseljem pomagala.
Kontakt

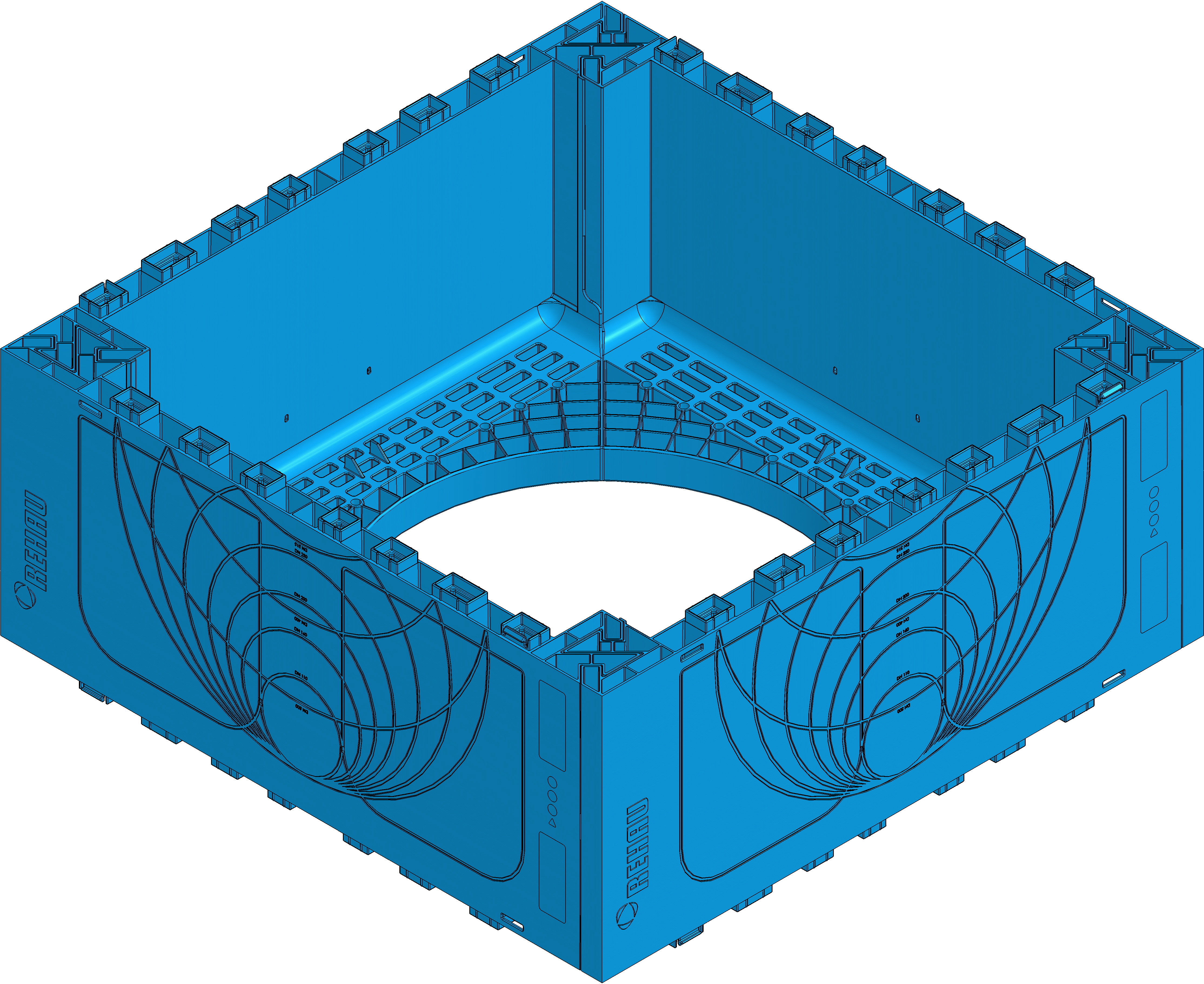

Predstavitev proizvoda
Tehnična risba
Risbe
Risba ( DWG)
Data Sheet
Tehnične informacije in mere
Šifra art.
10281
Dolžina
800 mm
Širina
800 mm
Višina
330 mm
Teža
13.70 kg
Prodajno besedilo
RAUSIKKO C3 Typ X 8.3 revizijsko vtočni element
Opis izdelka
RAUSIKKO C3 type X Stacking element 8.3: Shaft element C3 type X, for connecting/inspection/maintaining/cleaning of RAUSIKKO BOX soakaway/storage system, stackable in multiple layers, colour: blue, material PP, load bearing up to Heavy Goods Vehicle HGV 60 with suitable road structure; regulated construction product with approval from the German technical authority (DIBt), can be planned according to ÖWAV regulation 45; connection possibilities (in all directions): KG DN 110 - DN 250 - channel RAUSIKKO box S/SC/H/HC/SX - front connection spigot DN 200/250 - sand trap as stacking element for C3 type X - 8.6; dimensions: LxWxH 800x800x330mm, installation height 0,33 m; item no. 10281
Brošura tekst
RAUSIKKO C3 Typ X 8.3 revizijsko vtočni element
